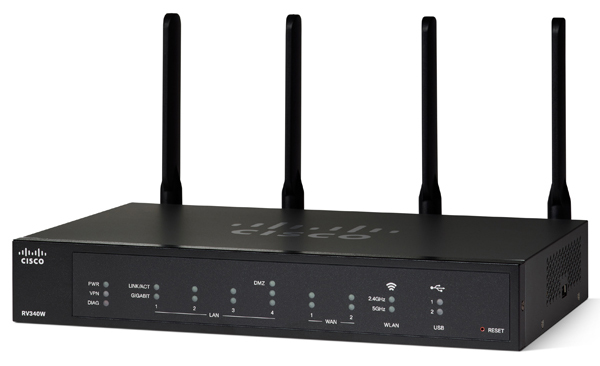

Cisco RV340 Wireless-AC Dual WAN Gigabit VPN Router
Wireless-AC Connectivity with Four RJ-45 Gigabit Ethernet ports
Sorry, this product is no longer available, please contact us for a replacement.
More pricing below, click here!
Today, secure networking is imperative for every business, even the smallest one.
The RV340 Series security router provides business users with advanced connectivity and secure high-speed access for the growing demand and usage of digital services.
The Cisco RV340 Series routers connect small businesses securely to the Internet. The routers protect employees from threats such as viruses, network attacks, unwanted content, and malicious websites. All that without compromising the online experience.
Implementing advanced Unified Threat Management (UTM) features on a high-performing router platform creates one of the most desirable small business connectivity solutions.
Standard are dual WAN ports, business class firewall, and flexible VPN options. Integrated Wi-Fi-5, 16- port LAN switch, and PoE LAN orts are available in model variants.
For cloud-based security, an easy-to-configure Cisco Umbrella™ integration is available.
IT security is a priority for business of all sorts and sizes. With the size of an office or a remote office typically being rather small, IT staff is less likely to be available and offer user support. Any office environment requires the same functionality as the corporate office in terms of security that may include firewall, VPN, IPS, blocking applications and web protection.
The Cisco 340 Series offers comprehensive security and best-in-class performance.
- Firewall: Stateful, scalable, and flexible.
- UTM features (your choice of on prem or in the cloud) — Unified security features provide reliable and highly secure Internet connectivity with cloud application detection and policies.
- Secure connectivity: Flexible VPN functionality with support of Cisco Secure Client (including AnyConnect).
- Hardware-accelerated performance: Dual core ARM-based architecture with embedded hardware-accelerated VPN.
- Dual-WAN with load-balancing and 3G/4G failover brings resiliency and increased bandwidth.
- Partner- or customer-centric single pane-of-glass network management with the integration into FindIT Manager or web UI.
- Automated software updates to keep the firmware current.
The security features include an on-board UTM feature set and a cloud-based Cisco Umbrella integration. These features can be used independently from each other and require a software license. When the Cisco Umbrella integration is activated, the on-board web security is turned off. All other security features will work.
Cisco Umbrella is a cloud-based web security service that delivers automatic protection from malicious or compromised websites, phishing, C2 Callbacks, and malware. With Cisco Umbrella, you gain visibility and enforcement at the DNS layer, so you can block requests to malicious domains and IPs before a connection to your network or endpoints is ever made. And because it’s built into the foundation of the Internet and delivered from the cloud, Umbrella is the simplest security product to deploy and delivers powerful, effective protection. The router integration allows for easy setup, enhanced visibility and reporting, and a small business–friendly branch license for Cisco Umbrella.
The on-board UTM security features include: Intrusion prevention, gateway antivirus, application identification, client identification, on-board web security. These features protect your network from attacks from the Internet and at the same allow for setting policies for corporate usage of the Internet by limiting Internet surfing to appropriate site categories and eliminating unwanted network traffic, hence boosting employee productivity and overall network performance.
To operate the router no license is required. It will work with full performance and all VPN features are turned on.
- The customer can add advanced security features to the router using a license. The license will enable IPS, Antivirus, Web Security, App ID, and Client ID. The licensed security features can be trialed at no cost for 90 days.
- To integrate the router into Cisco Umbrella as a “network device type,” and to have the advantage of detailed security reporting for all hosts behind the router, a Cisco Umbrella license is required. For customers using only the RV routers, an affordable Cisco Umbrella branch license is available.
RV Security License (LS-RV34X-SEC-1YR=)
Enables dynamic web filter, Internet security and Application Visibility, Client Identification, IPS, and Antivirus.
Umbrella RV Branch License (UMB-BRAN-RV)
1-Year Cisco RV-Branch license. Uses Cisco Umbrella Licensing.
Features and Benefits:
- Dual WAN
High resiliency and load balancing for reliable Internet connectivity.
- Integrated switch
4- or 16-port*integrated gigabit switch to connect the devices directly to the router. PoE+* for powering connected phones and access point from the router. (RV340, RV340W: 4 Ports, RV345 16 Ports, RV345P: 16 Ports and PoE)
- Integrated WiFi-5
Provides connectivity for all wireless devices. Wi-Fi-5 allows router to communicate with multiple devices simultaneously, decreases the time each device has to wait for a signal, and dramatically speeds up the wireless network. (RV340W only)
- 3G/4G failover via USB modem
Provides high reliability and connectivity when broadband connection is down.
- Enhanced VPN functionality
Protects employees and their data. Enterprise class, easy to set up. Encrypt all your traffic between sites. Flexible options. IPSec IKEv2, IKev1, Cisco Secure Client (including AnyConnect), L2TP.
- Support for the Cisco Secure Client (including AnyConnect)
Ideal for remote access by mobile devices.
- Dynamic web filtering
Enables business efficiency and security while connecting to the Internet, allows Internet access policies for end devices and Internet applications to help ensure performance and security.
- Client identification
Identifies the type of connected devices and allows setting policies. Application visibility Generates reports of Internet applications being used by clients and allows setting policies.
- Cisco Umbrella integration
The Umbrella integration allows One-Click configuration for Cisco Umbrella cloud-based web security service.
- Intrusion Prevention System (IPS)
Blocking network connections that are determined too risky for the organization.
Antivirus delivers deep extensive protection against all types of viruses.
- Cisco Plug and Play (PnP)
Cloud-based Zero Touch Deployment. Improve operational efficiency with a simple, secure, and integrated method for device onboarding.
- Automatic software download and update
Keeps the router constantly up-to-date without user intervention. Quickest way to mitigate 0-Day vulnerabilities.
|WAN ports||2 RJ-45 Gigabit Ethernet|
|LAN ports||4 RJ-45 Gigabit Ethernet
(LAN 1, 2, 3, 4 and LAN 9, 10, 11, 12 are PoE 802.3at, max 30W per port up to 120W total
|Console/serial||1 RJ-45 port for future use. Port is disabled|
|USB||2 for external 3G/4G modem or flash drive (USB-3, USB-2)|
|Firewall||Stateful packet inspection, up to 980 Mbps throughput for TCP and UDP|
|Quality of Service (QoS)||Traffic Classes, WAN Queuing, WAN Policing, WAN Bandwidth Management, Assign detailed QoS (Class of Service (CoS)/Differentiated Services Code Point (DSCP)/policies) settings per application or end device|
|Web Security||Dynamic web filtering: Cloud based, more than 80 categories, more than 450 million domains classified|
|Application Visibility||Application identification: Assign policies to Internet applications
500 unique Apps
|Client Identification||Identifies and categorizes clients dynamically. Assigns policies based on end device category and operating system.|
|Intrusion Prevention System||IDS/IPS inspects network packets, logs and/or blocks a wide range of network attacks. It delivers increased network availability, faster remediation, and comprehensive threat protection.
|Antivirus||Protection from viruses, trojans, spyware, and identity theft by inspecting traffic going through the router.
|Cisco Umbrella||First line of defense for threats on the Internet. Prevention for user and malware-initiated connections. Protection against Malware, C2 callbacks, and phishing. Proxy inspection for risky domains.|
|IPSec||IKEv1 and IKEv2
50 simultaneous connections (any combination of remote access and site-to-site), up to 650 Mbps throughput
|IPsec remote access||Yes (remote access from any standards-based IPsec client and Cisco IPsec VPN EasyVPN)|
|Layer 2 Tunneling Protocol (L2TP) over IPsec||Yes|
|Generic Routing Encapsulation (GRE) over IPsec||Yes|
|Cisco Secure Client (including AnyConnect)||Maximum 50 SSL VPN tunnels and up to 33Mbps throughput. Also requires Cisco Secure Client (including AnyConnect) end user licenses to use on the end device. Ideal for mobile devices.|
|Point-to-Point Tunneling Protocol (PPTP)||25 connections, up to 100 Mbps throughput|
|Teleworker mode (Cisco IPsec VPN)||Router acts as a client to connect to central VPN gateway in teleworker mode|
|VPN pass-through||IPSec, PPTP, L2TP|
|Management protocols||Web browser (HTTP/HTTPS)
Simple Network Management Protocol (SNMP) v1, v2c, and v3
Representational State Transfer (REST) API
|Management Platform||FindIT Network Manager|
|Firmware upgrade options||Via local PC, USB stick, or from Cisco.com via web browser.
Unattended automatic firmware upgrade.
|VLAN||Up to 32 VLANs|
|Port Security||Yes, 802.1X|
|Link aggregation||Yes (static, no LACP)|
|IPv6||Dual stack, 6rd, 6in4, Dual stack lite|
|WAN||DHCP client, static IP, PPPoE, PPPTP, L2TP, transparent bridge|
|Routing||Static routing, IGMP proxy, Inter-VLAN routing, Routing Information Protocol RIPv1,v2, RIPng|
|Network Address Translation (NAT)||Port Forwarding
Port Address Translation (PAT)
VPN NAT traversal
Session Initiation Protocol (SIP) Application-Level Gateway (ALG), FTP ALG
|NAT max sessions||>40000|
|NAT max connections per second||3000|
|DynDNS||ChangeIP.com, DynDNS.com, No-IP.com, dnsomatic|
|IPv6 transition||Dual Stack|
|Hardware DMZ||Yes (when enabled, one LAN port will be DMZ port)|
|CPU||ARM-based architecture, dual core, hardware flow engine
|RAM||1 GB DDR3|
|Standards||IEEE 802.11ac, 802.11n, 802.11g, 802.11b, 802.11a, 802.1X (security authentication), 802.1Q (VLAN), 802.11i (WPA2 security), 802.11e (wireless QoS)|
|Antennas||4 external fixed paddle antennas (RV340W)|
|Auto channel selection||Yes|
|WPA/WPA2||Yes, including enterprise authentication|
|Access control||Yes, MAC filtering|
|Rouge access point detection||No|
|QoS||Wi-Fi Multimedia (WMM) with unscheduled automatic power save|
|Wireless throughput||PHY data rate:
2.4 GHz: 450 Mbps 964-QAM), 600 Mbps (256-QAM)
5 GHz: 1.7 Gbps (256-QAM), 2.1 Gbps (1024-QAM)
Total: Up to 2.7 Gbps
(real-world throughput will vary)
|Recommended user support||Up to 50 users at 2.4 GHz and 124 users at 5 GHz simultaneously|
|Captive Portal for guest access||Yes|
|Frequency||Dual concurrent radios (2.4 and 5 GHz)|
4x4 MU-MIMO with 4 partial streams at 5GHz
3x3 MIMO with 3 spatial streams at 2.4 GHz
20 MHz, 40 MHz and 80 MHZ channels for 802.11ac
20 MHz and 40 MHz channels for 802.11n
PHY data rate:
2.4 GHz: 450 Mbps (64-QAM), 600 Mbps (256-QAM)
5 GHz: 1.7 Gbps (256-QAM), 2.1 Gbps (1024-QAM)
Total: up to 2.7 Gbps
802.11 Dynamic Frequency Selection (DFS)
MU-MIMO up to 3 clients simultaneously
|Data rates supported||802.11 a/b/g:
|Frequency band and operating channels||A (A regulatory domain):
E (E regulatory domain):
C (C regulatory domain):
|Transmitter output power||2.4 GHz
|Wireless isolation||Wireless isolation between clients|
|Antenna gain in dBi||2.4 GHz: 3 dBi each antenna
5 GHz: 5 dBi each antenna
|Receiver sensitivity||2.4 GHz
|Wireless Distribution System (WDS)||No|
|Dimension||280 x 44 x 315 mm (11 x 1.75 x 12.40 in)|
|Package Dimensions||375 x 505 x 80 mm (14.76 x 19.88 x 3.15 in)|
|Product Weight Device Only||1150 g (2.53 lb)|
|Packaging Weight||2400 g (5.29 lb)|
|Included accessories||Power supply, power cord, Ethernet cable|
|Power Supply||AC 100-240V/1A DC 12V/3A|
|Certification||FCC Class B, CE Class B, UL, cUL, CB, CCC, BSMI, KC, Anatel|
|Operating temperature||0° to 40°C (32° to 104°F)|
|Storage temperature||0° to 70°C (32° to 158°F)|
|Operating humidity||10% to 85% noncondensing|
|Storage humidity||5% to 90% noncondensing|
Download the Cisco RV340, RV345, RV345P, and RV340W Dual WAN Security VPN Router Data Sheet (.PDF)
