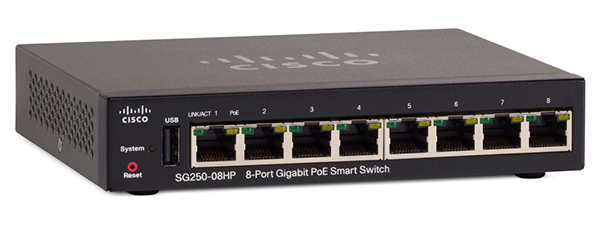

Cisco SG250-08HP
8-Port Gigabit PoE Smart Switch


Cisco 250 Series
Cisco 250 Series Smart Switches
SG250-08HP 8-Port Gigabit PoE
SG250-08HP 8-Port Gigabit PoE Smart
#SG250-08HP-K9-NA
List Price: $332.00
Our Price: $147.25

More pricing below, click here!

Overview:

Build a Reliable, Easy-to-Use Basic Business Network at an Affordable Price

In today's hyperconnected world, reliable access to network resources is critical to all businesses. However, you also need to invest wisely to stay competitive, knowing how to separate the essential from the extraneous and get the most value for your dollar. For investment in network infrastructure, building a solid foundation for your business is essential, but it doesn’t mean you need the most advanced feature set on the market.

For businesses requiring high performance, advanced security, and rich manageability from the network, fully managed switches are an excellent choice. However, they also typically come with high price tags. Smart switches provide the right level of network features and capabilities for growing businesses at a lower price, so you’ll have more dollars to put toward other areas of your business.

With Cisco 250 Series Smart Switches, you can achieve business-class network performance and security without paying for advanced network management features that you will not use. When you need a reliable solution to share online resources and connect computers, phones, and wireless access points, but low cost is a top priority, Cisco 250 Series Smart Switches provide the ideal solution.

The Cisco 250 Series is the next generation of affordable smart switches that combine powerful network performance and reliability with a complete suite of the network features you need for a solid business network. These powerful Fast Ethernet or Gigabit Ethernet switches, with Gigabit or 10 Gigabit Ethernet uplinks, provide multiple management options, sophisticated security capabilities, fine-tuned Quality-of-Service (QoS) and Layer 3 static routing features far beyond those of an unmanaged or consumer-grade switch, at a lower cost than for fully managed switches. And with an easy-to-use web user interface, Smart Network Application, and Power over Ethernet Plus (PoE+) capability, you can deploy and configure a complete business network in minutes.

Business Applications

Whether you need basic, high-speed connectivity for your computers and servers or a comprehensive voice, data, and wireless technology solution, Cisco 250 Series switches can meet your business needs. Possible deployment scenarios include:

  • High-speed desktop connectivity: Cisco 250 Series switches can quickly and securely connect employees working in small offices with one another and with all of the printers, servers, and other devices they use. High performance and reliable connectivity help speed up file transfers and data processing, improve network uptime, and keep your employees productive.
  • Flexible wireless connectivity: Cisco 250 Series switches work with Cisco and third-party wireless solutions to extend the reach of your network. With security features, Power over Ethernet (PoE), VLAN, and QoS, these switches are the perfect foundation to add business-grade wireless to a network. The capability of up to 30W of power per port provided through the Ethernet cable means you can easily deploy innovative 802.11ac wireless technology to maximize workforce productivity.
  • Unified communications: The Cisco 250 Series provides QoS features to enable you to prioritize delay-sensitive traffic in your network and let you converge all of your communications solutions such as IP telephony and video surveillance onto a single Ethernet network. Cisco offers a complete portfolio of IP telephony and other unified communications products designed for small businesses, and Cisco 250 Series switches have been rigorously tested to help ensure easy integration and full compatibility with these and other vendor products.

Features and Benefits:

Cisco 250 Series Smart Switches provide all of the features you need to create a basic business-class network at an affordable price. These features include:

Easy Configuration and Management

Cisco 250 Series switches are designed to be easy to deploy and use by small businesses or the partners that serve them:

  • Smart Network Application (SNA) is an innovative network-level monitoring and management tool embedded in the Cisco 100 to 500 Series switches. It can discover network topology, display link status, monitor events, apply configurations, and upgrade software images across multiple switches in the network.
  • The FindIT Network Manager and Probe are designed to manage Cisco 100 to 500 Series switches, routers, and wireless access points. They let you proactively manage the network instead of just reacting to events. Cisco 250 Series switches support the embedded FindIT Network Probe, eliminating the need to set up a separate hardware or virtual machine on site.
  • The FindIT Network Discovery Utility works through a simple toolbar on the user’s web browser to discover Cisco devices on the network and display basic device information, inventory, and new firmware updates to aid in the configuration and speed the deployment of Cisco Small Business products.
  • Simple or advanced-mode graphic user interfaces reduce the time required to deploy, troubleshoot, and manage the network. Configuration wizards simplify the most common configuration tasks and provide the ultimate tool for anyone to set up and manage the network.
  • Cisco Smartports technology provides more advanced capabilities and hands-on control by automatically configuring ports with specific levels of security, QoS, and availability according to the type of connected device, based on Cisco best practices and pretested configurations. The Auto Smartports feature automatically applies the intelligence delivered through the Smartports roles to the port based on the device types discovered over Cisco Discovery Protocol or LLDP-MED. This capability facilitates zerotouch deployments.
  • The USB port on the front panel of the switch enables easy image and configuration transfer for faster deployment or upgrades.

Performance and Reliability

Cisco 250 Series switches have been tested to deliver the high performance and reliability you would expect from a Cisco switch and help you prevent costly downtime. The switches speed file transfer times, improve slow and sluggish networks, keep your vital business applications available, and help your employees respond more quickly to customers and each other. With a network based on Cisco 250 Series switches, you can address all of your business communications and connectivity needs and reduce the total cost of ownership of your technology infrastructure. Cisco 250 Series switches also support 10 Gigabit Ethernet uplinks on select models, so you can build a high-performance and futureready network to support your thriving business.

Layer 3 static routing

This capability allows you to segment your network into separate workgroups and communicate across VLANs without degrading application performance. As a result, you can manage internal routing with your switches and dedicate your router to external traffic and security, helping your network run more efficiently.

Power over Ethernet Plus (PoE+)

Cisco 250 Series switches are available with PoE+ on both Fast Ethernet and Gigabit Ethernet models. This capability simplifies the deployment of IP telephony, wireless, video surveillance, and other solutions by allowing you to send data and power to network endpoints over the single network cable, eliminating the need for separate power supplies or outlets. PoE+ provides up to 30W of power per port, enabling deployments for 802.11ac wireless access points, Pan-Tilt-Zoom (PTZ) IP cameras, videophones, and thin client devices, delivering more flexibility and investment protection.

PoE powered device and PoE pass-through

The 10-port compact models of Cisco 250 Series can work as PoE powered devices and draw power from upstream PoE switches in the wiring closet, simplifying the deployment in meeting rooms, classrooms, hotel rooms, and other flexible locations. Each switch can accept up to 60W of power per uplink port to power itself and pass through the power to the downstream PoE end devices if needed.

Network Security

Cisco 250 Series switches provide the security and network management features you need to maintain a high level of security for your business, keep unauthorized users off the network, and protect your business data. The switches include integrated network security to reduce the risk of a security breach, with IEEE 802.1X port security to control access to your network, Denial-of-Service (DoS) attack prevention to increase network uptime during an attack, and extensive Access Control Lists (ACLs) to protect sensitive portions of the network from unauthorized users and guard against network attacks.

IPv6 support

As the IP network addressing scheme evolves to accommodate more devices, you can have peace of mind that your network is ready. Cisco 250 Series switches provide native support for IPv6 alongside traditional IPv4. With USGv6 and IPv6 Gold Logo certifications, the 250 Series will enable you to take full advantage of IPv6-enabled operating systems and applications in the future, without having to upgrade your network equipment.

IP Telephony Support

Cisco 250 Series switches include QoS features to prioritize delay-sensitive services such as voice and video, simplify unified communications deployments, and help ensure consistent network performance for all services.

Networkwide Automatic Voice Deployment

Using a combination of Cisco Discovery Protocol, LLDPMED, Auto Smartports, and Voice Services Discovery Protocol (VSDP, a unique, patented Cisco protocol), customers can deploy an end-to-end voice network dynamically. The switches in the network automatically converge into a single voice VLAN and set of QoS parameters and then propagate them out to the phones on the ports where they are discovered. For example, automated voice VLAN capabilities let you plug any IP phone (including third-party phones) into your IP telephony network and receive an immediate dial tone. The switch automatically configures the device with the right VLAN and QoS parameters to prioritize voice traffic.

An Energy-Efficient Solution

Cisco 250 Series switches are designed to be energy efficient and eco friendly without compromising performance. They help conserve energy by optimizing power use, which helps protect the environment and lowers your energy costs. Power-saving features include:

  • Support for the Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption by monitoring the amount of traffic on an active link and putting the link into a sleep state during quiet periods
  • Automatic power shutoff on ports when a link is down
  • Embedded intelligence to adjust power based on cable length
  • Fanless design in most models, which reduces power consumption, increases reliability, and provides quieter operation
  • Ability to turn off LEDs to conserve power

Expansion Ports

The Cisco 250 Series provides more ports per switch than traditional switch models, giving you more flexibility to connect and empower your business. Gigabit Ethernet models feature 26- and 50-port switches, versus traditional devices that offer 20 or 44 ports with 4 shared ports. Fast Ethernet models are now available with 4 Gigabit ports for even more flexibility in deployment. The Cisco 250 Series also offers small form-factor pluggable (SFP) expansion slots that give you the option to add fiber optic or Gigabit Ethernet uplink connectivity to the switch. With the ability to increase the connectivity range of the switches, you have more flexibility to design your network around your unique business environment and to easily connect switches on different floors or across the business.

Peace of Mind and Investment Protection

Cisco 250 Series switches offer the reliable performance, investment protection, and peace of mind you expect from a Cisco switch. When you invest in the Cisco 250 Series, you gain the benefits of:

  • Cisco limited lifetime warranty to protect your investment
  • Rigorous testing to help ensure easy integration and compatibility with other Cisco networking and communications products, including the complete Cisco Small Business portfolio

Cisco Limited Lifetime Hardware Warranty

The Cisco 250 Series switches come with the Cisco limited lifetime hardware warranty, with return-to-factory replacement, software updates for bug fixes for the warranty term, and 1-year limited warranty for fans and power supplies. In addition, Cisco offers telephone technical support at no charge for the first 12 months following the date of purchase.

World-Class Service and Support

To extend the support coverage beyond the warranty provisions, choose Cisco Smart Net Total Care, which helps you get the most value from Cisco Small Business solutions, providing peace of mind at an affordable price. Cisco Smart Net Total Care provides a single service platform for all Cisco networking products. With global coverage, flexible contract terms, and multiple advance hardware replacement options, this comprehensive service includes software upgrades, access to the Cisco Small Business Support Center, and extended telephone and online chat support.

Multiple language options

The Cisco 250 Series switches are available in multiple languages. Product documentation and user interfaces are translated, giving you the ability to select your preferred language.

Technical Specifications:


Cisco 250 Series Specifications
Performance
Switching capacity and forwarding rate
All switches are wire-speed and nonblocking
Product Name Capacity in millions of packets per second (mpps) (64-byte packets) Switching capacity in gigabits per second (Gbps)
SF250-24 9.52 12.8
SF250-24HP 9.52 12.8
SF250-48 13.10 17.6
SF250-48HP 13.10 17.6
SG250-08 11.90 16.0
SG250-08HP 11.90 16.0
SG250-10P 14.88 20.0
SG250-18 26.78 36.0
SG250-26 38.69 52.0
SG250-26HP 38.69 52.0
SG250-26P 38.69 52.0
SG250-50 74.41 100.00
SG250-50HP 74.41 100.00
SF250-50P 74.41 100.00
SG250X-24 95.23 128.0
SG250X-24P 95.23 128.0
SG250X-48 130.94 176.0
SG250X-48P 130.94 176.0
Layer 2 Switching
Spanning Tree Protocol
  • Standard 802.1d spanning tree support
  • Fast convergence using 802.1w (Rapid Spanning Tree Protocol [RSTP]), enabled by default
  • Multiple spanning tree instances using 802.1s (MSTP); 8 instances are supported
Port grouping/link aggregation
  • Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP)
    • Up to 4 groups
    • Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad LAG
VLAN
  • Support for up to 256 active VLANs simultaneously
  • Port-based and 802.1Q tag-based VLANs
  • Management VLAN
  • Guest VLAN
Voice VLAN

Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS. Auto voice capabilities deliver network-wide zero touch deployment of voice endpoints and call control devices.

Generic VLAN Registration Protocol (GVRP) and Generic Attribute Registration Protocol (GARP) Protocols for automatically propagating and configuring VLANs in a bridged domain
IGMP (versions 1, 2, and 3) snooping Internet Group Management Protocol (IGMP) limits bandwidth-intensive multicast traffic to only the requesters; supports 1K multicast groups (source-specific multicasting is also supported)
IGMP querier Used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router
HOL blocking Head-of-line (HOL) blocking
Loopback detection Provides protection against loops by transmitting loop protocol packets out of ports on which loop protection has been enabled. It operates independently of STP
Layer 3 routing
IPv4 routing Wire-speed routing of IPv4 packets
Up to 32 static routes and up to 16 IP interfaces
IPv6 routing Wire-speed routing of IPv6 packets
Layer 3 interface Configuration of Layer 3 interface on physical port, LAG, VLAN interface, or loopback interface
Classless Interdomain Routing (CIDR) Support for CIDR
DHCP relay at Layer 3 Relay of DHCP traffic across IP domains
User Datagram Protocol (UDP) relay Relay of broadcast information across Layer 3 domains for application discovery or relaying of bootP/DHCP packets
Security
Secure Sockets Layer (SSL) Secure Sockets Layer (SSL) encrypts all HTTPS traffic, allowing secure access to the browser-based management GUI in the switch
Secure Shell (SSH) Protocol SSH is a secure replacement for Telnet traffic. Secure Copy (SCP) also uses SSH. SSH v1 and v2 are supported
IEEE 802.1X (Authenticator role) RADIUS authentication, guest VLAN, single/multiple host mode, and single/multiple sessions
Secure Core Technology (SCT) Ensures that the switch will receive and process management and protocol traffic no matter how much traffic is received
Secure Sensitive Data (SSD) A mechanism to manage sensitive data (such as passwords, keys, and so on) securely on the switch, populating this data to other devices, and secure autoconfig. Access to view the sensitive data as plaintext or encrypted is provided according to the user-configured access level and the access method of the user
Port security Ability to lock source MAC addresses to ports and limit the number of learned MAC addresses.
RADIUS Supports RADIUS authentication for management access. Switch functions as a client.
Storm control Broadcast, multicast, and unknown unicast.
DoS prevention Denial-of-service (DOS) attack prevention
Access Control Lists (ACLs) Support for up to 512 rules
Drop or rate limit based on source and destination MAC, VLAN ID or IP address, protocol, port, differentiated services code point (DSCP)/IP precedence, TCP/UDP source and destination ports, 802.1p priority, Ethernet type, Internet Control Message Protocol (ICMP) packets, IGMP packets, TCP flag
STP loopback guard Provides additional protection against Layer 2 forwarding loops (STP loops)
Quality of Service
Priority levels

8 hardware queues

Scheduling Strict priority and Weighted Round-Robin (WRR) queue assignment based on DSCP and class of service (802.1p/CoS)
Class of service Port based; 802.1p VLAN priority based; IPv4/v6 IP precedence/Type of Service (ToS)/DSCP based; Differentiated Services (DiffServ); classification and re-marking ACLs, trusted QoS
Rate limiting Ingress policer; egress shaping and rate control; per VLAN, per port, and flow based
Congestion avoidance A TCP congestion avoidance algorithm is required to reduce and prevent global TCP loss synchronization
Standards
Standards IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3ad Link Aggregation Control Protocol, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, IEEE 802.3 ad LACP, IEEE 802.1D (STP), IEEE 802.1Q/p VLAN, IEEE 802.1w RSTP, IEEE 802.1s Multiple STP, IEEE 802.1X Port Access Authentication, IEEE 802.3af, IEEE 802.3at, RFC 768, RFC 783, RFC 791, RFC 792, RFC 793, RFC 813, RFC 879, RFC 896, RFC 826, RFC 854, RFC 855, RFC 856, RFC 858, RFC 894, RFC 919, RFC 920, RFC 922, RFC 950, RFC 951, RFC 1042, RFC 1071, RFC 1123, RFC 1141, RFC 1155, RFC 1157, RFC 1213, RFC 1215, RFC 1286, RFC 1350, RFC 1442, RFC 1451, RFC 1493, RFC 1533, RFC 1541, RFC 1542, RFC 1573, RFC 1624, RFC 1643, RFC 1700, RFC 1757, RFC 1867, RFC 1907, RFC 2011, RFC 2012, RFC 2013, RFC 2030, RFC 2131, RFC 2132, RFC 2233, RFC 2576, RFC 2616, RFC 2618, RFC 2665, RFC 2666, RFC 2674, RFC 2737, RFC 2819, RFC 2863, RFC 3164, RFC 3411, RFC 3412, RFC 3413, RFC 3414, RFC 3415, RFC 3416, RFC 4330
IPv6
IPv6
  • IPv6 host mode
  • IPv6 over Ethernet
  • Dual IPv6/IPv4 stack
  • IPv6 neighbor and router discovery (ND)
  • IPv6 stateless address autoconfiguration
  • Path maximum transmission unit (MTU) discovery
  • Duplicate address detection (DAD)
  • Internet Control Message Protocol (ICMP) version 6
  • IPv6 over IPv4 network with Intrasite Automatic Tunnel Addressing Protocol (ISATAP) support
  • USGv6 and IPv6 Gold Logo certified
IPv6 QoS Prioritize IPv6 packets in hardware
IPv6 ACL Drop or rate limit IPv6 packets in hardware
Multicast Listener Discovery (MLD v1/2) snooping Deliver IPv6 multicast packets only to the required receivers
IPv6 applications Web/SSL, Telnet server/SSH, Ping, Traceroute, Simple Network Time Protocol (SNTP), Trivial File Transfer Protocol (TFTP), Simple Network Management Protocol (SNMP), Remote Authentication Dial-In User Service (RADIUS), Syslog, DNS client, DHCP client, DHCP autoconfig
IPv6 RFC supported RFC 4443 (which obsoletes RFC 2463) - ICMPv6
RFC 4291 (which obsoletes RFC 3513) - IPv6 Address Architecture
RFC 4291 - IP Version 6 Addressing Architecture
RFC 2460 - IPv6 Specification
RFC 4861 (which obsoletes RFC 2461) - Neighbor Discovery for IPv6
RFC 4862 (which obsoletes RFC 2462) - IPv6 Stateless Address Auto-configuration
RFC 1981 - Path MTU Discovery
RFC 4007 - IPv6 Scoped Address Architecture
RFC 3484 - Default address selection mechanism
RFC 5214 (which obsoletes RFC 4214) - ISATAP tunneling
RFC 4293 - MIB IPv6: Textual Conventions and General Group
RFC 3595 - Textual Conventions for IPv6 Flow Label
Management
Web user interface Built-in switch configuration utility for easy browser-based device configuration (HTTP/HTTPS). Supports configuration, wizards, system dashboard, system maintenance, and monitoring
Basic and advanced mode for maximum operational efficiency
Smart Network Application (SNA) An innovative network-level monitoring and management tool embedded in Cisco 250 to 550X Series switches. It can discover network topology, display link status, monitor events, apply configurations, and upgrade software images across multiple switches in the network
SNMP SNMP versions 1, 2c, and 3 with support for traps, and SNMP v3 User-based Security Model (USM)
Standard MIBs lldp-MIB
lldpextdot1-MIB
lldpextdot3-MIB
lldpextmed-MIB
rfc2674-MIB
rfc2575-MIB
rfc2573-MIB
rfc2233-MIB
rfc2013-MIB
rfc2012-MIB
rfc2011-MIB
RFC-1212
RFC-1215
SNMPv2-CONF
SNMPv2-TC
p-bridge-MIB
q-bridge-MIB
rfc1389-MIB
rfc1493-MIB
rfc1611-MIB
rfc1612-MIB
rfc1850-MIB
rfc1907-MIB
rfc2571-MIB
rfc2572-MIB
rfc2574-MIB
rfc2576-MIB
rfc2613-MIB
rfc2665-MIB
rfc2668-MIB
rfc2737-MIB
rfc2925-MIB
rfc3621-MIB
rfc4668-MIB
rfc4670-MIB
trunk-MIB
tunnel-MIB
udp-MIB
draft-ietf-bridge-8021x-MIB
draft-ietf-bridge-rstpmib-04-MIB
draft-ietf-hubmib-etherif-mib-v3-00-MIB
draft-ietf-syslog-device-MIB
ianaaddrfamnumbers-MIB
ianaifty-MIB
ianaprot-MIB
inet-address-MIB
ip-forward-MIB
ip-MIB
RFC1155-SMI
RFC1213-MIB
SNMPv2-MIB
SNMPv2-SMI
SNMPv2-TM
RMON-MIB
rfc1724-MIB
dcb-raj-DCBX-MIB-1108-MIB
rfc1213-MIB
rfc1757-MIB
Private MIBs CISCOSB-lldp-MIB
CISCOSB-brgmulticast-MIB
CISCOSB-bridgemibobjects-MIB
CISCOSB-bonjour-MIB
CISCOSB-dhcpcl-MIB
CISCOSB-MIB
CISCOSB-wrandomtaildrop-MIB
CISCOSB-traceroute-MIB
CISCOSB-telnet-MIB
CISCOSB-stormctrl-MIB
CISCOSBssh-MIB
CISCOSB-socket-MIB
CISCOSB-sntp-MIB
CISCOSB-smon-MIB
CISCOSB-phy-MIB
CISCOSB-multisessionterminal-MIB
CISCOSB-mri-MIB
CISCOSB-jumboframes-MIB
CISCOSB-gvrp-MIB
CISCOSB-endofmib-MIB
CISCOSB-dot1x-MIB
CISCOSB-deviceparams-MIB
CISCOSB-cli-MIB
CISCOSB-cdb-MIB
CISCOSB-brgmacswitch-MIB
CISCOSB-3sw2swtables-MIB
CISCOSB-smartPorts-MIB
CISCOSB-tbi-MIB
CISCOSB-macbaseprio-MIB
CISCOSB-env_mib-MIB
CISCOSB-policy-MIB
CISCOSB-sensor-MIB
CISCOSB-aaa-MIB
CISCOSB-application-MIB
CISCOSB-bridgesecurity-MIB
CISCOSB-copy-MIB
CISCOSB-CpuCounters-MIB
CISCOSB-Custom1BonjourService-MIB
CISCOSB-dhcp-MIB
CISCOSB-dlf-MIB
CISCOSB-dnscl-MIB
CISCOSB-embweb-MIB
CISCOSB-fft-MIB
CISCOSB-file-MIB
CISCOSB-greeneth-MIB
CISCOSB-greeneth-MIB
CISCOSB-interfaces-MIB
CISCOSB-interfaces_recovery-MIB
CISCOSB-ip-MIB
CISCOSB-iprouter-MIB
CISCOSB-ipv6-MIB
CISCOSB-mnginf-MIB
CISCOSB-lcli-MIB
CISCOSB-localization-MIB
CISCOSB-mcmngr-MIB
CISCOSB-mng-MIB
CISCOSB-physdescription-MIB
CISCOSB-PoE-MIB
CISCOSB-protectedport-MIB
CISCOSB-rmon-MIB
CISCOSB-rs232-MIB
CISCOSB-SecuritySuite-MIB
CISCOSB-snmp-MIB
CISCOSB-specialbpdu-MIB
CISCOSB-banner-MIB
CISCOSB-syslog-MIB
CISCOSB-TcpSession-MIB
CISCOSB-traps-MIB
CISCOSB-trunk-MIB
CISCOSB-tuning-MIB
CISCOSB-tunnel-MIB
CISCOSB-udp-MIB
CISCOSB-vlan-MIB
CISCOSB-ipstdacl-MIB
CISCOSB-eee-MIB
CISCOSB-ssl-MIB
CISCOSB-digitalkeymanage-MIB
CISCOSB-qosclimib-MIB
CISCOSB-digitalkeymanage-MIB
CISCOSB-tbp-MIB
CISCOSMB-MIB
CISCOSB-secsd-MIB
CISCOSB-draft-ietf-entmib-sensor-MIB
CISCOSB-draft-ietf-syslog-device-MIB
CISCOSB-rfc2925-MIB
CISCO-SMI-MIB
CISCOSB-DebugCapabilities-MIB
CISCOSB-CDP-MIB
CISCOSB-vlanVoice-MIB
CISCOSB-EVENTS-MIB
CISCOSB-sysmng-MIB
CISCOSB-sct-MIB
CISCO-TC-MIB
CISCO-VTP-MIB
CISCO-CDP-MIB
Remote monitoring (RMON) Embedded RMON software agent supports 4 RMON groups (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis
IPv4 and IPv6 Dual Stack Coexistence of both protocol stacks to ease migration
Firmware upgrade Web browser upgrade (HTTP/HTTPS) and TFTP and upgrade over SCP running over SSH
Dual images for resilient firmware upgrades
Port mirroring Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to 4 source ports can be mirrored to one destination port
VLAN mirroring Traffic from a VLAN can be mirrored to a port for analysis with a network analyzer or RMON probe. Up to 4 source VLANs can be mirrored to one destination port.
DHCP (Options 12, 66, 67, 82, 129, and 150) DHCP options facilitate tighter control from a central point (DHCP server), to obtain IP address, autoconfiguration (with configuration file download), DHCP Relay, and host name
Secure Copy (SCP) Securely transfers files to and from the switch
Autoconfiguration with SCP file download Enables mass deployment with protection of sensitive data
Text-editable config Config files can be edited with a text editor and downloaded to another switch, facilitating easier mass deployment
Smartports Simplified configuration of QoS and security capabilities
Auto Smartports Automatically applies the intelligence delivered through the Smartports roles to the port based on the devices discovered over Cisco Discovery Protocol or LLDP-MED. This facilitates zero-touch deployments
Textview Command-Line Interface (CLI) Scriptable CLI. A full CLI as well as a menu-based CLI is supported. User privilege levels 1, 7, and 15 are supported for the CLI
Cloud services Support for Cisco FindIT Network Manager and Cisco Active Advisor
Embedded FindIT Network Probe Support for embedded FindIT Network Probe running on the switch. Eliminates the need to set up a separate hardware or virtual machine for the FindIT Network Probe on site
Cisco Network Plug and Play (PnP) agent The Cisco Network Plug and Play solution provides a simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or for provisioning updates to an existing network. The solution provides a unified approach to provision Cisco routers, switches, and wireless devices with a near-zero-touch deployment experience
Localization Localization of GUI and documentation into multiple languages
Login banner Configurable multiple banners for web as well as CLI
Other management Traceroute; single IP management; HTTP/HTTPS; RADIUS; port mirroring; TFTP upgrade; DHCP client; Simple Network Time Protocol (SNTP); cable diagnostics; Ping; syslog; Telnet client (SSH secure support); automatic time settings from Management Station
Green (power efficiency)
Energy Detect Automatically turns power off on RJ-45 port when detecting link down. Active mode is resumed without loss of any packets when the switch detects the link is up.
Cable length detection Adjusts the signal strength based on the cable length. Reduces the power consumption for shorter cables.
EEE compliant (802.3az) Supports IEEE 802.3az on all copper Gigabit Ethernet ports.
Disable port LEDs LEDs can be manually turned off to save on energy.
Time-based port operation Link up or down based on user-defined schedule (when the port is administratively up)
Time-based PoE PoE power can be on or off based on user-defined schedule to save energy
General
Jumbo frames Frame sizes up to 9K bytes. The default MTU is 2K bytes.
MAC table 8K addresses.
Discovery
Bonjour The switch advertises itself using the Bonjour protocol.
Link Layer Discovery Protocol (LLDP) (802.1ab) with LLDPMED extensions Link Layer Discovery Protocol (LLDP) allows the switch to advertise its identification, configuration, and capabilities to neighboring devices that store the data in a MIB. LLDP-MED is an enhancement to LLDP that adds the extensions needed for IP phones.
Cisco Discovery Protocol (CDP) The switch advertises itself using the Cisco Discovery Protocol. It also learns the connected device and its characteristics using Cisco Discovery Protocol.
Ports
Model Name Total System Ports RJ-45 Ports Combo Ports (RJ-45 + SFP)
SF250-24 24 Fast Ethernet + 2 Gigabit Ethernet 24 Fast Ethernet 2 Gigabit Ethernet combo + 2 SFP
SF250-24P 24 Fast Ethernet + 2 Gigabit Ethernet 24 Fast Ethernet 2 Gigabit Ethernet combo + 2 SFP
SF250-48 48 Fast Ethernet + 2 Gigabit Ethernet 48 Fast Ethernet 2 Gigabit Ethernet combo + 2 SFP
SF250-48HP 48 Fast Ethernet + 2 Gigabit Ethernet 48 Fast Ethernet 2 Gigabit Ethernet combo + 2 SFP
SG250-08 10 Gigabit Ethernet 8 Gigabit Ethernet
SG250-08HP 10 Gigabit Ethernet 8 Gigabit Ethernet
SG250-10P 10 Gigabit Ethernet 8 Gigabit Ethernet 2 Gigabit Ethernet combo
SG250-18 18 Gigabit Ethernet 16 Gigabit Ethernet 2 Gigabit Ethernet combo
SG250-26 26 Gigabit Ethernet 24 Gigabit Ethernet 2 Gigabit Ethernet combo
SG250-26HP 26 Gigabit Ethernet 24 Gigabit Ethernet 2 Gigabit Ethernet combo
SG250-26P 26 Gigabit Ethernet 24 Gigabit Ethernet 2 Gigabit Ethernet combo
SG250-50 50 Gigabit Ethernet 48 Gigabit Ethernet 2 Gigabit Ethernet combo
SG250-50HP 50 Gigabit Ethernet 48 Gigabit Ethernet 2 Gigabit Ethernet combo
SG250-50P 50 Gigabit Ethernet 48 Gigabit Ethernet 2 Gigabit Ethernet combo
SG250X-24 24 Gigabit Ethernet + 4 10 Gigabit Ethernet 24 Gigabit Ethernet 2 10 Gigabit Ethernet copper + 2 SFP+
SG250X-24P 24 Gigabit Ethernet + 4 10 Gigabit Ethernet 24 Gigabit Ethernet 2 10 Gigabit Ethernet copper + 2 SFP+
SG250X-48 48 Gigabit Ethernet + 4 10 Gigabit Ethernet 48 Gigabit Ethernet 2 10 Gigabit Ethernet copper + 2 SFP+
SG250X-48P 48 Gigabit Ethernet + 4 10 Gigabit Ethernet 48 Gigabit Ethernet 2 10 Gigabit Ethernet copper + 2 SFP+
Product Specifications
USB slot USB Type-A slot on the front panel of the switch for easy file and image management
Buttons Reset button
Cabling type Unshielded twisted pair (UTP) Category 5 or better for 10BASE-T/100BASE-TX; UTP Category 5e or better for 1000BASE-T
LEDs System, Link/Act, PoE, Speed
Flash 256 MB
CPU 800 MHz ARM
CPU memory 512 MB
Package contents
  • Cisco 250 Series Smart Switch
  • Power cord (power adapter for 8-port and 10-port SKUs)
  • Mounting kit
  • Quick Start Guide
Minimum requirements
  • Web browser: Mozilla Firefox version 36 or later; Microsoft Internet Explorer version 9 or later, Chrome version 40 or later, Safari version 5 or later
  • Category 5 Ethernet network cable
  • TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed
Packet buffer
All numbers are aggregate across all ports, as the buffers are dynamically shared:
Model Name Packet Buffer
SF250-24 12Mb
SF250-24P 12Mb
SF250-48 24Mb
SF250-48HP 24Mb
SG250-08 12Mb
SG250-08HP 12Mb
SG250-10P 12Mb
SG250-18 12Mb
SG250-26 12Mb
SG250-26HP 12Mb
SG250-26P 12Mb
SG250-50 24Mb
SG250-50HP 24Mb
SG250-50P 24Mb
SG250X-24 12Mb
SG250X-24P 12Mb
SG250X-48 24Mb
SG250X-48P 24Mb
Supported SFP/SFP+ Modules
SKU Media Speed Maximum Distance
MGBBX1 Single-mode fiber 100 Mbps 10 km
MGBSX1 Multimode fiber 100 Mbps 500 km
MGBLH1 Single-mode fiber 100 Mbps 40 km
MGBLX1 Single-mode fiber 100 Mbps 10 km
MGBT1 UTP cat 5 100 Mbps 100 m
GLC-LH-SMD= Single-mode fiber 100 Mbps 10 km
GLC-BX-U= Single-mode fiber 100 Mbps 10 km
SFP-H10GB-CU1M Copper coax 10 Gig 1 m
SFP-H10GB-CU3M Copper coax 10 Gig 3 m
SFP-H10GB-CU5M Copper coax 10 Gig 5 m
SFP-10G-SR Multimode fiber 10 Gig 26 m - 400 m
SFP-10G-LR Single-mode fiber 10 Gig 10 km
SFP-10G-SR-S Multimode fiber 10 Gig 26 m - 400 m
SFP-10G-LR-S Single-mode fiber 10 Gig 10 km
Environmental
Power
  • 100 to 240V 50 to 60 Hz, internal, universal: SF250-24, SF250-24P, SF250-48, SF250-48HP, SG250-26, SG250-26HP, SG250-26P, SG250-50, SG250-50HP, SG250-50P, SG250X-24, SG250X-24P, SG250X-48, SG250X-48P
  • 100 to 240V 50 to 60 Hz, external: SG250-08, SG250-08HP, SG250-10P
Certification UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Operating temperature 32° to 122°F (0° to 50°C)
Storage temperature -4° to 158°F (-20° to 70°C)
Operating humidity 10% to 90%, relative, noncondensing
Storage humidity 10% to 90%, relative, noncondensing
Unit Dimensions (W x H x D)
SF250-24 440 x 44 x 202 mm (17.3 x 1.45 x 7.95 in)
SF250-24P 440 x 44 x 257 mm (17.3 x 1.45 x 10.12 in)
SF250-48 440 x 44 x 257 mm (17.3 x 1.45 x 10.12 in)
SF250-48HP 440 x 44 x 350 mm (17.3 x 1.45 x 13.78 in)
SG250-08 160 x 30 x 128 mm (6.3 x 1.18 x 5.04 in)
SG250-08HP 160 x 30 x 128 mm (6.3 x 1.18 x 5.04 in)
SG250-10P 280 x 44 x 170 mm (11.0 x 1.45 x 6.69 in)
SG250-18 440 x 44 x 202 mm (17.3 x 1.45 x 7.95 in)
SG250-26 440 x 44 x 202 mm (17.3 x 1.45 x 7.95 in)
SG250-26HP 440 x 44 x 257 mm (17.3 x 1.45 x 10.12 in)
SG250-26P 440 x 44 x 257 mm (17.3 x 1.45 x 10.12 in)
SG250-50 440 x 44 x 257 mm (17.3 x 1.45 x 10.12 in)
SG250-50HP 440 x 44 x 350 mm (17.3 x 1.45 x 13.78 in)
SG250-50P 440 x 44 x 350 mm (17.3 x 1.45 x 13.78 in)
SG250X-24 440 x 44 x 257 mm (17.3 x 1.45 x 10.12 in)
SG250X-24P 440 x 44 x 257 mm (17.3 x 1.45 x 10.12 in)
SG250X-48 440 x 44 x 257 mm (17.3 x 1.45 x 10.12 in)
SG250X-48P 440 x 44 x 350 mm (17.3 x 1.45 x 13.78 in)
Unit weight
SF250-24 2.72 kg (6 lb)
SF250-24P 4.1 kg (9.04 lb)
SF250-48 3.57 kg (7.87 lb)
SF250-48HP 4.93 kg (10.87 lb)
SG250-08 0.54 kg (1.19 lb)
SG250-08HP 0.56 kg (1.23 lb)
SG250-10P 1.2 kg (2.65 lb)
SG250-18 2.08 kg (4.59 lb)
SG250-26 2.72 kg (6.0 lb)
SG250-26HP 3.37 kg (7.43 lb)
SG250-26P 3.81 kg (8.40 lb)
SG250-50 2.94 kg (6.48 lb)
SG250-50HP 4.8 kg (10.58 lb)
SG250-50P 4.82 kg (10.63 lb)
SG250X-24 2.66 kg (5.86 lb)
SG250X-24P 3.86 kg (8.51 lb)
SG250X-48 3 kg (6.61 lb)
SG250X-48P 4.84 kg (10.67 lb)
Acoustic noise and mean time between failures (MTBF)
Model Name Fan (Number) Acoustic Noise MTBF at 50°C (hours)
SF250-24 No fan 630,719
SF250-24P 2 0° to 25°C: 39.7dB
50°C: 52.2dB
314,040
SF250-48 No fan 256,281
SF250-48HP 2 0° to 30°C: 38.0dB
50°C: 52.7dB
286,555
SG250-08 No fan 1,305,509
SG250-08HP No fan 506,682
SG250-10P No fan 205,647
SG250-18 No fan 1,425,277
SG250-26 No fan 343,592
SG250-26HP 1 0° to 30°C: 37.5dB
50°C: 49.7dB
333,792
SG250-26P 2 0° to 30°C: 36.0dB
50°C: 53.7dB
430,341
SG250-50 1 0° to 30°C: 35.1dB
50°C: 47.5dB
134,933
SG250-50HP 2 0° to 30°C: 34.2dB
50°C: 47.3dB
62,607
SG250-50P 4 0° to 30°C: 35.6dB
50°C: 50.2dB
53,839
SG250X-24 1 0° to 30°C: 32.6dB
50°C: 44.9dB
130,255
SG250X-24P 2 0° to 30°C: 35.1dB
50°C: 46.2dB
62,949
SG250X-48 2 0° to 30°C: 36.6dB
50°C: 49.3dB
68,585
SG250X-48P 4 0° to 30°C: 35.9dB
50°C: 50.6dB
53,722
Warranty Limited lifetime
Power over Ethernet (PoE)
The following switches support 802.3at PoE+, 802.3af, and Cisco prestandard (legacy) PoE. Maximum power of 30.0W to any 10/100 or Gigabit Ethernet port, until the PoE budget for the switch is reached. The total power available for PoE per switch is as follows:
802.3af PoE, 802.3at PoE+, and 802.3xx 60W power are delivered over any of the RJ-45 ports within the listed power budgets Model Name Power Dedicated to PoE Number of Ports That Support PoE
SF250-48HP 195W 48
SG250-10P 62W 8
SG250-26HP 100W 24
SG250-26P 195W 24
SF250-48HP 195W 48
SG250-10P 62W 8
SG250-26HP 100W 24
SG250-26P 195W 24
SF250-48HP 195W 48
SG250-10P 62W 8
PoE Powered Device (PD) and PoE pass-through In addition to AC power, compact switch models can work as PoE powered devices and be powered by PoE switches connected to the uplink ports. The switch can also pass through the power to downstream PoE end devices if required.
Maximum of 60W can be drawn per uplink port if the peer PoE switch supports 60W PoE. When multiple uplink ports are connected to PoE switches, the power drawn from these ports is combined.
When AC power is connected and functioning properly, it will have priority over the PoE powered device function. The PoE powered device function will then act as a backup power source to the AC power. The PoE powered device function will be the primary power source for the switch if AC power is not connected.
Model Power option Available PoE passthrough power (W) Can switch be powered with uplinks?
SG250-08 1 x PoE uplink
1 x PoE+ uplink
AC Power
N/A
N/A
N/A
Yes
Yes
Yes
SG250-10P 1 x PoE uplink
2 x PoE uplink
1 x PoE+ uplink
2 x PoE+ uplink
1 x 60W PoE uplink
2 x 60W PoE uplink
AC Power
0W
0W
0W
22W
22W
50W
62W
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Power consumption (worst case)
Model Green Power (mode) System Power Consumption Power Consumption (with PoE) Heat Dissipation (BTU/hr)
SF250-24 EEE, Energy Detect 110V=10.6W
220V=10.9W
37.19
SF250-24P EEE, Energy Detect 110V=29.2W
220V=28.3W
110V=238W
220V=230W
812.09
SF250-48 EEE, Energy Detect 110V=23.4W
220V=24.2W
82.57
SF250-48HP EEE, Energy Detect 110V=43.1W
220V=44.3W
110V=265.2W
220V=255.8W
904.90
SG250-08 EEE, Energy Detect, Short Reach 110V=7.6W
220V=7.6W
25.93
SG250-08HP EEE, Energy Detect, Short Reach 110V=9.1W
220V=10.1W
110V=61.4W
220V=59.8W
209.51
SG250-10P EEE, Energy Detect, Short Reach 110V=13.25W
220V=13.42W
110V=85.19W
220V=84.17W
290.68
SG250-18 EEE, Energy Detect, Short Reach 110V=13.1W
220V=13.9W
44.70
SG250-26 EEE, Energy Detect, Short Reach 110V=18.1W
220V=18.9W
64.49
SG250-26HP EEE, Energy Detect, Short Reach 110V=23.5W
220V=24.4W
110V=135.2W
220V=133.9W
461.32
SG250-26P EEE, Energy Detect, Short Reach 110V=34.2W
220V=37.2W
110V=262W
220V=254.5W
893.98
SG250-50 EEE, Energy Detect, Short Reach 110V=35.2W
220V=35.4W
120.79
SG250-50HP EEE, Energy Detect, Short Reach 110V=57.5W
220V=59.3W
110V=267.2W
220V=263.5W
911.72
SG250-50P EEE, Energy Detect, Short Reach 110V=58.5W
220V=60.3W
110V=481.9W
220V=468.1W
1,644.31
SG250X-24 EEE, Energy Detect, Short Reach 110V=28.7W
220V=29.1W
99.29
SG250X-24P EEE, Energy Detect, Short Reach 110V=46.8W
220V=49.2W
110V=260.1W
220V=257.1W
887.50
SG250X-48 EEE, Energy Detect, Short Reach 110V=46.0W
220V=45.6W
156.96
SG250X-48P EEE, Energy Detect, Short Reach 110V=68.4W
220V=70.3W
110V=502.3W
220V=487.1W
1,713.92

Documentation:

Download the Cisco 250 Series Smart Switches Datasheet (PDF).

Pricing Notes:

Cisco 250 Series
Cisco 250 Series Smart Switches
SG250-08HP 8-Port Gigabit PoE
SG250-08HP 8-Port Gigabit PoE Smart
#SG250-08HP-K9-NA
List Price: $332.00
Our Price: $147.25
