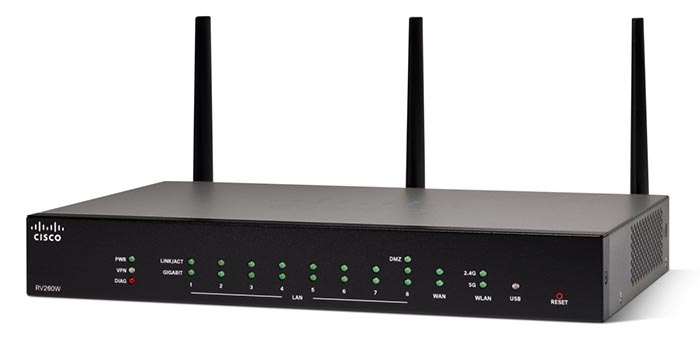

Cisco RV260W Wireless-AC VPN Router
3x3 802.11ac Wave 2 Wireless and a Switch with Eight Gigabit Ethernet Ports

Cisco RV260W Wireless-AC VPN Router

Cisco Products
Router with VPN
RV260W Wireless-AC VPN Router
Cisco RV260W Wireless-AC VPN Router
#RV260W-A-K9-NA
List Price: $578.00
Our Price: $267.36

More pricing below, click here!

Overview:

The Cisco Small Business RV260, RV260P, and RV260W VPN routers are high-performance models combining business-class features with performance, security, reliability, and overall value at a great price point. These models are perfect for the small business, small enterprise, branch, or small home office network.

Easy to configure and install, the RV260 routers can be remotely deployed using Plug and Play (PnP), are supported by the Cisco FindIT network platform, and feature a new user interface.

These models have a dual-core processor that provides performance usually found only in more expensive solutions. A Small Form-Factor Pluggable (SFP) WAN port provides flexible connectivity and investment protection. Like the other models in the portfolio, the RV260, 260P, and 260W include standard features such as a business-grade Stateful Packet Inspection (SPI) firewall, VPN security (IP Security [IPsec], Point-to-Point Tunneling Protocol [PPTP], and OpenVPN), content filtering, and device wizards to make an easy setup even easier.

The wired RV260 offers a high-performance user experience at an attractive cost point. The RV260P adds Power over Ethernet (PoE) to four of the eight ports. The RV260W adds 3x3 wireless 802.11ac. Like the RV160W but with better performance and more ports, this network-in-a-box offers fantastic wireless performance and range for the small business and teleworker network solution.

These models come with one year of web filtering service. This feature provides the ability to categorize different types of websites at different levels, and keeps your business users away from harmful websites.

Prominent feature/Differentiator/Capability

The Cisco Small Business RV260 VPN routers are high-performance models combining business-class features with performance, security, reliability, and overall value at a great price point. They are perfect for the small business, small enterprise, branch, or small home office network.

A new graphical user interface helps you get your VPN router up and running in minutes. Your business will enjoy reliable, highly secure connectivity that is so transparent you may not be aware of it.

Features and Benefits:

  • The RV260 provides wired connectivity with eight Gigabit Ethernet ports
  • The RV260P has eight Gigabit Ethernet ports with four ports of PoE and a 60W power budget
  • The RV260W is a wireless VPN router with 3x3 802.11ac Wave 2 wireless and a switch with eight Gigabit Ethernet ports
  • Flexible SFP/RJ-45 combination WAN ports
  • High-performance Gigabit Ethernet ports, enabling large file transfers and multiple users

  • Includes one year of web filtering to keep users and the business away from harmful websites and maintain a high level of productivity
  • IPsec, PPTP, and OpenVPN server enable secure connectivity for remote employees and multiple office sites
  • Strong security: Proven SPI firewall and hardware encryption
  • New user interface design for easier configuration and device management
  • Simple setup with wizard-based configuration

  • Updated with a new hardware enclosure design
  • FindIT network management support

Specifications:


Product Specifications
Ethernet WAN 1 RJ-45 SFP Gigabit combination port
Ethernet LAN 8 RJ-45 Gigabit Ethernet ports
Console port 1 RJ-45 port
Switch Power on/off
Cabling type Category 5 or better
LEDs Power, VPN, WAN, LAN
Operating system Linux
LAN
VLANs 16
Port security Yes, 802.1X
IPv6 Dual stack, 6rd, 6in4
WAN Dynamic Host Configuration Protocol (DHCP) client, static IP, Point-to-Point Protocol over Ethernet (PPPoE), PPTP, Layer 2 Tunneling Protocol (L2TP)
WLAN 3x3 802.11ac Wave 2
Security
Firewall SPI firewall
Port forwarding and triggering
Denial-of-Service prevention (DoS)
Access control IP access control lists
Secure management HTTPS, username/password complexity
User privileges Two levels of access: Admin and guest
Network
Network protocols
  • Dynamic Host Configuration Protocol (DHCP) server
  • Point-to-Point Protocol over Ethernet (PPPoE)
  • Point-to-Point Tunneling Protocol (PPTP)
    • Layer 2 Tunneling Protocol (L2TP)
  • DNS proxy
  • DHCP relay agent
  • Internet Group Management Protocol (IGMP) proxy and multicast forwarding
  • Rapid Spanning Tree Protocol (RSTP)
  • Dynamic DNS (DynDNS, No-IP, ChangeIP)
  • Network Address Translation (NAT), Port Address Translation (PAT)
  • One-to-one NAT
  • Port management
  • Port mirroring
  • Software-configurable DMZ to any LAN IP address
    • Session Initiation Protocol (SIP) Application Layer Gateways (ALG)
Routing protocols
  • Static routing, IGMP proxy
  • Dynamic routing
  • Routing Information Protocol (RIP) v1 and v2
  • RIP for IPv6 (RIPng)
    • Inter-VLAN routing
NAT protocol Port Address Translation (PAT), Network Address Port Translation (NAPT)
Port forwarding, one-to-one NAT, VPN NAT Traversal, Session Initiation Protocol (SIP), ALG, FTP ALG
VPN
Gateway-to-gateway IPsec VPN 20 IPsec tunnels
Client-to-gateway IPsec VPN 20 IPsec tunnels
IPsec VPN Internet Key Exchange (IKE) v2, Generic Routing Encapsulation (GRE), hub and spoke supported
PPTP VPN 20 PPTP VPN tunnels
OpenVPN Support for the OpenVPN server
Encryption Triple Data Encryption Standard (3DES), Advanced Encryption Standard (AES) with 128, 192, and 256-bit keys encryption
VPN pass-through IPsec, PPTP, and L2TP pass-through
Quality of Service (QoS)
QoS
  • 802.1p port-based priority on LAN port, application-based priority on WAN port
  • 4 queues
  • Differentiated Services Code Point (DSCP) support
  • Class of Service (CoS)
  • Bandwidth management for service prioritization
Jumbo frame support Supports jumbo frames on Gigabit ports – at least 1536B
Performance
NAT throughput 800+ Mbps
Concurrent sessions 25,000
IPsec VPN throughput 75+ Mbps
Configuration
Web-based user interface Browser-based configuration (HTTP/HTTPS)
Management Web-based user interface, Simple Network Management Protocol (SNMP) v3, Bonjour, PnP Command-line interface via console – limited configuration command support FindIT support for monitoring and management
Event logging Local, syslog, email alerts
Network diagnostics Ping, traceroute, DNS lookup
Upgradability Firmware upgradable via browser UI, imported/exported file, USB, Cisco FindIT
System time Network Time Protocol (NTP), Daylight Savings, manual entry
Language support User interface support: English
Environmental
Power 12VDC/2.5A
Operating temperature 0° to 40°C (32° to 104°F)
Storage temperature -20° to 70°C (-4° to 158°F)
Operating humidity 10% to 85% non-condensing
Storage humidity 5% to 90% noncondensing
Dimensions
Device Dimension/Weight Size L x W x H: 279x170x38.5 mm
Weight: 1360 g
Single Box Dimensions/Weight Size L x W x H: 388x271x126 mm
Weight: 2.18 kg
Certifications
Safety
  • UL 60950-1
  • CAN/CSA-C22.2 No. 60950-1
  • IEC 60950-1
  • EN 60950-1
Radio approvals
  • FCC Part 15.247, 15.407
  • RSS-210 (Canada)
  • EN 300.328, EN 301.893 (Europe)
  • AS/NZS 4268.2003 (Australia and New Zealand)
EMI and susceptibility
  • FCC Part 15.107 and 15.109
  • ICES-003 (Canada)
  • EN 301.489-1 and -17 (Europe)
    • RV260/RV260P rackmount: Class A

Documentation:

Download the Cisco RV260, RV260P, and RV260W VPN Routers Data Sheet (.PDF)
