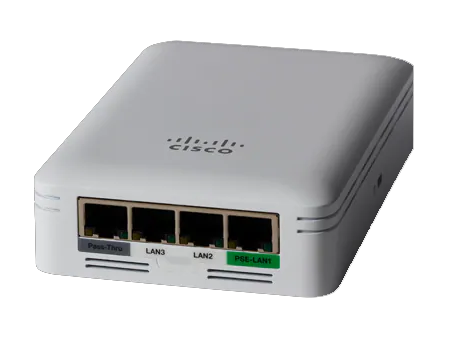

Cisco Business 145AC Access Point
802.11ac 2x2 Wave 2 Access Point Wall Plate


Cisco Business 145AC Access Point

Cisco Products
Cisco Business 145AC Access Point
Cisco Business Wireless 145AC Access Point, IEEE 802.11ac 2x2 Wave 2, Wall Plate
#CBW145AC-B
List Price: $177.04
Our Price: $147.07

More pricing below, click here!

Overview:

Easy-to-deploy wireless access points

With a sleek design and small form factor, the Cisco Business 145AC Access Point brings a full slate of Cisco high-performance functionality to in-room or office deployments where a mixture of wired and wireless devices is used. The Cisco Business 145AC Access Point is a compact, wall plate–mountable access point, ideal for in-room or office deployments requiring connectivity for both wired and wireless devices.

Incorporating support for 802.11ac Wave 2 wireless standards and Gigabit Ethernet wired connectivity into a sleek device, the Cisco Business 145AC is built to take full advantage of in-wall cabling infrastructure while blending into the visual footprint. This combination provides deployment flexibility while offering best-in-class performance.



Improved performance

Enterprise-class 802.11ac Wave 2 with multiuser multiple-input, multiple-output (MU-MIMO) functionality allows better performance, greater access, and increased bandwidth.


Simplicity

Simplify the management, operation, and troubleshooting of your Wi-Fi network with the Cisco Business Mobile app.

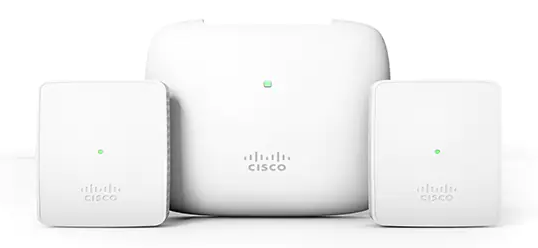

Flexibility

Expand your Wi-Fi coverage by simply mixing and matching additional Cisco Business Wireless access points and mesh extenders. Embedded Power over Ethernet (PoE) offers additional flexibility.


Affordable pricing

Get enterprise performance at a small business price point.

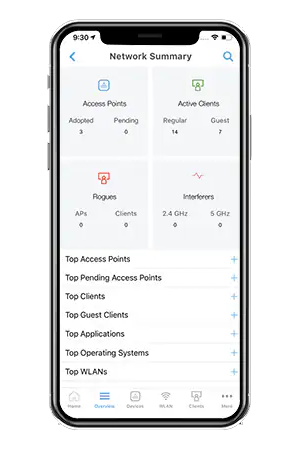

Cisco Business Mobile app

Intuitive and easy to use, the Cisco Business Mobile app simplifies network setup, management, and monitoring of Cisco Business Wireless access points and mesh extenders.


Features and Benefits:

By adhering to the 802.11ac Wave 2 standard, the Cisco Business 145AC Access Point delivers a data rate of up to 867 Mbps on its 5-GHz radio. This exceeds the data rates offered by access points that support the 802.11n standard. It also enables a total aggregate dual-radio data rate of up to 1 Gbps, providing the necessary foundation for small business and Managed Service Providers (MSPs) to stay ahead of the performance expectations and needs of their wireless users.

In recent years, small businesses, enterprises, and managed service providers alike have increasingly preferred wireless access as the principal form of network connectivity. Along with this shift, there is an expectation that wireless should enable a high-performance experience. The Cisco Business 145AC Access Point delivers industry-leading performance with highly secure and reliable wireless connections, for a robust, mobile end-user experience.

Feature Benefit
Multiuser MIMO (MU-MIMO) Multi-User (MU) Multiple-Input Multiple-Output (MU-MIMO) technology allows transmission of data to multiple 802.11ac Wave 2–capable clients simultaneously to improve the client experience. Prior to MU-MIMO, 802.11n and 802.11ac Wave 1 access points could transmit data to only one client at a time. This was typically referred to as Single-User MIMO (SU-MIMO).
Gigabit Ethernet ports Three local Gigabit Ethernet ports are available to securely connect wired devices to the network. Traffic from wired devices can be tunneled back to Master AP or be locally switched by the access point. One of these Ethernet ports can also provide Power over Ethernet (PoE) out to power a device such as an IP phone or a security camera.
Simplified management Deploy and configure multiple Cisco Business access points and mesh extenders easily without a physical controller, using Cisco Business Mobile app . Optional multisite remote management is available through the Cisco FindIT Network Management.
Mesh technology support Mix and match Cisco Business mesh extenders or access points to increase WiFi coverage throughout your business.
Flexible deployment Flexible deployment models supporting multiple concurrent use cases required by small businesses, including point of sale systems, surveillance cameras, guest access, and more.

Prominent Feature

Increased wireless performance

The Cisco Business 145AC Access Point supports the latest 802.11ac Wave 2 standard for higher performance, greater access, and higher-density networks. With simultaneous dual radios and dual bands with 802.11ac Wave 2 MU-MIMO functionality, this access point can handle the increasing number of high-bandwidth devices that will soon become a common part of the network.

Cisco Business Mobile app

The Cisco Business 145AC Access Point is managed by the Cisco Business Mobile app, an intuitive client application that simplifies traditional challenges associated with wireless network deployment, right from your mobile device. You can extend your network by adding new mesh extenders and automating wireless network activation in minutes. A robust management capability dynamically changes network configuration such as enabling guest access. Network usage, traffic patterns, and network throughput can be closely monitored, providing a real-time snapshot; this not only provides peace of mind, it virtually ensures optimal user experience. The Cisco Business Mobile app is available for iPhone, iPad, and Android devices.

Wired access

The Cisco Business 145AC Access Point allows wired access via a single Gigabit Ethernet port. It supports full operation modes using PoE 802.3af power. The 145AC comes with three local Gigabit Ethernet ports, one uplink Gigabit Ethernet port, and one passive pass-through RJ-45 port, allowing for a variety of connections.

Mounting

This compact access point is designed with flexible mounting options in mind. You can mount it directly on the wall or to numerous global wall junction standards. It is easy to install, and the mounting hardware is included.

Technical Specifications:

Item

Specification

Authentication and security

  • Wi-Fi Protected Access 2 and 3 (WPA2 and WPA3)
  • 802.1X, RADIUS Authentication, Authorization, and Accounting (AAA)
  • 802.11r and 802.11i

Maximum clients

Maximum number of associated wireless clients: 200 per Wi-Fi radio, for a total of 400 clients per access point

Max # of Mesh Extenders

Maximum number of associated Cisco Business mesh extenders: 25 per Access Point, up to 8 hops

802.11ac

  • 2x2 single-user/multi-user MIMO with two spatial streams, up to 867 Mbps
  • 20-, 40-, and 80-MHz channels
  • Dynamic Frequency Selection (DFS)

Data rates supported

  • 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps
  • 802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps
  • 802.11n data rates on 2.4 GHz: 6.5 to 300 Mbps (MCS0-MCS15, HT 20/40)
  • 802.11ac data rates on 5 GHz: 6.5 to 867 Mbps (MCS0-MCS9)

Maximum number of non-overlapping channels

A (A regulatory domain):

  • 2.412 to 2.462 GHz; 11 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz)
  • 5.745 to 5.825 GHz; 5 channels

B (B regulatory domain):

  • 2.412 to 2.462 GHz; 11 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.500 to 5.720 GHz; 12 channels
  • 5.745 to 5.825 GHz; 5 channels

C (C regulatory domain):

  • 2.412 to 2.472 GHz, 13 channels
  • 5.745 to 5.825 GHz, 5 channels

D (D regulatory domain):

  • 2.412 to 2.462 GHz; 11 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.745 to 5.825 GHz; 5 channels

E (E regulatory domain):

  • 2.412 to 2.472 GHz; 13 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz)

F (F regulatory domain):

  • 2.412 to 2.472 GHz, 13 channels
  • 5.745 to 5.805 GHz, 4 channels

G (G regulatory domain):

  • 2.412 to 2.472 GHz, 13 channels
  • 5.745 to 5.865 GHz; 7 channels

H (H regulatory domain):

  • 2.412 to 2.472 GHz, 13 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.745 to 5.825 GHz, 5 channels

I (I regulatory domain):

  • 2.412 to 2.472 GHz, 13 channels
  • 5.180 to 5.320 GHz, 8 channels

K (K regulatory domain):

  • 2.412 to 2.462 GHz, 11 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.500 to 5.620 GHz, 7 channels
  • 5.745 to 5.805 GHz, 4 channels

N (N regulatory domain):

  • 2.412 to 2.462 GHz, 11 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.745 to 5.825 GHz, 5 channels

Q (Q regulatory domain):

  • 2.412 to 2.472 GHz, 13 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.500 to 5.700 GHz, 11 channels

R (R regulatory domain):

  • 2.412 to 2.472 GHz, 13 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.660 to 5.700 GHz; 3 channels
  • S5.745 to 5.805 GHz; 4 channels

S (S regulatory domain):

  • 2.412 to 2.472 GHz, 13 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.500 to 5.700 GHz, 11 channels
  • 5.745 to 5.825 GHz, 5 channels

T (T regulatory domain):

  • 2.412 to 2.462 GHz, 11 channels
  • 5.280 to 5.320 GHz; 3 channels
  • 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz)
  • 5.745 to 5.825 GHz; 5 channels

Z (Z regulatory domain):

  • 2.412 to 2.462 GHz; 11 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz)
  • 5.745 to 5.825 GHz; 5 channels
Note:This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain.
Available transmit power settings 2.4 GHz
Up to 20 dBm
5 GHz
Up to 20 dBm
Note: The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation for specific details.
Integrated antennas
  • 2.4 GHz, gain 2 dBi
  • 5 GHz, gain 3 dBi
Interface
  • 1x Gigabit Ethernet uplink (10/100/1000BASE-T autosensing), PoE
  • 3x Gigabit Ethernet local ports (10/100/1000BASE-T), including one PoE out port:
    • PoE out provides 802.3af (Class 0) when access point is powered by 802.3at, or no output when powered by 802.3af
  • One passive pass-through port, RJ-45 (back to bottom)
Indicators Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors

Dimensions (W x L x H)

Access point (without mounting bracket): 3.5 x 5.5 x 1.25 in. (89 x 140 x 31.5 mm)

Weight

Access point without mounting bracket or any other accessories: 10 oz (280 g)
Environmental
  • Operating
    • Temperature: 32° to 104°F (0° to 50°C)
    • Humidity: 10% to 90% (noncondensing)
    • Maximum altitude: 9843 ft (3000 m) at 40°C
  • Nonoperating (storage and transportation)
    • Temperature: –22° to 158°F (-30° to 70°C)
    • Humidity: 10% to 90% (noncondensing)
    • Maximum altitude: 15,000 ft (4500 m) at 25°C
System
  • 1 GB DRAM
  • 256 MB flash
  • 710-MHz quad core processor
Powering options
  • 802.3af/at Ethernet switch; a Cisco Business switch with PoE is recommended
  • Optional Cisco Business PoE injector

Power draw

8.5W (maximum, without PoE)

Physical security

  • Torx security screw, included with the access point
  • Kensington lock slot to lock device to mounting bracket

Mounting

Bracket is included with the access point
Compliance
  • Safety:
    • UL 60950-1
    • CAN/CSA-C22.2 No. 60950-1
    • UL 2043
    • IEC 60950-1
    • EN 60950-1
  • Radio approvals:
    • FCC Part 15.247, 15.407
    • RSS-247 (Canada)
    • EN 300.328, EN 301.893 (Europe)
    • ARIB-STD 66 (Japan)
    • ARIB-STD T71 (Japan)
    • EMI and susceptibility (Class B)
    • FCC Part 15.107 and 15.109
    • ICES-003 (Canada)
    • VCCI (Japan)
    • EN 301.489-1 and -17 (Europe)
    • EN 50385
  • IEEE standards:
    • IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d
    • IEEE 802.11ac
  • Security:
    • 802.11i, WPA2, WAP3, WPA
    • 802.1X
    • AES
  • Extensible Authentication Protocol (EAP) types:
    • EAP-Transport Layer Security (TLS)
    • EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2)
    • Protected EAP (PEAP) v0 or EAP-MSCHAPv2
    • EAP-Flexible Authentication via Secure Tunneling (FAST)
    • PEAP v1 or EAP-Generic Token Card (GTC)
    • EAP-Subscriber Identity Module (SIM)
  • Multimedia:
    • Wi-Fi Multimedia (WMM)
  • Other:
    • FCC Bulletin OET-65C
    • RSS-102
Warranty Cisco Business limited lifetime hardware warranty
Free software updates, no service contract required

Documentation:

Download the Cisco Business 145AC Access Point Datasheet (PDF).
