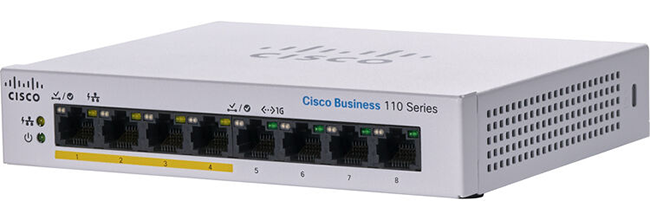

Cisco Business CBS110-8PP-D
8-port Gigabit Ethernet Desktop Switch with 4 support PoE (32W power budget)
CBS110-8PP-D hardware is backordered indefinitely and cannot be purchased, please check 110 Series Unmanaged Switches for a viable in-stock replacement, please contact us for further assistance.
Get a Quote!
Affordable, Plug-and-Play Switches for Small Business Networks
These are times of unprecedented change for small businesses. Consumers are more demanding than ever before. Online transactions have accelerated. While this new promises greater reward, it also requires small businesses to accelerate digital transformation. At the same time, employees are increasingly distributed across remote and office locations, and this trend is likely to continue. You need a network solution that provides fast, reliable access to critical cloud-based business applications across a remote and in-office workforce.
Now you can have a high-performance, business-class network with the Cisco Business 110 Series Unmanaged Switches. These affordable plug-and-play switches are ideal for small offices, workgroups, departments, and growing offices with limited IT know-how and support.
Cisco Business 110 Series Unmanaged Switches, part of the Cisco Business networking portfolio, are a family of affordable switches that provide Gigabit Ethernet connectivity for your small business network. Available in desktop and rack-mount models, these switches are designed to suit any small business with basic network needs and are optimized for power efficiency. They provide robust network connectivity your business demands, as well as added reliability with advanced features such as Quality of Service (QoS), loop detection, and cable diagnostics, all in a switch that you can set up yourself in minutes. The Cisco Business 110 Series switches bring the proven reliability and investment protection of Cisco networking solutions to your small business.
Plug-and-play without a need for IT know-how or support.
Entry-level switches at affordable small business prices.
Gigabit Ethernet and integrated quality-of-service (QoS) intelligence to optimize delay-sensitive services and improve overall network performance.
Supports Energy Efficient Ethernet (IEEE 802.3az) standard, which optimizes power use to conserve energy without compromising performance.
- Affordable 10/100/1000-Mbps speeds for bandwidth-hungry applications
- Plug-and-play, not IT knowledge required
- 5- to 24-port models that are desktop or rack mountable
- Power over Ethernet models to provide power to access points, IP phones and, other devices
Features and Benefits:
Cisco Business 110 Series switches provide an easy-to-use solution for your small business network. They offer:
Cisco Business 110 Series switches work right out of the box, with plug-and-play capability without software installation and configuration. Each switch port independently sets itself for the optimal speed and determines whether to run in half- or full-duplex mode automatically. As a standards-based Cisco solution, Cisco Business 110 Series switches are also designed to immediately accommodate all of the devices in your network.
Designed for small office spaces, Cisco Business 110 Series switches are available in 5-, 8-, 16-, and 24-ports configurations, providing ultimate flexibility for diverse use cases and deployment scenarios. The Cisco Business 110 Series switches are also available in both compact desktop and rack-mount models. The desktop models offer a wall-mount option for discreet mounting under a desk or on the wall of an office or conference room. All switches have no fans, so they run silently and unobtrusively in any workspace.
Cisco Business 110 Series switches deliver the performance you need to run your business applications, including bandwidth-intensive cloud applications and video services, and to avoid slow and sluggish networks. They support Gigabit Ethernet speeds, unlocking a new level of capacity and performance in your business network and letting you transfer large files in seconds.
Reduced Energy Costs
Cisco Business 110 Series switches are designed to help conserve energy by optimizing power use without compromising performance, which protects our environment and reduces your energy costs. In addition, they support the Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption by monitoring the amount of traffic on an active link and putting the link into a sleep state during quiet periods.
Power over Ethernet (PoE)
Cisco Business 110 Series switches are available with PoE ports. This capability simplifies the deployment of IP telephony, wireless, video surveillance, and other IoT solutions by allowing you to connect and power network endpoints over a single Ethernet cable. With no need to install separate power supplies for IP phones or wireless access points, you can take advantage of advanced communications technologies more quickly and at a lower cost.
All switches include advanced Cisco traffic-handling features to keep your applications running at peak performance. Integrated QoS intelligence on all models automatically prioritizes delay-sensitive services such as voice or video to improve your network's performance. Loop detection helps discover loops in the network that you might have accidentally created, thus avoiding storms that will bring your network to a stall. Cable diagnostics help to quickly identify and troubleshoot network cabling faults and issues. Fast store-and-forward switching identifies damaged packets and prevents them from being passed on through the network. All of these features run automatically, with no management or configuration required.
Peace of Mind
Cisco Business 110 Series switches deliver the rock-solid reliability you expect from a Cisco switch. The solution has been rigorously tested to make sure of optimal uptime and performance. In addition, the limited lifetime hardware warranty provides peace of mind.
|Cisco Business 110 Series Specifications|
|Switching capacity and forwarding rate||Model||Capacity in millions of packets per second (mpps) (64-byte packets)||Switching capacity in gigabits per second (Gbps)|
|CBS110-5T-D||7.4 mpps||10 Gbps|
|CBS110-8T-D||11.9 mpps||16 Gbps|
|CBS110-8PP-D||11.9 mpps||16 Gbps|
|CBS110-16T||23.8 mpps||32 Gbps|
|CBS110-16PP||23.8 mpps||32 Gbps|
|CBS110-24T||35.7 mpps||48 Gbps|
|CBS110-24PP||35.7 mpps||48 Gbps|
|Head-of-line (HOL) blocking||HOL blocking prevention|
|MAC table||2K addresses for CBS110-5T-D
8K addresses for all other models
|Jumbo frame||9216 bytes|
|Quality of Service (QoS)||802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR)|
|Loop detection||Helps discover loops in the network to avoid broadcast storms|
|Cable diagnostics||Quickly identify and troubleshoot network cable faults and/or shorts|
|Media-dependent interface||Automatic Media Dependent Interface (MDI) and MDI crossover (MDI-X)|
|Standards||IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet|
|Ports||Model name||Total system ports||RJ-45 ports||Combo ports (RJ-45 + Small Form-factor Pluggable [SFP])|
|CBS110-5T-D||5 Gigabit Ethernet||5 Gigabit Ethernet||–|
|CBS110-8T-D||8 Gigabit Ethernet||8 Gigabit Ethernet||–|
|CBS110-8PP-D||8 Gigabit Ethernet||8 Gigabit Ethernet||–|
|CBS110-16T||16 Gigabit Ethernet||16 Gigabit Ethernet||–|
|CBS110-16PP||16 Gigabit Ethernet||16 Gigabit Ethernet||–|
|CBS110-24T||24 Gigabit Ethernet||24 Gigabit Ethernet||2 SFP (combo with 2 Gigabit Ethernet)|
|CBS110-24PP||24 Gigabit Ethernet||24 Gigabit Ethernet||2 SFP (combo with 2 Gigabit Ethernet)|
Power over Ethernet (PoE) 802.3af
|Model||Power dedicated to PoE||Number of ports that support PoE|
|LEDs||Power, link/activity (cable diagnostics, loop detection), Gigabit, * PoE, * Max PoE,.
|Cabling type||Category 5e or better|
|Mounting options||Desktop, wall-mount or rack mount|
|Physical security lock||Kensington lock slot|
|Flash||16 MB for CBS110-16T, CBS110-16PP
8 MB for CBS110-24T, CBS110-24PP
|CPU||400 MHz ARM for CBS110-16T, CBS110-16PP, CBS110-24T, CBS110-24PP|
|CPU memory||128 MB for CBS110-16T, CBS110-16PP
64 MB for CBS110-24T, CBS110-24PP
|All numbers are aggregate across all ports as the buffers are dynamically shared:|
|Model Name||Packet Buffer|
|Supported SFP modules||SKU||Media||Speed||Maximum distance|
|MGBSX1||Multimode fiber||1000 Mbps||500 m|
|MGBLX1||Single-mode fiber||1000 Mbps||10 km|
|MGBLH1||Single-mode fiber||1000 Mbps||40 km|
|MGBT1||UTP cat 5e||1000 Mbps||100 m|
|Unit dimensions (W x D x H)||Model name||Unit dimensions|
|CBS110-5T-D||110 x 75 x 30 mm (4.33 x 2.95 x 1.18 in)|
|CBS110-8T-D||160 x 104 x 30 mm (6.30 x 4.07 x 1.18 in)|
|CBS110-8PP-D||160 x 129 x 30 mm (6.30 x 5.06 x 1.18 in)|
|CBS110-16T||279 x 170 x 44 mm (11 x 6.7 x 1.73 in)|
|CBS110-16PP||279 x 170 x 44 mm (11 x 6.7 x 1.73 in)|
|CBS110-24T||279 x 170 x 44 mm (11 x 6.7 x 1.73 in)|
|CBS110-24PP||440 x 203 x 44 mm (17.32 x 7.97 x 1.73 in)|
|Unit weight||Model name||Unit weight|
|CBS110-5T-D||0.23 kg (0.52 lb)|
|CBS110-8T-D||0.43 kg (0.94 lb)|
|CBS110-8PP-D||0.55 kg (1.2 lb)|
|CBS110-16T||0.97 kg (2.14 lb)|
|CBS110-16PP||1.30 kg (2.87 lb)|
|CBS110-24T||1.56 kg (3.43 lb)|
|CBS110-24PP||2.98 kg (6.57 lb)|
|Power||CBS110-5T-D, CBS110-8T-D: DC 12V, 1.0A
CBS110-8PP-D: DC 48V, 1.25A
CBS110-16T, CBS110-16PP, CBS110-24T, CBS110-24PP: 110-240VAC, 50-60 Hz, internal, universal
|Power consumption (worst case)||Model||System power consumption||Power consumption (with PoE)||Heat dissipation (BTU/hr)|
|Green (power efficiency)||Supports IEEE 802.3az on all copper Gigabit Ethernet ports|
|Compliance/certifications||UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B*
|Operating temperature||32° to 104°F (0° to 40°C)|
|Storage temperature||–4° to 158°F (–20° to 70°C)|
|Operating humidity||10% to 90%, relative, noncondensing|
|Storage humidity||5% to 90%, relative, noncondensing|
|Acoustic noise and Mean Time Between Failures (MTBF)||Model name||Fan (number)||Acoustic noise||MTBF at 25°C (hours)|
Download the Cisco Business 110 Series Unmanaged Switches Datasheet (PDF).
