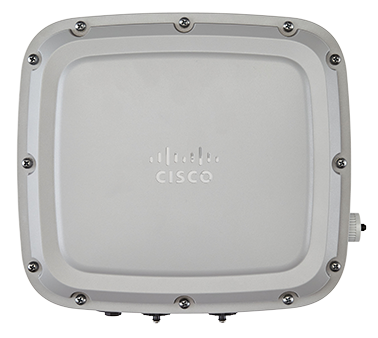

Cisco Catalyst 9124AX Wi-Fi 6 Series Access Points
The next generation of enterprise access points-resilient, secure, and intelligent

Cisco Catalyst 9124AX Series Access Points

Cisco Products
Cisco Catalyst 9124 Series
Cisco Catalyst 9124AXI Dual Band 802.11ax 5.38 Gbit/s Wireless Outdoor Access Point with Internal Omnidirectional Antenna
#C9124AXI-B
List Price: $2,306.48
Our Price: $1,544.29
Cisco Catalyst 9124AXD Dual Band 802.11ax 5.38 Gbit/s Wireless Outdoor Access Point with Internal Directional Antenna
#C9124AXD-B
List Price: $2,507.48
Our Price: $1,676.69



The Cisco Catalyst 9124AX Series Access Points are the most versatile next generation access point in enterprise grade. They are resilient, secure, and intelligent.

With the emergence of high-density networks and the Internet of Things (IoT), we are more dependent on wireless networks than ever before. An increasing number of devices connect to the network every year, ranging from high-performance client devices to low-bandwidth IoT devices. The Cisco® Catalyst® 9124AX Series outdoor access points provide a seamless experience, with high scaling and unmatched performance in diverse network deployments. Going beyond the Wi-Fi 6 (802.11ax) standard, the Catalyst 9124AX Series provides integrated security, resiliency, and operational flexibility as well as increased network intelligence.

The Catalyst 9124AX Series offers flexible deployment options for service providers and enterprise networks that need the fastest links possible for mobile, outdoor clients (smartphones, tablets, and laptops), and wireless backhaul. With options for internal or external antennas, the 9124AX Series gives network operators the flexibility to balance their desired wireless coverage with their need for easy deployment.

The Catalyst 9124AX Series access points, paired with the Cisco Digital Network Architecture (Cisco DNA), are enterprise-class products that will address both your current and future needs. They are the first step in updating your network to take better advantage of all of the features and benefits that Wi-Fi 6 provides.

Key features:

  • Three radios: 2.4 GHz (4x4), 5 GHz (4x4), Cisco RF ASIC, and BLE/IoT
  • Rugged outdoor durability

Features and Benefits:

Features Benefits
Wi-Fi 6 (802.11ax) The IEEE 802.11ax emerging standard, also known as High-Efficiency Wireless (HEW) or Wi-Fi 6, builds on 802.11ac. It delivers a better experience in typical environments with more predictable performance for advanced applications such as 4K or 8K video, high-density, high-definition collaboration apps, all-wireless offices, and IoT. Wi-Fi 6 is designed to use both the 2.4-GHz and 5-GHz bands, unlike the 802.11ac standard.
Uplink/downlink OFDMA Orthogonal Frequency-Division Multiple Access (OFDMA)-based scheduling splits the bandwidth into smaller frequency allocations called Resource Units (RUs), which can be assigned to individual clients in both the downlink and uplink directions to reduce overhead and latency.
Uplink/downlink MU‑MIMO technology Supporting two spatial streams, multiuser multiple-input multiple-output (MU-MIMO) enables access points to split spatial streams between client devices to maximize throughput.
BSS coloring Spatial reuse (also known as Basic Service Set [BSS] coloring) allows the access points and their clients to differentiate between BSSs, thus permitting more simultaneous transmissions.
Target Wake Time A new power-saving mode called Target Wake Time (TWT) allows the client to stay asleep and to wake up only at prescheduled (target) times to exchange data with the access point. This offers significant energy savings for battery-operated devices, up to three to four times the savings achieved by 802.11n and 802.11ac.
Cisco RF ASIC Cisco RF ASIC is a fully integrated Software-Defined Radio (SDR) that can perform advanced RF spectrum analysis and delivers features such as Cisco CleanAir, Wireless Intrusion Prevention System (wIPS), FastLocate, and Dynamic Frequency Selection (DFS).
Bluetooth 5 Integrated Bluetooth Low Energy (BLE) 5 radio enables location-based use cases such as asset tracking, wayfinding, and analytics.
Multigigabit Ethernet support Provides uplink speeds of 2.5G, 1G, and 100M. All speeds are supported on Category 5e cabling for an industry first, as well as 10GBASE-T (IEEE 802.3bz) cabling.

Secure infrastructure

Trustworthy systems built with Cisco Trust Anchor Technologies provide a highly secure foundation for Cisco products. With the Cisco Catalyst 9100 Access Points, these technologies enable assurance of hardware and software authenticity for supply chain trust and strong defense against man-in-the-middle attacks that compromise software and firmware. Trust Anchor capabilities include:

  • Image signing
  • Secure Boot
  • Cisco Trust Anchor module

Cisco DNA support

Pairing the Catalyst 9124AX Series Access Points with Cisco DNA allows for a total network transformation. Cisco DNA allows you to truly understand your network with real-time analytics, quickly detect and contain security threats, and easily provide networkwide consistency through automation and virtualization. The Catalyst 9124AX Series supports SD-Access, Cisco’s leading enterprise architecture.

Working together, the Cisco Catalyst 9124AX Series and Cisco DNA offer such features as:

  • Cisco DNA Spaces
  • Cisco Identity Services Engine
  • Cisco DNA Analytics and Assurance

Product Specifications:

Item Specification
Part numbers

Cisco Catalyst 9124AX Series Access Points: Outdoor environments, with internal antennas

  • C9124AXI-x: Cisco Catalyst 9124AX Series (internal omnidirectional antenna)
  • C9124AXD-x: Cisco Catalyst 9124AX Series (internal directional antenna)
  • C9124AXE-x: Cisco Catalyst 9124AX Series (External antenna)

Regulatory domains: (x = regulatory domain)
Customers are responsible for verifying approval for use in their individual countries. To verify approval and to identify the regulatory domain that corresponds to a particular country, visit https://www.cisco.com/go/aironet/compliance.
Not all regulatory domains have been approved. As they are approved, the part numbers will be available on the Global Price List.

Software
  • Catalyst 9124AXI, 9124AXD
  • Cisco IOS XE Software Release 17.5.1 or later
Supported wireless LAN controllers Cisco Catalyst 9800 Series Wireless Controllers
802.11n version 2.0 (and related) capabilities
  • 4x4 MIMO with four spatial streams
  • Maximal Ratio Combining (MRC)
  • 802.11n and 802.11a/g
  • 20- and 40-MHz channels
  • PHY data rates up to 890 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz)
  • Packet aggregation: Aggregate MAC Protocol Data Unit (A-MPDU) (transmit and receive), Aggregate MAC Service Data Unit (A-MSDU) (transmit and receive)
  • 802.11 Dynamic Frequency Selection (DFS)
  • Cyclic Shift Diversity (CSD) support
802.11ac
  • 4x4 downlink MU-MIMO with four spatial streams
  • MRC
  • 802.11ac beamforming
  • 20-, 40-, 80-, and 80+80- MHz channels
  • PHY data rates up to 3.47 Gbps (160 MHz with 5 GHz)
  • Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
  • 802.11 DFS
  • CSD support
  • WPA3 support
802.11ax
  • 4x4 uplink/downlink MU-MIMO with four spatial streams
  • Uplink/downlink OFDMA
  • TWT
  • BSS coloring
  • MRC
  • 802.11ax beamforming
  • 20-, 40-, 80-, and 80+80-MHz channels
  • PHY data rates up to 5.38 Gbps (8x8 80 MHz or Dual 4x4 80+80 MHz on 5GHz and 4x4 20 MHz on 2.4)
  • Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
  • 802.11 DFS
  • CSD support
  • WPA3 support
  • WPA3-Enterprise 192 support
Integrated antenna

Catalyst 9124AXI

  • 2.4 GHz: Peak gain 7 dBi, internal antenna, omnidirectional
  • 5 GHz: Peak gain 7 dBi, internal antenna, omnidirectional
  • BLE Antenna Gain: 5 dBi

Catalyst 9124AXD

  • 2.4 GHz: Peak gain 9 dBi, internal antenna, directional
  • 5 GHz: Peak gain 9 dBi, internal antenna, directional
  • BLE Antenna Gain: 4 dBi
Interfaces
  • 1x 100/1000/2500 BASE-T (Ethernet) uplink interface
  • 1x Gigabit Ethernet SFP
  • 1x 10/100/1000 BASE-T (Ethernet) downlink interface
  • Supports PoE output (802.3af compliant PSE) if C9124AX powered from one of the following
    • UPOE or 802.3bt inline power source (Switch or Power Injector)
    • DC input (with external power supply rated 60W)
  • Management console port (RJ-45)
Indicators Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors
Dimensions (W x L x H) 10.2 x 9.2 x 3.2 in. (25.9 x 23.3 x 8.1 cm)
Weight 6.5 lb. (2.9 kg)
Input power requirements
  • 802.3af Power over Ethernet (PoE), 802.3at PoE+, 802.3bt PoE++, Cisco Universal PoE (Cisco UPOE)
  • Cisco power injector, AIR-PWRINJ-60RGD1= and AIR-PWRINJ-60RGD2=
  • Cisco power injector, AIR-PWRINJ6= (Note: This injector supports 802.3at)
  • DC power source: Auxiliary DC input, 24V to 56V
Environmental
  • Nonoperating (storage) temperature: -40° to 185°F (-40° to 85°C)
  • Nonoperating altitude test: 17,000 ft (5182 m)
  • Operating temperature: -40° to 149°F (-40° to 65°C) with no solar loading, -40° to 131°F (-40° to 55°C) with solar loading
  • Operating altitude test: 17,000 ft (5182 m)
  • Operating humidity: 0% to 100% (condensing)
  • IEC 60529 Ingress Rating: IP66/IP67
  • Wind resistance up to 100 mph (161 km/h) sustained winds and 165 mph (266 km/h) wind gusts
  • Icing protection: MIL-STD-810F,13mm 13mm (0.5 in.)
  • Corrosion: NEMA 250-2008 (600 hrs. salt, 1200 hrs. mixed gas)
  • Solar radiation: EN 60068-2-5 (1120 W/m2)
  • Vibration: MIL-STD-810, Method 514.4
Available transmit power settings (Max/Min)
  • 2.4 GHz
    • 30 dBm (1W)
    • -4 dBm (0.4 mW)
  • 5 GHz
    • 30 dBm (1W)
    • -1 dBm (0.4 mW)
Regulatory domains Note: Customers are responsible for verifying approval for use in their individual countries. To verify approval and to identify the regulatory domain that corresponds to a particular country, visit https://www.cisco.com/go/aironet/compliance.
Warranty Limited lifetime hardware warranty
Compliance
  • Safety:
    • IEC 60950-1/IEC 60950-22
    • IEC 62368-1
    • EN 60950-1/EN 60950-22
    • EN 62368-1
    • AS/NZS 60950.1/AS/NZS 62368.1
    • UL 60950-1/ UL 60950-22
    • UL 62368-1
    • CAN/CSA-C22.2 No. 60950-1/ 60950-22
    • CAN/CSA-C22.2 No. 62368-1
  • Emissions:
    • CISPR 32 (rev. 2015)
    • EN 55032 (rev. 2015+A11:2020)
    • EN61000-3-2 (rev. 2019)
    • EN61000-3-3 (rev. 2013+A1:2019)
    • KS C 9610-3-2:2020
    • KS C 9610-3-3:2020
    • AS/NZS CISPR 32 Class B (rev. 2015)
    • 47 CFR FCC Part 15B
    • ICES-003, Issue 7
    • VCCI-CISPR 32 : 2016
    • CNS (rev. 13438)
    • KS C 9832:2019
    • QCVN 118:2018/BTTTT
  • Immunity:
    • CISPR 24 (rev. 2010)
    • EN 55024 + AMD 1 (rev. 2010)
    • EN 55035: 2017
    • QCVN (TCVN 7317:2003)
    • KS C 9835:2019
  • Emissions and immunity:
    • EN 301 489-1 (v2.2.3 2019-11)
    • EN 301 489-17 (v3.2.4 2020-09)
    • QCVN 18:2014/BTTTT
    • QCVN 112:2017/BTTTT
    • KS X 3124:2020
    • KS X 3126:2020
  • Radio:
    • EN 300 328 (v2.2.2 2019-07)
    • EN 301 893 (v2.1.1)
    • AS/NZS 4268 (rev. 2017)
    • 47 CFR FCC Part 15C, 15.247, 15.407
    • RSP-100
    • RSS-GEN
    • RSS-247
    • China regulations SRRC
    • LP0002 (rev 2020)
    • Japan Std. 33a, Std. 66, and Std. 71
    • QCVN (54:2020/BTTTT)
    • QCVN (65:2013/BTTTT)
  • RF safety:
    • EN 50385 (rev. Aug 2002)
    • ARPANSA
    • AS/NZS 2772 (rev. 2016)
    • 47 CFR Part 1.1310 and 2.1091
    • RSS-102 (2015)
  • IEEE standards:
    • IEEE 802.3
    • IEEE 802.3ae
    • IEEE 802.11a/b/g/n/ac/ax/h/d/u/k/v/r
    • IEEE 802.15.1/802.15.4
  • Security:
    • 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA, WPA3
    • 802.1X/AES/TKIP
  • Extensible Authentication Protocol (EAP) types:
    • EAP-Transport Layer Security (TLS)
    • EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol (MSCHAP) v2
    • Protected EAP (PEAP) v0 or EAP-MSCHAP v2
    • EAP-Flexible Authentication via Secure Tunneling (EAP-FAST)
    • PEAP v1 or EAP-Generic Token Card (GTC)
    • EAP-Subscriber Identity Module (SIM)

Transmit Power and Receive Sensitivity:


  5 GHz Radio 2.4 GHz Radio
  Spatial streams Total TX power (dBm) RX sensitivity (dBm) Total TX power (dBm) RX sensitivity (dBm)
802.11/11b
1 Mbps 1 30 -102 - -
11 Mbps 1 30 -94 - -
802.11a/g
6 Mbps 1 30 -97 30 -99
24 Mbps 1 30 -89 30 -90
54 Mbps 1 30 -81 30 -83
802.11n HT20
MCS0 1 30 -97 30 -99
MCS7 1 29 -79 29 -80
MCS8 2 30 -95 30 -97
MCS15 2 29 -77 29 -78
MCS16 3 30 -93 30 -95
MCS23 3 29 -75 29 -76
MCS24 4 30 -92 30 -94
MCS31 4 29 -74 29 -75
802.11n HT40
MCS0 1 - - 30 -97
MCS7 1 - - 30 -79
MCS8 2 - - 30 -95
MCS15 2 - - 30 -77
MCS16 3 - - 30 -93
MCS23 3 - - 30 -75
MCS24 4 - - 30 -92
MCS31 4 - - 30 -74
802.11ac VHT20
MCS0 1 - - 30 -99
MCS8 1 - - 28 -76
MCS0 2 - - 30 -97
MCS8 2 - - 28 -74
MCS9 2 - - - -
MCS0 3 - - 30 -95
MCS8 3 - - 28 -72
MCS9 3 - - - -
MCS0 4 - - 30 -94
MCS8 4 - - 28 -71
MCS9 4 - - - -
802.11ac VHT40
MCS0 1 - - 30 -96
MCS8 1 - - 29 -74
MCS0 2 - - 30 -94
MCS8 2 - - 29 -72
MCS9 2 - - 28 -70
MCS0 3 - - 30 -92
MCS8 3 - - 29 -70
MCS9 3 - - 28 -68
MCS0 4 - - 30 -91
MCS8 4 - - 29 -69
MCS9 4 - - 28 -67
802.11ac VHT80
MCS0 1 - - 30 -94
MCS8 1 - - 29 -72
MCS0 2 - - 30 -92
MCS8 2 - - 29 -70
MCS9 2 - - 28 -69
MCS0 3 - - 30 -90
MCS8 3 - - 29 -68
MCS9 3 - - 28 -67
MCS0 4 - - 30 -89
MCS8 4 - - 29 -67
MCS9 4 - - 28 -66
802.11ac VHT160
MCS0 1 - - 30 -91
MCS8 1 - - 26 -69
MCS0 2 - - 30 -89
MCS8 2 - - 26 -67
MCS9 2 - - 25 -66
802.11ax HE20
MCS0 1 30 -97 30 -98
MCS11 1 26 -69 27 -70
MCS0 2 30 -95 30 -96
MCS11 2 26 -67 27 -68
MCS0 3 30 -93 30 -94
MCS11 3 26 -65 27 -66
MCS0 4 30 -92 30 -93
MCS11 4 26 -64 27 -65
802.11ax HE40
MCS0 1 - - 30 -95
MCS11 1 - - 26 -67
MCS0 2 - - 30 -93
MCS11 2 - - 26 -65
MCS0 3 - - 30 -91
MCS11 3 - - 26 -63
MCS0 4 - - 30 -90
MCS11 4 - - 26 -62
802.11ax HE80
MCS0 1 - - 30 -92
MCS11 1 - - 26 -64
MCS0 2 - - 30 -90
MCS11 2 - - 26 -62
MCS0 3 - - 30 -88
MCS11 3 - - 26 -60
MCS0 4 - - 30 -87
MCS11 4 - - 26 -59
802.11ax HE80
MCS0 1 - - 30 -89
MCS11 1 - - 25 -61
MCS0 2 - - 30 -87
MCS11 2 - - 25 -59

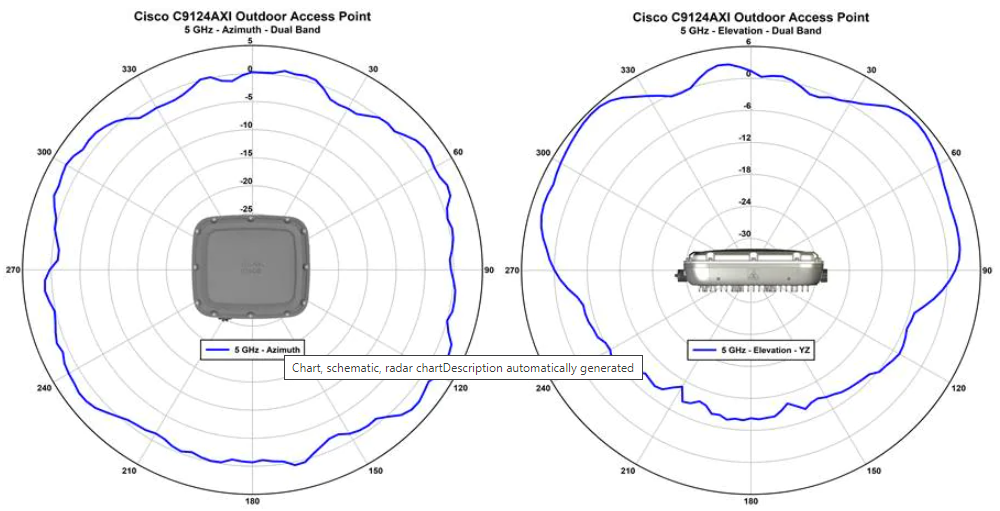

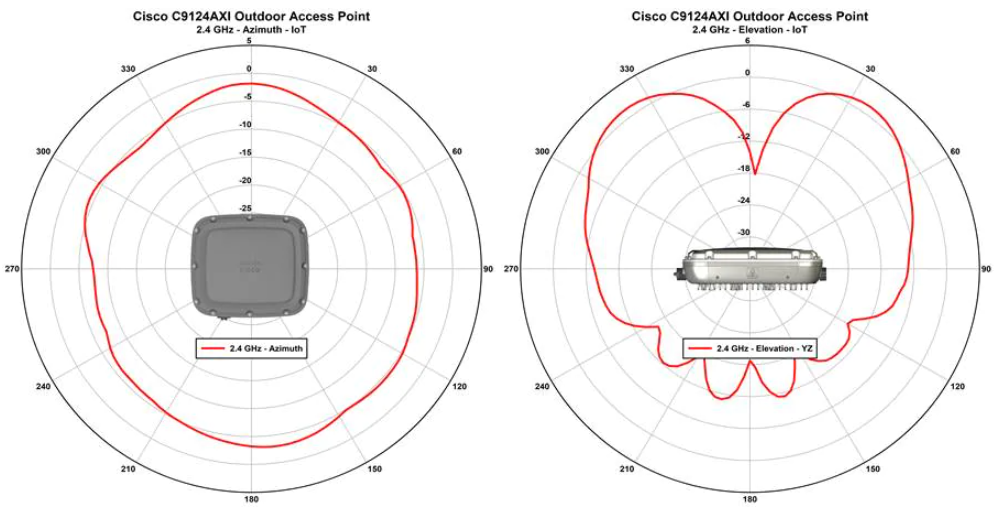

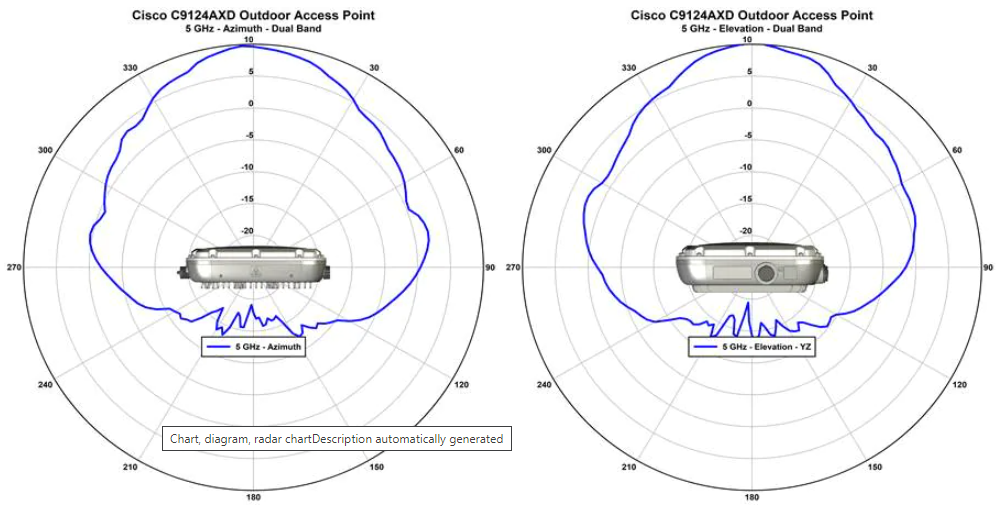

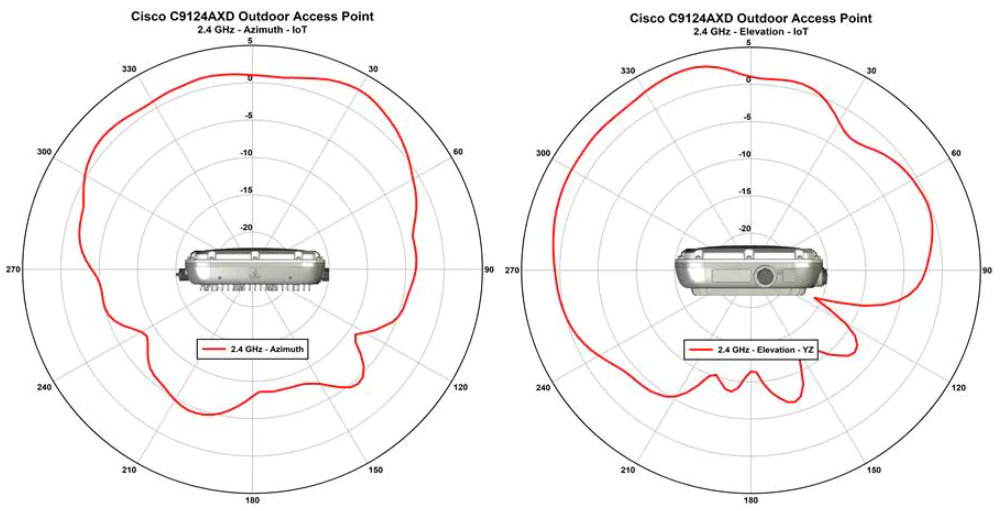

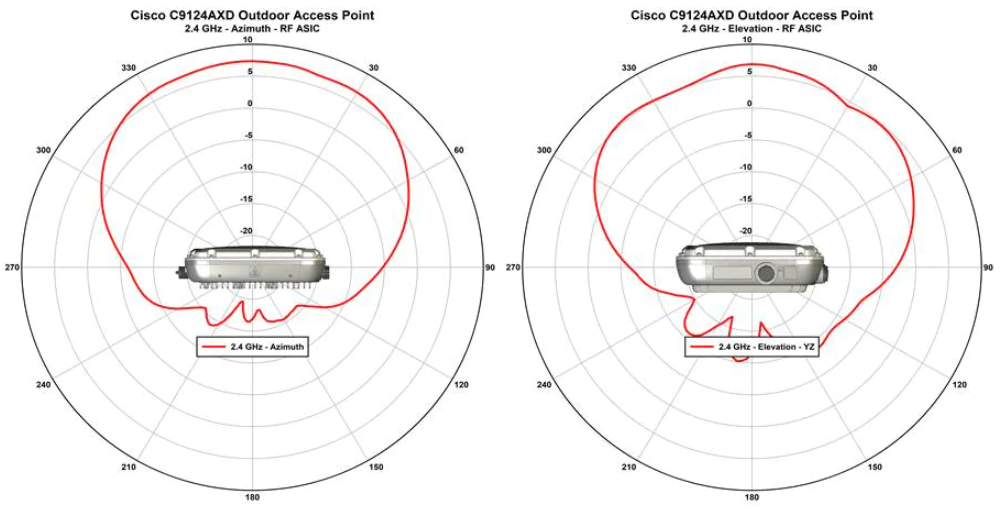

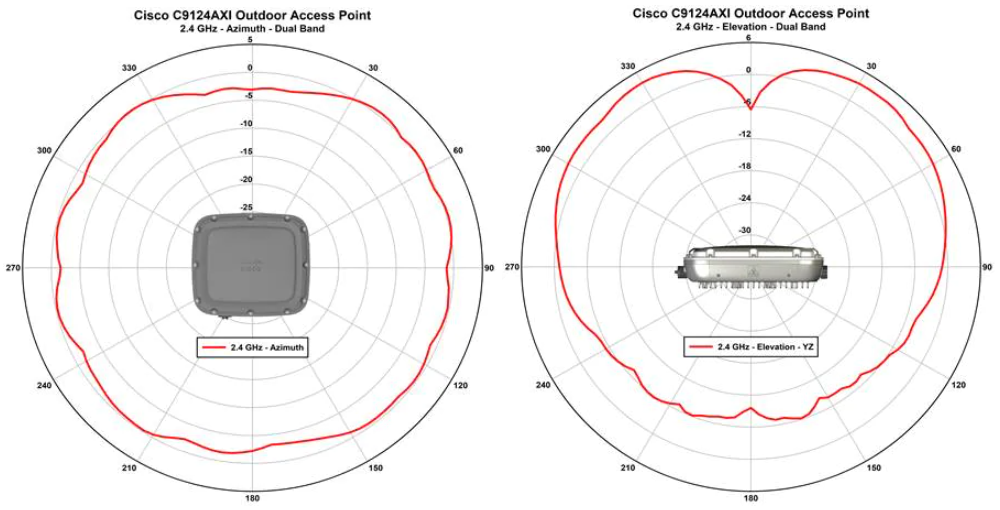

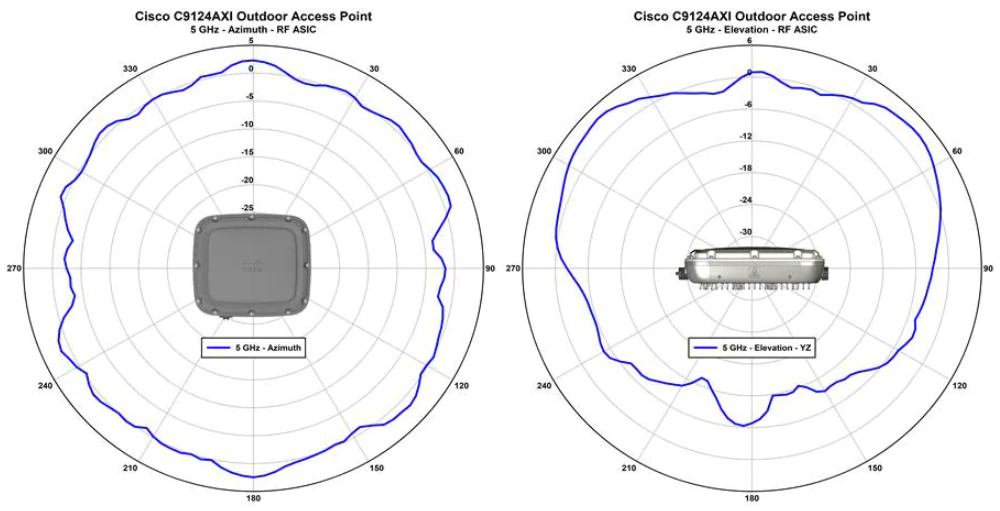

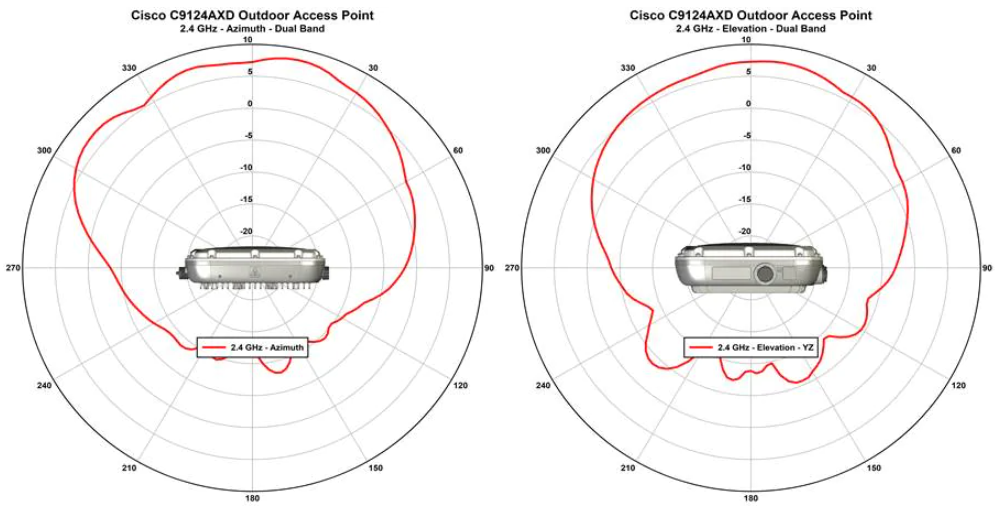

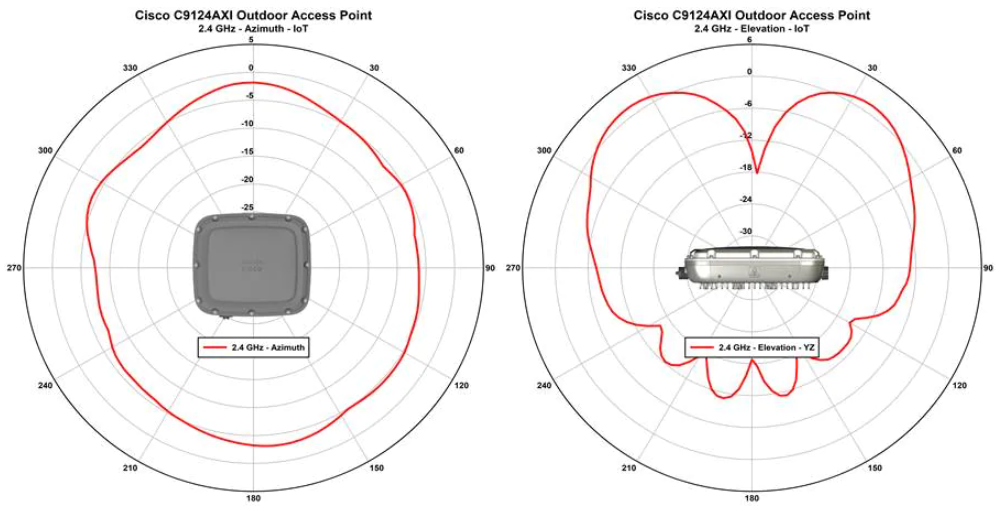

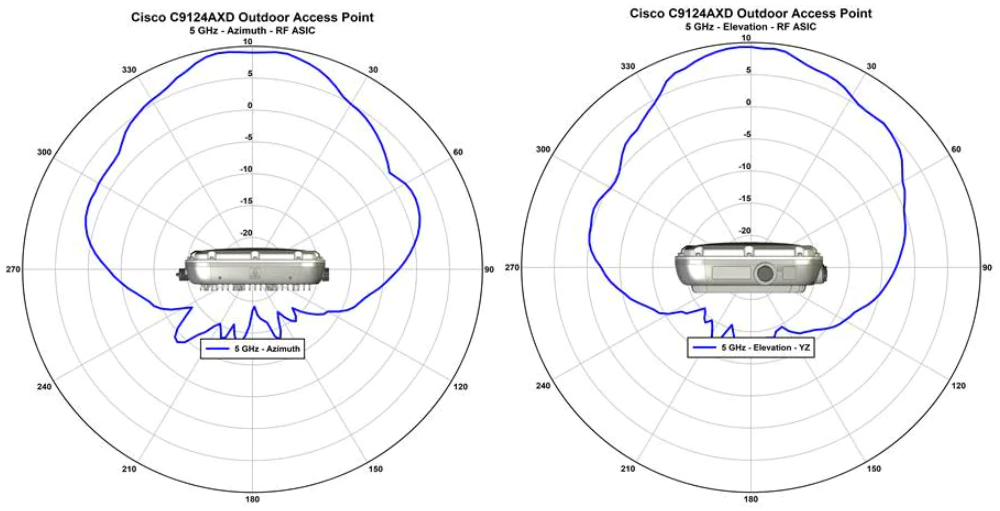

Antenna Pattern:

Licensing and Software Packaging:

The Cisco Catalyst 9100 Series requires mandatory Smart Licensing. This provides ease of use for Cisco DNA license management, consumption, and tracking. The Cisco Catalyst 9100 Series uses packaging that includes vastly simplified base network packages (Network Essentials and Network Advantage) and term-based software packages (Cisco DNA Essentials, Cisco DNA Advantage) as add-ons. The Cisco DNA packages, in addition to on-box capabilities, also unlock additional functionality in Cisco DNA Center, enabling controller-based software-defined automation and assurance in your network.

The Cisco Catalyst 9100 Series can support 3 types of Cisco DNA license: Cisco DNA Essentials, Cisco DNA Advantage and Cisco DNA Premier. The Cisco DNA licenses provide Cisco innovations on the AP. The Cisco DNA license also includes the Network Essentials and Network Advantage licensing options which cover wireless fundamentals such as 802.1x authentication, QoS, PnP etc, telemetry and visibility, SSO, as well as security controls. These Network essentials and Network advantage components are perpetual and is valid till the life of the AP. Cisco DNA subscription licenses have to be purchased for a 3-, 5-, or 7-year subscription term. However, upon expiry of Cisco DNA license, Cisco DNA features will expire, whereas network essentials and network advantage features will remain.

Documentation:

Download the Cisco Catalyst 9124AX Series Access Points Data Sheet (PDF).
