Cisco Catalyst 9117 Series Wi-Fi 6 Access Points
The next generation of enterprise access points-resilient, secure, and intelligent

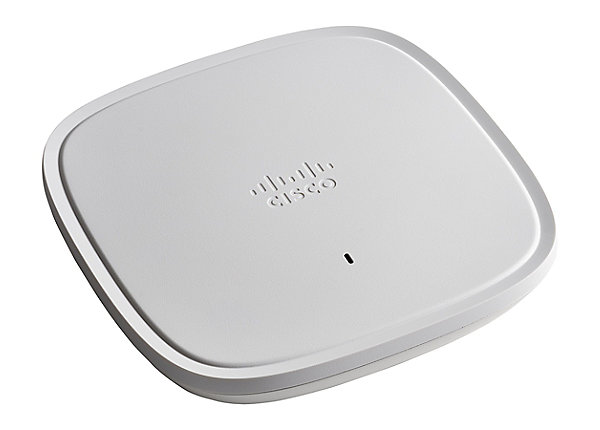

Cisco Catalyst 9117 Access Points


Cisco Catalyst 9100 Series Wi-Fi 6 Access Points
Cisco Catalyst 9117 Series
Catalyst 9117AX Series AP
Cisco Catalyst 9117AX Series Access Points
#C9117AXI-B
List Price: $1,695.00
Our Price: $564.12
USA: FREE Ground ShippingCatalyst 9117AX Series
Note: USB License Required
#C9117AXI-Z
List Price: $1,695.00
Our Price: $1,129.55



The Cisco® Catalyst® 9117 Access Points are the next generation of enterprise access points. They are resilient, secure, and intelligent.

Hyperconnectivity with steady performance in demanding environments. Exponential growth of Internet of Things (IoT) devices and next-generation applications. Advanced persistent security threats. All of these require a wireless network that provides resiliency and superior connectivity, integrated security with advanced classification and containment, and hardware and software innovations to automate, secure, and simplify networks. Updating your wireless infrastructure to one that will meet these needs is paramount for today’s digital business. The new generation of Cisco Catalyst 9100 Access Points, with high-performance Wi-Fi 6 (802.11ax) capabilities and innovations in RF performance, security, and analytics, enables end-to-end digitization and helps accelerate the rollout of business services by delivering beyond Wi-Fi.

TThe Cisco Catalyst 9117 Access Points deliver several features of Wi-Fi 6 while offering high data rates.

Key features:

  • Wi-Fi 6 certifiable
  • Three radios: 2.4 GHz (4x4), 5 GHz (4x4), and BLE
  • OFDMA and MU-MIMO
  • Multigigabit support
  • Internal antenna

The Cisco Catalyst 9117 Access Points support both Orthogonal Frequency-Division Multiple Access (OFDMA) and Multiuser Multiple Input, Multiple Output (MU-MIMO), delivering more predictable performance for advanced applications and IoT. Additionally, with up to 5 Gbps with NBASE-T and IEEE 802.3bz Ethernet compatibility, the Cisco Catalyst 9117 can seamlessly offload network traffic without any bottlenecks. With Cisco’s Multigigabit technology, you can use your existing Category 5e or 6 cabling to achieve speeds up to 5 Gbps, allowing for higher throughputs with minimum cost.

Features and Benefits:

Features Benefits
802.11ax (Wi-Fi 6) The IEEE 802.11ax emerging standard, also known as High-Efficiency-Wireless (HEW) or Wi-Fi 6, builds on 802.11ac. It will deliver a better experience in typical environments and more predictable performance for advanced applications such as 4K or 8K video, high-density, high-definition collaboration apps, all-wireless offices, and IoT. 802.11ax is designed to use both the 2.4-Ghz and 5-GHz bands, unlike the 802.11ac standard.
802.11ac Wave 2 support Provides a connection rate of up to 3.5 Gbps—significantly higher than rates offered by today’s high-end 802.11ac access points.
OFDMA OFDMA-based scheduling splits the bandwidth into smaller chunks called Resource Units (RUs), which can be allocated to individual clients only in the downlink direction to reduce overhead and latency.
MU‑MIMO technology Supporting eight spatial streams, MU-MIMO enables access points to split spatial streams between client devices, to maximize throughput.
Target wake time A new power savings mode called Target Wake Time (TWT) allows the client to stay asleep and to wake up only at prescheduled (target) times to exchange data with the AP. This offers significant energy savings for battery-operated devices, up to 3x to 4x compared to 802.11n and 802.11ac.
Cisco Mobility Express Mobility Express is designed for networks of all sizes, including small and medium-sized businesses and distributed enterprises. It provides industry-leading wireless LAN technology without the need for a physical controller or additional licenses.
Multigigabit Ethernet support Provides uplink speeds of 2.5 Gbps, in addition to 100 Mbps and 1 Gbps. All speeds are supported on Category 5e cabling for an industry first, as well as 10GBASE-T (IEEE 802.3bz) cabling.
Bluetooth 5.0 Integrated Bluetooth Low Energy (BLE) 5.0 radio to enable IoT use cases such as location tracking and wayfinding
Apple Features

Apple and Cisco have partnered to create an optimal mobile experience for iOS devices on corporate networks based on Cisco technologies. Using new features in iOS 10, in combination with the latest software and hardware from Cisco, businesses can now more effectively use their network infrastructure to deliver an enhanced user experience across all business applications.

At the center of the collaboration is a unique handshake between the Cisco WLAN and Apple devices. This handshake enables the Cisco WLAN to provide an optimal Wi-Fi roaming experience to Apple devices. Additionally, the Cisco WLAN trusts Apple devices and gives priority treatment for business-critical applications specified by the Apple device. This feature is also known as Fast Lane.

Resilient - Steady Performance in Demanding Environments

Networks infrastructure that upgrade to Wi-Fi 6, also known as 802.11ax, enabled devices will get upto 4x capacity boost needed to support the additional devices connected to the network as well as the data that they generate. 802.11ax will offer multi-gigabit performance which will feature a seamless connectivity with higher throughput compared to the 802.11ac standard. This means you’ll see your network performance run smoother. With support for BSS coloring, the new standard eases high device dense deployments by allowing simultaneous transmissions, ultimately increasing network capacity, customer interactions, and value-add services.

Wi-Fi 6, with better coordination of transit time to and from devices, will also bring about a reduction in latency and a greater reliability allowing for hundreds of devices per access point. This allows for IoT devices to be reliably deployed at scale. And an overall improved user experience will be seen as well, as 802.11ax will improve device battery life of devices such as smartphones, tablets and IoT when compared to prior standards.

Secure Infrastructure

Trustworthy systems built with Cisco Trust Anchor Technologies provide a highly secure foundation for Cisco products. With The Catalyst 9100 Series, these technologies enable hardware and software authenticity assurance for supply chain trust and strong mitigation against man-in-the-middle attacks that compromise software and firmware. Trust Anchor capabilities include:

  • Image signing: Cryptographically signed images provide assurance that the firmware, BIOS, and other software are authentic and unmodified. As the system boots, the system’s software signatures are checked for integrity.
  • Secure Boot: Cisco Secure Boot technology anchors the boot sequence chain of trust to immutable hardware, mitigating threats against a system’s foundational state and the software that is to be loaded, regardless of a user’s privilege level. It provides layered protection against the persistence of illicitly modified firmware.
  • Cisco Trust Anchor module: A tamper-resistant, strong cryptographic, single-chip solution provides hardware authenticity assurance to uniquely identify the product so that its origin can be confirmed to Cisco. This provides assurance that the product is genuine.

Intelligence for Proactive Insights and Analytics

With multi-RF support paramount for IoT devices and expanded ecosystem partnerships, the Catalyst 9100 portfolio provides unprecedented visibility from mobile devices on Cisco network. Enabling digitization with Cisco DNA Architecture, Catalyst 9100 portfolio further Cisco RF innovations for securing air with real-time telemetry, guided remediation, and optimization for Wi-Fi and IOT networks. The Cisco Catalyst 9100 series access points can support advanced spectrum intelligence, device analytics and network assurance.

Aesthetically Redesigned for Next Generation Enterprise

The Catalyst 9100 series access points are built from the ground-up, with new aerodynamic look and smooth finish, integrating RF excellence and next generation technologies to provide the best-in-class wireless experience without compromise. While packing several high performance features, the hardware is re-designed to deliver higher efficiencies in a more compact form-factor to make visually appealing Wi-Fi deployments commonplace.

Cisco DNA Support

Pairing the Cisco Catalyst 9115 Series Access Points with the Cisco Digital Network Architecture (Cisco DNA) allows for a total network transformation. Cisco DNA allows you to truly understand your network with real-time analytics, quickly detect and contain security threats, and easily provide networkwide consistency through automation and virtualization.

Cisco DNA with Software-Defined Access (SD-Access) is the network fabric that powers business. It is an open and extensible, software-driven architecture that accelerates and simplifies your enterprise network operations. The programmable architecture frees your IT staff from time-consuming, repetitive network configuration tasks so they can focus instead on innovation that positively transforms your business. By decoupling network functions from the hardware, you can build and manage your entire wired and wireless network from a single user interface. SD-Access enables policy-based automation from edge to cloud with foundational capabilities. These include:

  • Simplified device deployment
  • Unified management of wired and wireless networks
  • Network virtualization and segmentation
  • Group-based policies
  • Context-based analytics

The Cisco Catalyst 9117 Series Access Points support Software-Defined Access, Cisco’s leading enterprise architecture.
Working together, the Cisco Catalyst 9117 Series and Cisco DNA offer such features as:

  • Cisco DNA Spaces
  • Cisco Identity Services Engine
  • Cisco DNA Analytics and Assurance
  • And much more

The result? Your network stays relevant, becomes digital ready, and is the lifeblood of your organization.

Product Specifications:

Item Specification
Part numbers Cisco Catalyst 9117AXI Access Point: Indoor environments, with internal antennas
  • C9117AXI-x: Cisco Catalyst 9117
Regulatory domains: (x = regulatory domain)
Customers are responsible for verifying approval for use in their individual countries. To verify approval and to identify the regulatory domain that corresponds to a particular country, visit https://www.cisco.com/go/aironet/compliance.
Not all regulatory domains have been approved. As they are approved, the part numbers will be available on the Global Price List.
Software
  • Cisco Unified Wireless Network Software Release 8.9 or later
  • Cisco IOS ® XE Software Release 16.11 or later
Supported wireless LAN controllers
  • Cisco Catalyst 9800 Series Wireless Controllers
  • Cisco 3500, 5520, and 8540 Series Wireless Controllers and Cisco Virtual Wireless Controller
802.11n version 2.0 (and related) capabilities
  • 8x8 MIMO with four spatial streams for 5-GHz band
  • 4x4 MIMO with four spatial streams for 2.4-GHz band
  • Maximal Ratio Combining (MRC)
  • 20- and 40-MHz channels
  • PHY data rates up to 600 Mbps (40 MHz with 5 GHz)
  • Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
  • Cyclic Shift Diversity (CSD) support
802.11ac
  • 8x8 downlink MU-MIMO with eight spatial streams
  • MRC
  • 802.11ac beamforming
  • 20-, 40-, 80-, and 160-MHz channels
  • PHY data rates up to 3.5 Gbps at 5 GHz
  • Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
  • CSD support
802.11ax
  • 8x8 MIMO with eight spatial streams for 5-GHz band
  • 4x4 MIMO with four spatial streams for 2.4-GHz band
  • Downlink OFDMA
  • TWT
  • MRC
  • 802.11ax beamforming
  • 20-, 40-, 80-, and 160-MHz channels
  • PHY data rates up to 5 Gbps at 5 GHz
  • Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
  • CSD support
Integrated antenna
  • 2.4 GHz, peak gain 4 dBi, internal antenna, omnidirectional in azimuth
  • 5 GHz, peak gain 6 dBi, internal antenna, omnidirectional in azimuth
Interfaces
  • 1x 100, 1000, 2500, 5000 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz
  • Management console port (RJ-45)
  • USB 2.0 with up to 3.75W (enabled via future software)
Indicators
  • Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors
Dimensions (W x L x H)
  • Access point (without mounting bracket and mounting features): 8.70 x 8.70 x 1.94 in. (22 x 22 x 4.93 cm)
  • Access point (without mounting bracket): 8.70 x 8.70 x 2.19 in. (22 x 22 x 5.56 cm)
Weight
  • 3.02 lb (1.4 kg)
Input power requirements
  • 802.3at Power over Ethernet Plus (PoE+), Cisco Universal PoE (Cisco UPOE ®)
  • Cisco power injector, AIR-PWRINJ6=
  • 802.3af PoE
  • Cisco power injector, AIR-PWRINJ5= (Note: This injector supports only 802.3af)
Note: When 802.3af PoE is the source of power, both 2.4-GHz and 5-GHz radios will be reduced to 2x2 and Ethernet downgraded to 1 Gigabit Ethernet. In addition, the USB port will be off.
Environmental
  • Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)
  • Nonoperating (storage) altitude test: 25˚C, 15,000 ft.
  • Operating temperature: 32° to 122°F (0° to 50°C)
  • Operating humidity: 10% to 90% (noncondensing)
  • Operating altitude test: 40˚C, 9843 ft.
Note: When the ambient operating temperature exceeds 40°C, the access point will shift from 4x4 to 2x2 on both the 2.4-GHz and 5-GHz radios, uplink Ethernet will downgrade to 1 Gigabit Ethernet, and the USB interface will be disabled.
System memory
  • 2048 MB DRAM
  • 1024 MB flash
Warranty Limited lifetime hardware warranty
Item Specification
Power draw 802.3bt Cisco UPoE Full Feature
Power source Power type 2.4-GHz radio 5-GHz radio Link speed USB LLDP
802.3bt Cisco UPoE PoE 4x4 8x8 5 Gbps Y 28.9W
802.3at Full Feature*
Power source Power type 2.4-GHz radio 5-GHz radio Link speed USB LLDP
802.3at PoE 4x4 8x8 5 Gbps N 25.4W
802.3af reduced feature
Power source Power type 2.4-GHz radio 5-GHz radio Link speed USB LLDP
802.3af PoE 2x2 2x2 2.5 Gbps N 13.5W
* USB port can be enabled, but the 5-GHz radio will be reduced to 4x4.
Item Specification
Available transmit power settings 2.4 GHz
  • 23 dBm (200 mW)
  • 20 dBm (100 mW)
  • 17 dBm (50 mW)
  • 14 dBm (25 mW)
  • 11 dBm (12.5 mW)
  • 8 dBm (6.25 mW)
  • 5 dBm (3.13 mW)
  • 2 dBm (1.56 mW)
  • -1dBm (0.79mW)
  • -4dBm (0.39mW)
  • -6 dBm (0.25 mW)
5 GHz
  • 26 dBm (400 mW)
  • 23 dBm (200 mW)
  • 20 dBm (100 mW)
  • 17 dBm (50 mW)
  • 14 dBm (25 mW)
  • 11 dBm (12.5 mW)
  • 8 dBm (6.25 mW)
  • 5 dBm (3.13 mW)
  • 2 dBm (1.56 mW)
  • -1dBm (0.79mW)
  • -4dBm (0.39mW)
Frequency band and 20-MHz operating channels A (A regulatory domain):
  • 2.412 to 2.462 GHz; 11 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz)
  • 5.745 to 5.825 GHz; 5 channels
B (B regulatory domain):
  • 2.412 to 2.462 GHz; 11 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.500 to 5.700 GHz; 11 channels
  • 5.745 to 5.865 GHz; 7 channels
C (C regulatory domain):
  • 2.412 to 2.472 GHz; 13 channels
  • 5.745 to 5.825 GHz; 5 channels
D (D regulatory domain):
  • 2.412 to 2.462 GHz; 11 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.745 to 5.825 GHz; 5 channels
E (E regulatory domain):
  • 2.412 to 2.472 GHz; 13 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz)
F (F regulatory domain):
  • 2.412 to 2.472 GHz; 13 channels
  • 5.745 to 5.805 GHz; 4 channels
G (G regulatory domain):
  • 2.412 to 2.472 GHz; 13 channels
  • 5.745 to 5.865 GHz; 7 channels
H (H regulatory domain):
  • 2.412 to 2.472 GHz; 13 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.745 to 5.825 GHz; 5 channels
I (I regulatory domain):
  • 2.412 to 2.472 GHz; 13 channels
  • 5.180 to 5.320 GHz; 8 channels
K (K regulatory domain):
  • 2.412 to 2.472 GHz; 13 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.500 to 5.620 GHz; 7 channels
  • 5.745 to 5.805 GHz; 4 channels
N (N regulatory domain):
  • 2.412 to 2.462 GHz; 11 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.745 to 5.825 GHz; 5 channels
Q (Q regulatory domain):
  • 2.412 to 2.472 GHz; 13 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.500 to 5.700 GHz; 11 channels
R (R regulatory domain):
  • 2.412 to 2.472 GHz; 13 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.660 to 5,825 GHz; 8 channels (excludes 5.700 to 5.745 GHz)
S (S regulatory domain):
  • 2.412 to 2.472 GHz; 13 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.500 to 5.700 GHz; 11 channels
  • 5.745 to 5.825 GHz; 5 channels
T (T regulatory domain):
  • 2.412 to 2.462 GHz; 11 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.500 to 5.700 GHz; 12 channels
  • 5.745 to 5.825 GHz; 5 channels
Z (Z regulatory domain):
  • 2.412 to 2.462 GHz; 11 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz)
  • 5.745 to 5.825 GHz; 5 channels
Maximum number of nonoverlapping channels 2.4 GHz
  • 802.11b/g:
    • 20 MHz: 3
  • 802.11n:
    • 20 MHz: 3
  • 802.11ac/ax:
    • 20 MHz: 3
5 GHz
  • 802.11a:
    • 20 MHz: 26 FCC, 16 EU
  • 802.11n:
    • 20 MHz: 26 FCC, 16 EU
    • 40 MHz: 12 FCC, 7 EU
  • 802.11ac/ax:
    • 20 MHz: 26 FCC, 16 EU
    • 40 MHz: 12 FCC, 7 EU
    • 80 MHz: 5 FCC, 3 EU
    • 160 MHz 2 FCC, 1 EU
Compliance standards Safety:
  • IEC 60950-1
  • EN 60950-1
  • UL 60950-1
  • CAN/CSA-C22.2 No. 60950-1
  • AS/NZS 60950-1
  • UL 2043
  • Class III equipment
Emissions:
  • CISPR 32 (rev. 2015)
  • EN 55032 (rev. 2012/AC:2013)
  • EN 55032 (rev. 2015)
  • EN61000-3-2 (rev. 2014)
  • EN61000-3-3 (rev. 2013)
  • KN61000-3-2
  • KN61000-3-3
  • AS/NZS CISPR 32 Class B (rev. 2015)
  • 47 CFR FCC Part 15B
  • ICES-003 (rev. 2016 Issue 6, Class B)
  • VCCI (V3)
  • CNS (rev. 13438)
  • KN-32
  • TCVN 7189 (rev. 2009)
Immunity:
  • CISPR 24 (rev. 2010)
  • EN 55024/EN 55035 (rev. 2010)
Emissions and immunity:
  • EN 301 489-1 (v2.1.1 2017-02)
  • EN 301 489-17 (v3.1.1 2017-02)
  • QCVN (18:2014)
  • KN 489-1
  • KN 489-17
  • EN 60601 (1-1:2015)
Radio:
  • EN 300 328 (v2.1.1)
  • EN 301 893 (v2.1.1)
  • AS/NZS 4268 (rev. 2017)
  • 47 CFR FCC Part 15C, 15.247, 15.407
  • RSP-100
  • RSS-GEN
  • RSS-247
  • China regulations SRRC
  • LP0002 (rev 2018.1.10)
  • Japan Std. 33a, Std. 66, and Std. 71
RF safety:
  • EN 50385 (rev. Aug 2002)
  • ARPANSA
  • AS/NZS 2772 (rev. 2016)
  • EN 62209-1 (rev. 2016)
  • EN 62209-2 (rev. 2010)
  • 47 CFR Part 1.1310 and 2.1091
  • RSS-102
IEEE standards:
  • IEEE 802.3
  • IEEE 802.3ab
  • IEEE 802.3af/at
  • IEEE 802.11 a/b/g/n/ac/ax
  • IEEE 802.11h, 802.11d
Security:
  • 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA
  • 802.1X
  • Advanced Encryption Standard (AES)
Extensible Authentication Protocol (EAP) types:
  • EAP-Transport Layer Security (TLS)
  • EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2)
  • Protected EAP (PEAP) v0 or EAP-MSCHAPv2
  • EAP-Flexible Authentication via Secure Tunneling (EAP-FAST)
  • PEAP v1 or EAP-Generic Token Card (GTC)
  • EAP-Subscriber Identity Module (SIM)

Licensing and Software Packaging:

The Cisco Catalyst 9100 Series requires mandatory Smart Licensing. This provides ease of use for Cisco DNA license management, consumption, and tracking. The Cisco Catalyst 9100 Series uses packaging that includes vastly simplified base network packages (Network Essentials and Network Advantage) and term-based software packages (Cisco DNA Essentials, Cisco DNA Advantage) as add-ons. The Cisco DNA packages, in addition to on-box capabilities, also unlock additional functionality in Cisco DNA Center, enabling controller-based software-defined automation and assurance in your network.

The Cisco Catalyst 9100 Series can support 3 types of Cisco DNA license: Cisco DNA Essentials, Cisco DNA Advantage and Cisco DNA Premier. The Cisco DNA licenses provide Cisco innovations on the AP. The Cisco DNA license also includes the Network Essentials and Network Advantage licensing options which cover wireless fundamentals such as 802.1x authentication, QoS, PnP etc, telemetry and visibility, SSO, as well as security controls. These Network essentials and Network advantage components are perpetual and is valid till the life of the AP. Cisco DNA subscription licenses have to be purchased for a 3-, 5-, or 7-year subscription term. However, upon expiry of Cisco DNA license, Cisco DNA features will expire, whereas network essentials and network advantage features will remain.

Documentation:

Download the Cisco Catalyst 9117 Access Point Data Sheet (PDF).

Pricing Notes:

Cisco Catalyst 9100 Series Wi-Fi 6 Access Points
Cisco Catalyst 9117 Series
Catalyst 9117AX Series AP
Cisco Catalyst 9117AX Series Access Points
#C9117AXI-B
List Price: $1,695.00
Our Price: $564.12
USA: FREE Ground ShippingCatalyst 9117AX Series
Note: USB License Required
#C9117AXI-Z
List Price: $1,695.00
Our Price: $1,129.55
