Cisco Aironet 1815i Access Points
Deploy the future with 802.11ac Wave 2

Cisco Aironet 1815 Series Access Points Product Image

Cisco Wireless Access Points
Cisco Aironet 1815 Series
USA: FREE Ground ShippingCisco Aironet 1815i IEEE 802.11ac 866.70 Mbit/s Wireless Access Point - 5 GHz, 2.40 GHz
#AIR-AP1815I-B-K9
List Price: $495.00
Our Price: $248.00

More pricing below, click here!

Overview:

Ideal for small and medium-sized networks, the Cisco® Aironet® 1815i Access Point brings a full slate of Cisco high-performance functionality to the enterprise environment.

The Cisco Aironet 1815i delivers industry-leading wireless performance with support for the latest Wi-Fi standard, IEEE’s 802.11ac Wave 2 (Figure 1). It also meets the growing requirements of wireless networks by delivering a better user experience.

The 1815i extends support to a new generation of Wi-Fi clients, such as smartphones, tablets, and high-performance laptops that have integrated 802.11ac Wave 1 or Wave 2 support.

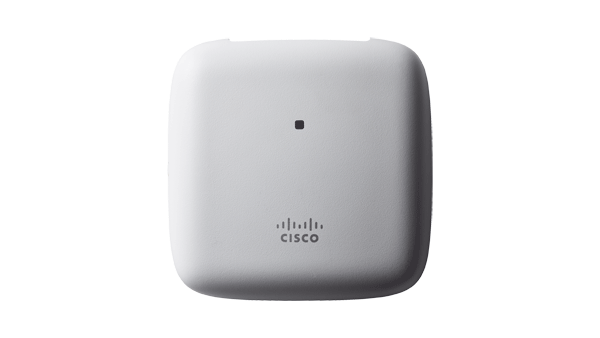

Figure 1. Cisco Aironet 1815i Access Point

fig

Features and Benefits:

By adhering to the 802.11ac Wave 2 standard, the 1815i offers a data rate of up to 867 Mbps on the 5-GHz radio. This exceeds the data rates offered by access points that support the 802.11n standard. It also enables a total aggregate dual-radio data rate of up to 1 Gbps. This provides the necessary foundation for enterprise and service provider networks to stay ahead of the performance expectations and needs of their wireless users.

Due to its convenience, in recent years corporate users have increasingly preferred wireless access as the form of network connectivity. Along with this shift, there is an expectation that wireless should not slow down users’ day-to-day work, but should enable a high-performance experience while allowing users to move freely. The 1815i delivers industry-leading performance for highly secure and reliable wireless connections and provides a robust mobility end-user experience. Table 1 lists the features and benefits of the 1815i.

Feature

Benefit

MU-MIMO

Multiuser (MU) multiple-input multiple-output (MU-MIMO) allows transmission of data to multiple 802.11ac Wave 2–capable clients simultaneously to improve the client experience. Prior to MU-MIMO, 802.11n and 802.11ac Wave 1 access points could transmit data to only one client at a time, typically referred to as single-user MIMO (SU‑MIMO).

802.11ac Wave 2 with 2x2:2 MIMO technology uses two spatial streams when operating in SU-MIMO or MU-MIMO mode, offering 867-Mbps rates for more capacity and reliability than competing access points.

Cisco Mobility Express solution

Flexible deployment through the Mobility Express solution is ideal for small to medium-sized deployments. Easy setup allows the 1815i to be deployed on networks without a physical controller.

Integrated Bluetooth 4.1

Integrated Bluetooth low-energy (BLE) 4.1 radio for location and asset tracking (future availability).

Prominent Features

Increased wireless performance

The 1815i access point supports the latest 802.11ac Wave 2 standard for higher performance, greater access, and higher-density networks. With simultaneous dual radios and dual band with 802.11ac Wave 2 MU-MIMO functionality, this access point can handle the increasing number of high-bandwidth devices that will soon become a common part of the network.

Wired access

The 1815i allows wired access via a single RJ-45 10/100/1000 auto-detection port. It supports full operation modes using PoE 802.3af power.

Mounting

These sleek access points with a small form factor are designed with flexible mounting options in mind. You can mount them directly on the ceiling or a wall. They are also easy to install.

Technical Specifications:

Item

Specification

Authentication and security

  Advanced Encryption Standard (AES) for Wi-Fi Protected Access 2 (WPA2)
  802.1X, RADIUS authentication, authorization, and accounting (AAA)
  802.11r
  802.11i

Software

  Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.4 or later
  Cisco Mobility Express (future availability)

Maximum clients

  Maximum number of associated wireless clients: 200 per Wi-Fi radio, in total 400 clients per access point

802.11ac

  2x2 single-user/multiuser MIMO with two spatial streams
  Maximal ratio combining (MRC)
  20-, 40- and 80-MHz channels
  PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz)
  Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx)
  802.11 Dynamic Frequency Selection (DFS)
  Cyclic shift diversity (CSD) support

Ethernet ports

  Authentication with 802.1X or MAC filtered
  Dynamic VLAN or per port
  Traffic locally switched or tunneled back to wireless LAN controller

Bluetooth (future availability)

  Integrated Bluetooth 4.1 (including BLE) radio
  Maximum transmit power: 4 dBm
  Antenna gain: 2 dBi

Data rates supported

802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps

802.11n data rates on 2.4 GHz:

MCS Index1

GI2 = 800 ns

GI = 400 ns

20-MHz Rate (Mbps)

20-MHz Rate (Mbps)

0

6.5

7.2

1

13

14.4

2

19.5

21.7

3

26

28.9

4

39

43.3

5

52

57.8

6

58.5

65

7

65

72.2

8

13

14.4

9

26

28.9

10

39

43.3

11

52

57.8

12

78

86.7

13

104

115.6

14

117

130

15

130

144.4



802.11ac data rates on 5 GHz:

MCS Index

Spatial Streams

GI = 800 ns

GI = 400 ns





20-MHz Rate (Mbps)

40-MHz Rate (Mbps)

80-MHz Rate (Mbps)

20-MHz Rate (Mbps)

40-MHz Rate (Mbps)

80-MHz Rate (Mbps)

0

1

6.5

13.5

29.3

7.2

15

32.5

1

1

13

27

58.5

14.4

30

65

2

1

19.5

40.5

87.8

21.7

45

97.5

3

1

26

54

117

28.9

60

130

4

1

39

81

175.5

43.3

90

195

5

1

52

108

234

57.8

120

260

6

1

58.5

121.5

263.3

65

135

292.5

7

1

65

135

292.5

72.2

150

325

8

1

78

162

351

86.7

180

390

9

1

180

390

200

433.3

0

2

13

27

58.5

14.4

30

65

1

2

26

54

117

28.9

60

130

2

2

39

81

175.5

43.3

90

195

3

2

52

108

234

57.8

120

260

4

2

78

162

351

86.7

180

390

5

2

104

216

468

115.6

240

520

6

2

117

243

526.5

130

270

585

7

2

130

270

585

144.4

300

650

8

2

156

324

702

173.3

360

780

9

2

360

780

400

866.7

Maximum number of non-overlapping channels

A (A regulatory domain):

  2.412 to 2.462 GHz; 11 channels
  5.180 to 5.320 GHz; 8 channels
  5.500 to 5.700 GHz; 8 channels
(excludes 5.600 to 5.640 GHz)
  5.745 to 5.825 GHz; 5 channels

B (B regulatory domain):

  2.412 to 2.462 GHz; 11 channels
  5.180 to 5.320 GHz; 8 channels
  5.500 to 5.720 GHz; 12 channels
  5.745 to 5.825 GHz; 5 channels

C (C regulatory domain):

  2.412 to 2.472 GHz; 13 channels
  5.745 to 5.825 GHz; 5 channels

D (D regulatory domain):

  2.412 to 2.462 GHz; 11 channels
  5.180 to 5.320 GHz; 8 channels
  5.745 to 5.825 GHz; 5 channels

E (E regulatory domain):

  2.412 to 2.472 GHz; 13 channels
  5.180 to 5.320 GHz; 8 channels
  5.500 to 5.700 GHz; 8 channels
(excludes 5.600 to 5.640 GHz)

F (F regulatory domain):

  2.412 to 2.472 GHz; 13 channels
  5.745 to 5.805 GHz; 4 channels

G (G regulatory domain):

  2.412 to 2.472 GHz; 13 channels
  5.745 to 5.865 GHz; 7 channels

H (H regulatory domain):

  2.412 to 2.472 GHz; 13 channels
  5.180 to 5.320 GHz; 8 channels
  5.745 to 5.825 GHz; 5 channels

I (I regulatory domain):

  2.412 to 2.472 GHz; 13 channels
  5.180 to 5.320 GHz; 8 channels

K (K regulatory domain):

  2.412 to 2.472 GHz; 13 channels
  5.180 to 5.320 GHz; 8 channels
  5.500 to 5.620 GHz; 7 channels
  5.745 to 5.805 GHz; 4 channels

N (N regulatory domain):

  2.412 to 2.462 GHz; 11 channels
  5.180 to 5.320 GHz; 8 channels
  5.745 to 5.825 GHz; 5 channels

Q (Q regulatory domain):

  2.412 to 2.472 GHz; 13 channels
  5.180 to 5.320 GHz; 8 channels
  5.500 to 5.700 GHz; 11 channels

R (R regulatory domain):

  2.412 to 2.472 GHz; 13 channels
  5.180 to 5.320 GHz; 8 channels
  5.660 to 5.700 GHz; 3 channels
  5.745 to 5.805 GHz; 4 channels

S (S regulatory domain):

  2.412 to 2.472 GHz; 13 channels
  5.180 to 5.320 GHz; 8 channels
  5.500 to 5.700 GHz; 11 channels
  5.745 to 5.825 GHz; 5 channels

T (T regulatory domain):

  2.412 to 2.462 GHz; 11 channels
  5.280 to 5.320 GHz; 3 channels
  5.500 to 5.700 GHz; 8 channels
(excludes 5.600 to 5.640 GHz)
  5.745 to 5.825 GHz; 5 channels

Z (Z regulatory domain):

  2.412 to 2.462 GHz; 11 channels
  5.180 to 5.320 GHz; 8 channels
  5.500 to 5.700 GHz; 8 channels
(excludes 5.600 to 5.640 GHz)
  5.745 to 5.825 GHz; 5 channels

Note: This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain.

Available transmit power settings

2.4 GHz

20 dBm (100 mW)

17 dBm (50 mW)

14 dBm (25 mW)

11 dBm (12.5 mW)

8 dBm (6.25 mW)

5 dBm (3.13 mW)

2 dBm (1.56 mW)

-1 dBm (0.78 mW)

5 GHz

20 dBm (100 mW)

17 dBm (50 mW)

14 dBm (25 mW)

11 dBm (12.5 mW)

8 dBm (6.25 mW)

5 dBm (3.13 mW)

2 dBm (1.56 mW)

-1 dBm (0.78mW)

Note: The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation for specific details.

Integrated antennas

  2.4 GHz, gain 2 dBi
  5 GHz, gain 4 dBi

Interfaces

  1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE)
  Management console port (RJ-45)

Indicators

  Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors

Dimensions (W x L x H)

  Access point (without mounting bracket): 6 x 6 x 1.3 in (150.8 x 150.8 x 33 mm)

Weight

  Access point without mounting bracket or any other accessories: 14 oz (400 g)

Environmental

  Operating
   Temperature: 32° to 104°F (0° to 40°C)
   Humidity: 10% to 90% (noncondensing)
   Max. altitude: 9843 ft (3000 m) @ 40°C
  Nonoperating (storage and transportation)
   Temperature: -22° to 158°F (-30° to 70°C)
   Humidity: 10% to 90% (noncondensing)
   Max. altitude: 15,000 ft (4500 m) @ 25°C

System

  1 GB DRAM
  256 MB flash
  710 MHz quad core

Input power requirements

  Power injector: AIR-PWRINJ5= or AIR-PWRINJ6=

Powering options

  802.3af/at Ethernet switch
  Optional Cisco power injectors (AIR-PWRINJ5=, AIR-PWRINJ6=)

Power draw

  8.3W (maximum, on PoE)

Physical security

  Torx security screw, included with the access point

Mounting

  Included with the access point: mounting bracket AIR-AP-BRACKET8

Accessories

  Mounting bracket: AIR-AP-BRACKET8= (available as spare)
  Physical security kit: AIR-SEC-50= (sold separately), with 50 pcs. Security screws used to secure access point onto wall-mounting bracket, 50 pcs. RJ-45 caps and 2 pcs. unlock keys used to block physical access to Ethernet ports

Warranty

Limited Lifetime Hardware Warranty

Compliance

  Safety:
   UL 60950-1
   CAN/CSA-C22.2 No. 60950-1
   UL 2043
   IEC 60950-1
   EN 60950-1
  Radio approvals:
   FCC Part 15.247, 15.407
   RSS-247 (Canada)
   EN 300.328, EN 301.893 (Europe)
   ARIB-STD 66 (Japan)
   ARIB-STD T71 (Japan)
   EMI and susceptibility (Class B)
   FCC Part 15.107 and 15.109
   ICES-003 (Canada)
   VCCI (Japan)
   EN 301.489-1 and -17 (Europe)
   EN 50385
  IEEE standards:
   IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d
   IEEE 802.11ac
  Security:
   802.11i, WPA2, WPA
   802.1X
   AES
  Extensible Authentication Protocol (EAP) types:
   EAP-Transport Layer Security (TLS)
   EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2)
   Protected EAP (PEAP) v0 or EAP-MSCHAPv2
   EAP-Flexible Authentication via Secure Tunneling (FAST)
   PEAP v1 or EAP-Generic Token Card (GTC)
   EAP-Subscriber Identity Module (SIM)
  Multimedia:
   Wi-Fi Multimedia (WMM)
  Other:
   FCC Bulletin OET-65C
   RSS-102

Documentation:

Download the Cisco Aironet 1815i Datasheet (PDF).
