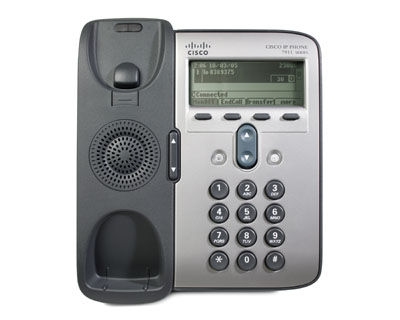

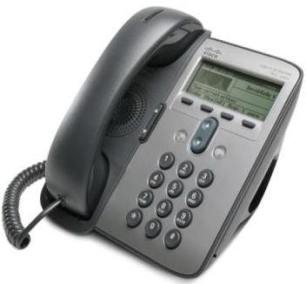

Cisco Unified IP Phone 7911G:
The Cisco Unified IP Phone 7911G addresses the needs of cubicle, retail, and manufacturing floor workers. This enhanced basic IP phone offers such features as:
- IEEE 802.3af Power over Ethernet and Cisco inline power
- Added memory to support enhanced features and applications
- Complete Cisco Unified CallManager line side security
- A similar user interface to the other new Cisco Unified IP phones
Product Overview
The Cisco® Unified Communications system of voice and IP communications products and applications enables organizations to communicate more effectively-enabling them to streamline business processes, reach the right resource the first time and impact the top and bottom line. The Cisco Unified Communications portfolio is an integral part of the Cisco Business Communications Solution-an integrated solution for organizations of all sizes which also includes network infrastructure, security, and network management products, wireless connectivity, and a lifecycle services approach, along with flexible deployment and outsourced management options, end-user and partner financing packages, and third-party communications applications.
The Cisco Unified IP Phone 7906G fills the communication needs of cubicle, retail, classroom, or manufacturing workers or anyone who conducts low to moderate telephone traffic. Four dynamic soft keys guide users through core business features and functions, while a pixel-based display combines intuitive features, calling information, and eXtensible Markup Language (XML) services into a rich user experience. The Cisco Unified IP Phone 7906G offers numerous important security features plus the choice of IEEE 802.3af Power over Ethernet (PoE), Cisco inline power, or local power through an optional power adaptor.
Features and Benefits:
The Cisco Unified IP Phone 7911G is designed to grow with your organization. A dynamic, soft key-activated feature set enables the phone to keep pace with your requirements through regular software upgrades. Moves, adds, and changes are easy; users can simply pick up their phones and move to a new location anywhere on the network. The Cisco Unified IP Phone 7911G also provides accessibility features to those with special needs.
| Features: |
Benefits: |
| Lighted Hold Key |
Lights when pressed to put a call on hold and stays lit until the held call has been resumed, or flashes if one call is held while another is engaged; is dark when no calls are on hold. |
| Lighted Menu Key |
Lights when pressed to access voicemail messages, call logs, network settings, user preferences, corporate directories, and XML services; stays lit while menu items are active. |
| Lighted message waiting indicator |
Lights when there is new voicemail and is visible on both the phone chassis and the handset; stays lit until new voicemail has been processed by the user. |
| Graphical display |
Graphical monochrome display with resolution of 192 x 64 pixels provides a scrollable 3-line intuitive access to calling features and text-based XML applications; the Cisco Unified IP Phone 7906G also supports audio-based XML applications. |
| Four soft keys buttons and a Scroll Toggle Bar |
Dynamically present calling options to the user; the scroll toggle bar allows easy movement through the displayed information. |
| Network features |
Cisco Discovery Protocol; IEEE 802.1 p/q tagging and switching. |
| Volume control |
A volume-control toggle to provide easy decibel-level adjustments of the handset, monitor speaker, and ringer. |
| Single-position foot stand |
Optimum display viewing and comfortable use of buttons and keys; the foot stand can be removed for wall mounting with mounting holes located on the base of the phone. |
| Multiple ring tones |
Offers more than 24 user-selectable ring tones. |
| American Disabilities Act (ADA) features |
A handset that meets Hearing Aid Compatibility (HAC) Act requirements is available; the handset also meets HAC requirements for magnetic coupling to approved HAC hearing aids. The dial pad also is ADA compliant. |
| Signaling protocol support |
Supported in Cisco Unified CallManager Versions 3.3(5)SR2, 4.1(3)SR3a, 4.2(1)SR1, and higher using Skinny Client Control Protocol (SCCP); supports both SCCP and Session Initiation Protocol (SIP) with Cisco Unified CallManager Version 5.0(2) and higher. |
| Codec support |
Provides G.711a, G.711u, G.729a, G.729b, and G.729ab audio-compression codecs. |
| Configuration options |
Provisioning of network parameters through Dynamic Host Configuration Protocol (DHCP). |
| Voice quality |
Comfort-noise generation and voice-activity-detection (VAD) programming on a system basis. |
