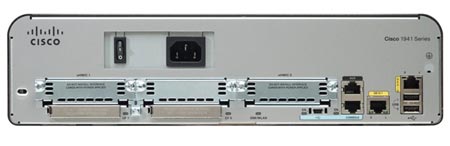

Cisco 1941 Integrated Services Router
Enabling Borderless Networks at the Branch
Sorry, this product is no longer available, please contact us for a replacement.
The Cisco 1941 Integrated Services Router (ISR) delivers highly secure data, mobility, and application services. Key features include:
- 2 integrated 10/100/1000 Ethernet ports
- 2 enhanced High-Speed WAN Interface Card slots that can host 2 single wide or 1 double wide and 1 single wide (e)HWIC
- 1 Internal Services1 Internal Services Module slot
- Fully integrated power distribution to modules supporting 802.3af Power over Ethernet (PoE) and Cisco Enhanced PoE
- Security Embedded hardware-accelerated VPN encryption
- Secure collaborative communications with Group Encrypted Transport VPN, Dynamic Multipoint VPN, or Enhanced Easy VPN
- Integrated threat control using Cisco IOS Firewall, Cisco IOS Zone-Based Firewall, Cisco IOS IPS, and Cisco IOS Content Filtering
- Identity management that uses authentication, authorization, and accounting (AAA), and public key infrastructure
Cisco 1900 Series Integrated Services Routers build on 25 years of Cisco innovation and product leadership. The new platforms are architected to enable the next phase of branch-office evolution, providing rich media collaboration and virtualization to the branch while maximizing operational cost savings The Integrated Services Routers Generation 2 platforms are future-enabled with multi-core CPUs, Gigabit Ethernet switching with enhanced POE, and new energy monitoring and control capabilities while enhancing overall system performance. Additionally, a new Cisco IOS Software Universal image and Services Ready Engine module enable you to decouple the deployment of hardware and software, providing a stable technology foundation which can quickly adapt to evolving network requirements. Overall, the Cisco 1900 Series offer unparalleled total cost of ownership savings and network agility through the intelligent integration of market leading security, unified communications, wireless, and application services.
Cisco 1941 builds on the best-in-class offering of the existing Cisco 1841 Integrated Services Routers by offering 2 models-Cisco 1941 and Cisco 1941W. In addition to the support of a wide range of wireless and wired connectivity options supported on Cisco 1941 Series, Cisco 1941W offers integration of IEEE 802.11n access point which is backwards compatible with IEEE 802.11a/b/g access points.
All Cisco 1900 Series Integrated Services Routers offer embedded hardware encryption acceleration, optional firewall, intrusion prevention, and application services. In addition, the platforms support the industries widest range of wired and wireless connectivity options such as T1/E1, xDSL, 3G, and GE.
Features & Benefits:
The Integrated Services Routers Generation 2 (ISR G2) provide superior services integration and agility. Designed for scalability, the modular architecture of these platforms enables you to grow and adapt with your business needs.
|Key features and benefits of the Cisco 1941 Integrated Services Router Series|
|Services on Demand||
|High Performance with Integrated Services||
|Energy Efficiency||The Cisco 1941 Series architecture provides energy savings features that include the following:
|Investment Protection||The Cisco 1941 Series maximizes investment protection by supporting:
Architecture & Modularity
The Cisco 1941 Series is architected to meet the application demands of today's branch offices with design flexibility for future applications. The modular architecture is designed to support expanding customer requirements, increased bandwidth, and fully integrated power distribution to modules supporting 802.3af Power over Ethernet (PoE) and Cisco Enhanced PoE (ePoE). Table 2 lists the architectural features and benefits of the Cisco 1941 Series
|Architectural Features and Benefits|
|Embedded IPSec/SSL VPN Hardware Acceleration||
|Integrated Gigabit Ethernet Ports||
|Innovative universal-serial-bus (USB)-based console access||
|Optional Integrated Power Supply for Distribution of Power Over Ethernet (PoE)||
|Integrated Wireless LAN||
Modularity Features and Benefits
The Cisco 1941 provides significantly enhanced modular capabilities offering investment protection for customers. Most of the modules available on previous generations of Cisco routers, such as the Cisco 1841 ISR, are supported on the Cisco 1941. Additionally, modules used on the Cisco 1941 can easily be interchanged with other Cisco routers to provide maximum investment protection. Taking advantage of common interface cards across a network greatly reduces the complexity of managing inventory requirements, implementing large network rollouts, and maintaining configurations across a variety of branch-office sizes.
|Modularity-Features and Benefits|
|Cisco Enhanced High Speed WAN Interface Card (EHWIC)
Cisco Internal Services Module (ISM)
|Compact Flash Slotss||• Two external Compact Flash slots are available on the Cisco 1941. Each slot can support high-speed storage densities upgradeable to 4GB in density.|
|USB 2.0 Ports||• Two high-speed USB 2.0 ports are supported. The USB ports enable another mechanism secure token capabilities and storage.|
Cisco IOS Software
The Cisco 1941 Series Integrated Services Routers deliver innovative technologies running on industry-leading Cisco IOS Software. Developed for wide deployment in the world's most demanding enterprise, access, and service provider networks, Cisco IOS Software Release 15 M & T provides support for a comprehensive portfolio of Cisco technologies, including new functionality and features delivered in Releases 12.4 and 12.4T, and new innovations that span multiple technology areas, including security, voice, high availability, IP Routing and Multicast, quality of service (QoS), IP Mobility, Multiprotocol Label Switching (MPLS), VPNs, and embedded management.
Cisco IOS Software Licensing and Packaging
A single Cisco IOS Universal image encompassing all functions is delivered with the platforms. You can enable advanced features by activating a software license on the Universal image. In previous generations of access routers, these feature sets required you to download a new software image. Technology packages and feature licenses, enabled through the Cisco software licensing infrastructure, simplify software delivery and decrease the operational costs of deploying new features.
Four major technology licenses are available on the Cisco 1941 Series Integrated Services Routers; you can activate the licenses through the Cisco software activation process.
- IP Base: This technology package is available as default.
- Security (SEC) or Security with No Payload Encryption (SEC-NPE)
Key Branch Office Services
The Cisco Integrated Services Routers are industry-leading routers that offer unprecedented levels of services integration. Designed to meet the requirements of the branch office, these platforms provide a complete solution with voice, security, mobility and data services. Businesses enjoy the benefit by deploying a single device that meets all their needs and save on capital and operational expenses.
Integrated Network Security for Data and Mobility
Security is essential to protect a business' intellectual property while also ensuring business continuity and providing the ability to extend the corporate workplace to employees who need anytime, anywhere access to company resources. As part of the Cisco' SAFE architectural framework that allows organizations to identify, prevent, and adapt to network security threats-the Cisco 1900 Series Integrated Services Routers facilitate secure business transactions and collaboration
The Cisco IOS Software Security technology package license for the Cisco 1900 Series offers a wide array of common security features such as advanced application inspection and control, threat protection, and encryption architectures for enabling more scalable and manageable VPN networks in one solution set. The Cisco 1941 Series offers native hardware-based encryption acceleration to provide greater IPSec throughput with less overhead for the router processor when compared with software-based encryption solutions. Cisco Integrated Services Routers offer a comprehensive and adaptable security solution for branch-office routers that include features such as:
- Secure connectivity: Secure collaborative communications with Group Encrypted Transport VPN (GETVPN), Dynamic Multipoint VPN (DMVPN), or Enhanced Easy VPN.
- Integrated threat control: Respond to sophisticated network attacks and threats using Cisco IOS Firewall, Cisco IOS Zone-Based Firewall, IOS IPS, IOS Content Filtering and Flexible Packet Matching (FPM).
- Identity Management: Intelligently protecting endpoints using technologies such as authentication, authorization, and accounting (AAA) and public key infrastructure (PKI).
Wireless and Mobility Services
The Cisco Integrated Services Routers supporting the Cisco Unified Wireless Network enable deployment of secure, manageable WLANs optimized for remote sites and branch offices, including fast secure mobility, survivable authentication, and simplified management. The Cisco Unified Wireless Network addresses critical points of potential failure and helps enable resiliency and survivability for WLANs at remote locations and branch offices. This solution protects the WLAN by providing fast recovery from a variety of faults that may occur. With Cisco's high availability for remote WLANs, hardware and software work together to enable rapid recovery from disruptions and help ensure fault transparency to users and network applications
The new Cisco 1941W with IEEE 802.11n integrated access point support both unified and autonomous deployments. This integrated Wi-Fi access point offers IEEE 802.11n draft 2.0 standard support for mobile access to high-bandwidth data, voice, and video applications through the use of multiple-input, multiple-output (MIMO) technology that provides increased throughput, reliability, and predictability. IEEE 802.11n wireless networks create a cohesive working environment by combining the mobility of wireless with the performance of wired networks. Cisco has innovative, next-generation wireless solutions that offer greater performance and extended reach for pervasive wireless connectivity. IEEE 802.11n technology delivers outstanding reliability and up to nine times the throughput of current IEEE 802.11 a/b/g networks. It makes wireless networks an integral part of every type of organization by offering the following benefits:
- Data rates of up to 600 Mbps support more users, devices, and mission-critical, bandwidth-intensive applications.
- New MIMO technology provides predictable WLAN coverage and reliable connectivity.
- Next-generation wireless technology provides superior investment protection to support emerging mobile applications.
These routers help extend corporate networks to secure remote sites while giving users access to the same applications found in corporate offices for both data and voice applications. When users require WLAN access, visibility and control of network security are even more critical at the remote site. The new fixed Cisco Integrated Services Routers meet this need with a single device that combines integrated IEEE 802.11a/b/g/n capabilities with security features such as Wi-Fi Protected Access (WPA), including authentication with IEEE 802.1X with the Cisco Light Extensible Authentication Protocol (LEAP) and Protected EAP (PEAP) and encryption with the WPA Temporal Key Integrity Protocol (TKIP).
Cisco third-generation (3G) wireless WAN (WWAN) modules combine traditional enterprise router functions, such as remote management, advanced IP services such as voice over IP (VoIP), and security, with mobility capabilities of 3G WAN access. Using high-speed 3G wireless networks, routers can replace or complement existing landline infrastructure, such as dialup, Frame Relay, and ISDN. Cisco 3G solutions support 3G standards High-Speed Packet Access (HSPA) and Evolution Data Only/Evolution Data Optimized (EVDO) providing you with a true multipath WAN backup and the ability to rapidly deploy primary WAN connectivity.
Integrated LAN Switching
The Cisco 1941 Integrated Services Router Series will support the EHWIC LAN modules when they become available in future. The Cisco 1941 Series support the existing single wide EtherSwitch HWIC and the double wide HWIC-D modules, which greatly expand the router's capabilities by integrating industry leading Layer 2 or Layer 3 switching.
As organizations continue to centralize and consolidate their branch IT infrastructure in an effort to reduce cost and complexity in the branch office, they are challenged to provide adequate user experience, ensure continuous service availability, and deliver business-relevant applications when and where they are needed. To address these challenges, the Cisco 1941 Series provides the ability to host Cisco, 3rd party, and custom applications on Cisco Services Ready Engine (SRE) module that seamlessly integrate into the router. The module has its own processor, network interface, and memory that operate independently of the host router resources, helping to ensure maximum concurrent routing and application performance while reducing physical space requirements, lowering power consumption, and consolidating management.
Cisco Services Ready Engine
The Cisco Services Ready Engine solution is available in a Internal Service Module (ISM) form-factor. The Internal Service Module hardware offers up to a seven times performance improvement over the previous-generation Advanced Integration Modules and provides a x86 processor. The Cisco SRE module enables on-demand provisioning of branch-office applications on the Cisco 1900 Series platforms so that you can deploy the right application, at the right time, in the right place. The hardware and software decoupling provided by the service-ready deployment model enables applications to be provisioned on the module at the time of its installation or remotely anytime thereafter. Supported solutions include Cisco Application Extension Platform (AXP), Cisco Wireless LAN Controller (WLC), and other applications under development. The Service Ready Engine enables organizations of various sizes to future-proof their network by allowing them to quickly deploy new branch-office applications without deploying new hardware, reducing the cost of rolling out branch-office services.
Managing Your Integrated Services Routers
Network Management applications are instrumental in lowering Operating Expenditures (OPEX) while improving network availability by simplifying and automating many of the day-to-day tasks associated with managing an end-to-end network. "Day-one-device-support" provides immediate manageability support for the Integrated Services Router enabling quick and easy deployment, monitoring and troubleshooting from Cisco and third party applications.
Organizations rely on Cisco, third-party and in-house developed network management applications to achieve their Opex and productivity goals. Underpinning those applications are the embedded management features available in every ISR. The new ISRs continue a tradition of broad and deep manageability features within the devices. Features such as IPSLA, EEM, Netflow, allow you to know what's going on in your network at all times. These features along with SNMP and SYSLOG support enable your organization's management applications.
|Cisco 1941 with Cisco IOS Software Feature and Protocol High-Level Support|
|Protocols||IPv4, IPv6, static routes, Open Shortest Path First (OSPF), Enhanced IGRP (EIGRP), Border Gateway Protocol (BGP), BGP Router Reflector, Intermediate System-to-Intermediate System (IS-IS), Multicast Internet Group Management Protocol (IGMPv3) Protocol Independent Multicast sparse mode (PIM SM), PIM Source Specific Multicast (SSM), Distance Vector Multicast Routing Protocol (DVMRP), IPSec, Generic Routing Encapsulation (GRE), Bi-Directional Forwarding Detection (BVD), IPv4-to-IPv6 Multicast, MPLS, L2TPv3, 802.1ag, 802.3ah, L2 and L3 VPN|
|Encapsulations||Ethernet, 802.1q VLAN, Point-to-Point Protocol (PPP), Multilink Point-to-Point Protocol (MLPPP), Frame Relay, Multilink Frame Relay (MLFR) (FR.15 and FR.16), High-Level Data Link Control (HDLC), Serial (RS-232, RS-449, X.21, V.35, and EIA-530), Point-to-Point Protocol over Ethernet (PPPoE), and ATM|
|Traffic management||QoS, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Hierarchical QoS, Policy-Based Routing (PBR), Performance Routing (PfR), and Network-Based Advanced Routing (NBAR)|
|Cisco IOS Software Management Capabilities|
|Feature||Description of Feature Supported by Cisco Integrated Services Routers|
|WSMA||The Web Services Management Agent (WSMA) defines a mechanism through which you can manage a network device, retrieve configuration data information, and upload and manipulate new configuration data. WSMA uses XML-based data encoding that is transported by the Simple Object Access Protocol (SOAP) for the configuration data and protocol messages.|
|EEM||Cisco IOS Embedded Event Manager (EEM) is a distributed and customized approach to event detection and recovery offered directly in a Cisco IOS Software device. It offers the ability to monitor events and take informational, corrective, or any desired EEM action when the monitored events occur or when a threshold is reached.|
|IPSLA||Cisco IOS IP Service-Level Agreements (SLAs) enable you to assure new business-critical IP applications, as well as IP services that use data, voice, and video, in an IP network.|
|SNMP, RMON, Syslog, NetFlow, TR-069||Cisco 1900 Series Integrated Services Routers also support SNMP, Remote Monitoring (RMON), syslog, NetFlow, and TR-069 in addition to the embedded management features previously mentioned.|
|Network Management Solutions|
|Device staging and configuration||Cisco Configuration Professional||
|Networkwide deployment, configuration, monitoring, and troubleshooting||CiscoWorks LMS||
|Networkwide staging, configuration, and compliance||CiscoWorks NCM||
|Security staging, configuration, and monitoring||Cisco Security Manager||
|Configuration and provisioning||Cisco Unified Provisioning Manager||
|Staging, deployment, and changes of licenses||Cisco License Manager||
|Staging, deployment, and changes to configuration and image files||Cisco Configuration Engine||
As businesses strive to lower the total cost of ownership in running their network and increase their overall employee productivity with more centralize and collaborative network applications, more intelligent branch office solutions are required. The Cisco 1941 Series offers these solutions by providing enhanced performance and increased modular density to support multiple services. The Cisco 1941 Series is designed to consolidate the functions of separate devices into a single, compact system that can be remotely managed.
|Product Specifications of Cisco 1941 Integrated Services Router|
|Services and Slot Density|
|Embedded hardware-based crypto acceleration (IPSec + SSL)||Yes|
|Total Onboard LAN 10/100/1000||2|
|Double-Wide SM Slots||0|
|Double-Wide EHWIC slots (use of a double-wide EHWIC slot will consume two EHWIC slots)||1|
|ISM Slots||1 (0 on the Cisco 1941W)|
|Memory (DDR2 Error Correction Code [ECC] ECC DRAM) - Default||512 MB|
|Memory (DDR2 ECC DRAM) - Maximum||2.0 GB|
|Compact Flash (external) - Default||slot 0: 256 MB
slot 1: none
|Compact Flash (external) - Maximum||slot 0: 4 GB
slot 1: 4 GB
|External USB flash memory slots (Type A)||2|
|USB Console Port (Type B) (up to 115.2 kbps)||1|
|Serial Console Port (up to 115.2 kbps)||1|
|Serial Auxiliary Port (up to 115.2 kbps||1|
|Power Supply Options||AC, POE|
|Redundant Power Supply Support||No|
|AC Input Voltage||100-240 V ~|
|AC Input Frequency||47-63 Hz|
|AC Input Current range AC Power Supply (Max) (Amps)||1.5-0.6|
|AC Input Surge Current||<50 A|
|Typical Power (No Modules)||35 W|
|Maximum Power capacity with AC power supply||110 W|
|Maximum Power capacity with PoE power supply (platform only)||110 W|
|Maximum PoE device power capacity with PoE power supply||80 W|
|Dimensions (H x W x D)||3.5 in x 13.5 in x 11.5 in|
|Rack Height||2 RU|
|Rack-mount 19in. (48.3 cm) EIA||Included|
|Wall-mount (refer to installation guide for approved orientation)||Yes|
|Weight-with AC power supply (no modules)||12 lbs|
|Weight-with POE power supply (no modules)||12.8 lbs|
|Maximum Weight-Fully Configured||14 lbs|
|Airflow||Front to Side|
|Temperature-5906 feet (1800 m) max. altitude||0-40°C (32-104°F)|
|Temperature-9843 feet (3000 m) max. altitude||0-25°C (32-77°F)|
|Altitude||3000 m (10000 ft)|
|Humidity||10 to 85% RH|
|Acoustic: Sound Pressure (Typ/Max)||26/46 dBA|
|Acoustic: Sound Power (Typ/Max)||36/55 dBA|
|Temperature||-40 - 70 oC (-40 - 158 oF)|
|Humidity||5 to 95%RH|
|Altitude||4570m (15000 ft)|
CAN/CSA C22.2 No. 60950-1
|EMC||47 CFR, Part 15
ICES-003 Class A
EN55022 Class A
CISPR22 Class A
AS/NZS 3548 Class A
EN 61000 (Immunity)
EN 55024, CISPR 24
ITU-T G.823, G.824
Download the Cisco 1900 Series Integrated Services Routers Datasheet (PDF).
