Cisco TelePresence SX20 Quick Set
Create a Powerful, Flexible Telepresence System

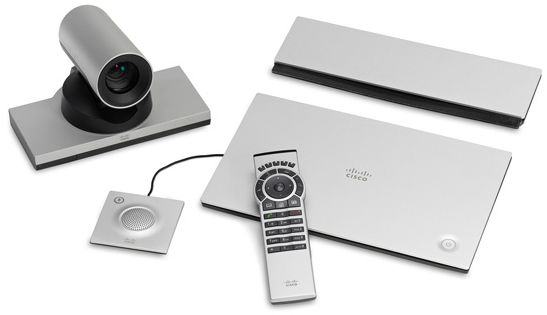

Cisco TelePresence SX20 Quick Set
Cisco Unified Communications
Cisco TelePresence SX20 Quick Set
Cisco TelePresence SX20 Quick Set with Precision HD 1080p 2.5x Camera
#CTS-SX20-PHD2.5X-K9
Our Price: Call for Pricing!
Cisco TelePresence SX20 Quick Set with Precision HD 1080p 4x Camera
#CTS-SX20-PHD4X-K9
Our Price: Call for Pricing!
Cisco TelePresence SX20 Quick Set with Precision HD 1080p 12x Camera
#CTS-SX20-PHD12X-K9
Our Price: Call for Pricing!

Click here for more options and pricing!

Overview:

The Cisco TelePresence SX20 Quick Set (SX20 Quick Set) can transform any flat panel display into a sleek and powerful telepresence system. The SX20 Quick Set is designed to deliver high definition video and multiparty conferencing with the flexibility to accommodate various room size and configurations - all at a value price. The SX20 Quick Set supports embedded capability for multipoint support with Cisco TelePresence MultiSite technology, enabling users to add three additional participants to a telepresence call.

SX20 Quick Set combines a powerful codec, three camera choices, and a dual-display option in an easy-to-deploy and easy-to-use solution. Whether you're a small business just getting started with telepresence or a large enterprise looking to expand your existing deployment, the SX20 Quick Set delivers the performance you would expect from more expensive systems - in a compact and feature-rich package. Cisco TelePresence SX20 Quick Set is designed to truly extend the power of in-person to everyone, everywhere.

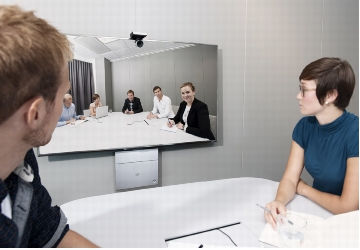

Figure 1. Cisco TelePresence SX20 Quick Set in a Small Meeting Room Environment
Figure 1. Cisco TelePresence SX20 Quick Set in a Small Meeting Room Environment

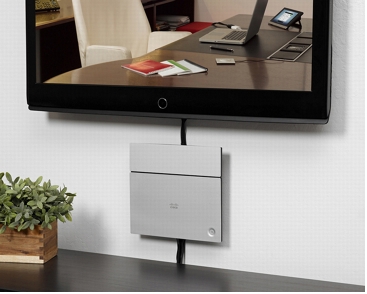

Figure 2. Cisco TelePresence SX20 Quick Set on Wall Mount
Figure 2. Cisco TelePresence SX20 Quick Set on Wall Mount

Create a Powerful, Flexible Telepresence System

The Cisco TelePresence SX20 Quick Set is a flexible solution that helps you easily turn any flat panel display into a powerful telepresence system for small to medium-size meeting rooms. The SX20 Quick Set delivers high-definition video quality, multiparty conferencing, and three different camera options to accommodate room size and configurations-all at a value price. The SX20 Quick Set provides the performance expected of more expensive systems, in a sleek, compact, multi-featured package. This powerful quick set is ideal for small businesses just starting out with telepresence or large enterprises looking to broaden the benefits of telepresence throughout their organizations.

  • Solution transforms a flat panel display into a high-definition telepresence system
  • Embedded MultiSite capability gives you the ability to add three more participants to a call
  • Multimedia and presentation sharing happens at the touch of a button
  • Simple, intuitive connections make for easy set-up

Features and Benefits:

Design features

  • Transforms a flat panel display into a 1080p high-definition meeting space
  • Intuitive connections make setup as easy as connecting a DVD player
  • Provides up to 1080p60 resolution - compatible with standards-based video without loss of features
  • Sleek, compact design

Application features

  • Multimedia and presentations can be shared at the touch of a button
  • Basic API available over IP (Telnet or Secure Shell Protocol [SSH])
  • Dual-display option available
  • High-definition content sharing up to 1080p15 resolution
  • One button to push (OBTP) to start a meeting

Performance features

  • Optimal definition up to 1080p60
  • H.323/SIP calls up to 6 Mbps
  • Built-in individually transcoded multipoint conferencing offers ability to add three additional participants
  • Easy provisioning and self-configuration with Cisco Unified Communications Manager (CUCM), Cisco TelePresence Video Communications Server (VCS), or Cisco WebEx TelePresence
  • Takes advantage of the Cisco TelePresence Total Solution approach, including Cisco TelePresence Multiway features, recording and streaming, and firewall traversal services
  • Cisco Unified Communications Manager native support (requires Cisco Unified Communications Manager Version 8.6 or higher)

Technical Specifications:

Product Specifications
Default components in SX20 Quickset SX20 Codec, Cisco TelePresence PrecisionHD Camera - (option of 1080p2.5, 1080p4xS2 or - 1080p12x) Cisco TelePresence Table Microphone 20, remote control, cables, and power supply
Optional components
  • Cisco TelePresence Touch 8
  • Wall mount kit
  • Additional microphone
Power
  • Auto-sensing power supply
  • 100 - 240 VAC, 50/60 Hz
  • Maximum 40 watts for codec and main camera
Operating Temperature and Humidity
  • 0° C to 40° C (32° F to 104° F) ambient temperature
  • 10% to 90% Relative Humidity (RH)
Storage and Transport Temperature -20° C to 60° C (-4° F to 140° F) at RH 10% - 90% (non -condensing)
SX20 Codec Dimensions
  • Width: 11.8 inches (30.0 cm)
  • Height: 1.4 inches (3.4 cm)
  • Depth: 7.1 inches (18.0 cm)
  • Weight: 3.1 pounds (1.4 kg)
Video and Audio Specifications
Bandwidth  H.323 and SIP up to 6 Mbps
Minimum bandwidth for resolution/frame rate
  • 720p30 from 768 kbps
  • 720p60 from 1152 kbps
  • 1080p30 from 1472 kbps
  • 1080p60 from 2560 kbps
Firewall Traversal
  • Cisco TelePresence Expressway Technology
  • H.460.18, H.460.19 firewall traversal
Video Standards H.263, H.263+, H.264
Video Features
  • Native 16:9 widescreen
  • Advanced screen layouts
  • Intelligent video management
  • Local auto-layout
Video inputs (two inputs) One HDMI and One DVI-I (Analog and Digital): Supported Formats:
  • 640 x 480
  • 720 x 480
  • 720 x 576
  • 800 x 600
  • 848 x 480
  • 1024 x 768
  • 1152 x 864
  • 1280 x 720
  • 1280 x 1024
  • 1280 x 768
  • 1280 x 800
  • 1280 x 960
  • 1360 x 768
  • 1366 x 768
  • 1400 x 1050
  • 1440 x 900
  • 1680 x 1050
  • 1920 x 1080
    Extended Display Identification Data (EDID)
Video outputs (one output) Two HDMI Outputs Supported Formats:
  • 1920 x 1080 @ 60 fps (1080p60)
  • 1920 x 1080 @ 50 fps (1080p50)
  • 1280 x 720 @ 60 fps (720p60)
  • 1280 x 720 @ 50 fps (720p50)
  • 1366 x 768 @ 60 fps (WXGA)
  • 1360 x 768 @ 60 fps (WXGA)
  • 1280 x 768 @ 60 fps (WXGA)
    VESA Monitor Power Management
    EDID

Live Video Resolutions (Encode and Decode):

  • 176 x 144 @ 30 or 60 fps (QCIF) (decode only)
  • 352 x 288 @ 30 or 60 fps (CIF)
  • 512 x 288 @ 30 or 60 fps (w288p)
  • 576 x 448 @ 30 or 60 fps (448p)
  • 768 x 448 @ 30 or 60 fps (w448p)
  • 704 x 576 @ 30 or 60 fps (4CIF)
  • 1024 x 576 @ 30 or 60 fps (w576p)
  • 640 x 480 @ 30 or 60 fps (VGA)
  • 800 x 600 @ 30 or 60 fps (SVGA)
  • 1024 x 768 @ 30 or 60 fps (XGA)
  • 1280 x 768 @ 30 or 60 fps (WXGA)
  • 1280 x 720 @ 30 or 60 fps (HD720p)
  • 1920 x 1080 @ 30 or 60 fps (HD1080p)
Audio standards
  • G.711
  • G.722
  • G.722.1
  • 64/128 kbps MPEG4 AAC-LD
Audio features
  • CD-quality 20-kHz stereo
  • Two acoustic echo cancellers
  • Automatic gain control
  • Automatic noise reduction
  • Active lip synchronization
Audio Inputs (Four Inputs)
  • Two microphones, 4-pin minijack
  • One minijack for line-in (stereo)
  • One audio in from camera (HDMI)
Audio Outputs (Two Outputs)
  • One minijack for line out (stereo)
  • One HDMI, (digital main audio)
Dual Stream
  • H.239 (H.323) dual stream
  • BFCP (SIP) dual stream
  • Support resolutions up to 1080p (1920 x 1080)
MultiPoint Support
  • Four-way embedded SIP/H.323 MultiPoint reference MultiSite
  • Cisco TelePresence Multiway support (requires Cisco TelePresence Video Communication Server [Cisco VCS] and Cisco TelePresence MCU)
  • Ability to natively join multipoint conferences hosted on Cisco Telepresence Multipoint Switch (CTMS)
MultiSite Features (Embedded Multipoint)
  • Adaptive SIP/H.323 MultiSite; resolution up to 576p30
  • 3-way resolution up to 720p30
  • 4-way resolution up to 576p30
  • Full individual audio and video transcoding
  • Individual layouts in multisite continuous presence
  • H.323/SIP/VoIP in the same conference
  • Support for Presentation (H.239/BFCP) from any participant at resolutions up to 1080p15/SXGA
  • Best Impression (automatic continuous presence layouts)
  • H.264, encryption and dual stream from any site
  • IP Downspeeding
  • Dial in and dial out
  • Conference rates up to 6 Mbps
Network, Security and Management Specifications
Protocols
  • H.323
  • SIP
  • ISDN (requires Cisco TelePresence ISDN Link)
Embedded Encryption
  • H.323 and SIP point-to-point
  • Standards-based: H.235 v3 and Advanced Encryption Standard (AES)
  • Automatic key generation and exchange
  • Supported in dual stream
IP network features
  • Domain Name System (DNS) lookup for service configuration
  • Differentiated Services (QoS)
  • IP adaptive bandwidth management (including flow control)
  • Auto gatekeeper discovery
  • Dynamic playout and lip-sync buffering
  • H.245 Dual Tone Multifrequency (DTMF) tones in H.323
  • Date and time support with Network Time Protocol (NTP)
  • Packet loss-based down-speeding
  • DNS-based URI dialing
  • TCP/IP
  • Dynamic Host Configuration Protocol (DHCP)
  • 802.1x network authentication
  • 802.1Q Virtual LAN
  • 802.1p (QoS and class of service [QoS])
  • ClearPath
  • Medianet: Mediatrace and Metadata
Cisco Unified Communications Manager (Requires Cisco Unified Communications Manager Version 8.6 or Later)
  • Native registration with Cisco Unified Communications Manager
  • Basic Cisco Unified Communications Manager provisioning
  • Software upgrade from Cisco Unified Communications Manager
  • Cisco Discovery Protocol and DHCP option 150 support
  • Basic telephony features such as hold/resume/transfer and Corporate Directory lookup
IPv6 Network Support
  • Single call stack support for both H323 and SIP
  • Dual-stack IPv4 and IPv6 for DHCP, SSH, HTTP, HTTPS, DNS, DiffServ
  • Support for both Static and Automatic IP configuration (stateless address auto configuration)
Security features
  • Management via Secure HTTP (HTTPS) and Secure Shell (SSH) Protocol
  • IP administration password
  • Administrator Menu password
  • Disable IP services
  • Network settings protection
Network Interfaces One LAN and Ethernet (RJ-45) 10/100/1000 Mbit
Other Interfaces Two USB ports for future usage
System management
  • Support for the Cisco TelePresence Management Suite
  • Total management using embedded SNMP, Telnet, SSH, XML, SOAP
  • Remote software upload: using web server, secure copy (SCP), HTTP, HTTPS
  • Cisco TelePresence Touch (optional)
  • Remote control and on-screen menu system
Directory Services
  • Support for local directories (My Contacts)
  • Corporate directory
  • Unlimited entries using server directory supporting LDAP and H.350 (requires Cisco TelePresence Management Suite)
  • Unlimited number for corporate directory (through Cisco TelePresence Management Suite)
  • Received calls with date and time
  • Placed calls with date and time
  • Missed calls with date and time

Camera Overview
2.5x optical zoom 4x optical zoom 12x optical zoom
2.5x optical zoom (5x with digital*) 4x optical zoom (8x with digital*) 12x optical zoom
Motorized +5°/-25° tilt, +/- 30° pan Motorized +15°/-25° tilt, +/- 90° pan Motorized +15°/-25° tilt, +/- 90° pan
51.5° vertical field of view 43.5° vertical field of view 43.5° vertical field of view
83° horizontal field of view 70° horizontal field of view 72° horizontal field of view
F 2.0 F 1.7 F 1.7
1920 x 1080 pixels progressive @ 60 fps 1920 x 1080 pixels progressive @ 60 fps 1920 x 1080 pixels progressive @ 60 fps
Automatic or manual focus, brightness, and white balance Automatic or manual focus, brightness, and white balance Automatic or manual focus, brightness, and white balance
Far-end camera control Far-end camera control Far-end camera control
Dual HDMI/Camera Control and USB output Dual HDMI/Camera control HDMI, HD-SDI output, and daisy chain
Upside-down mounting, picture flips automatically Upside-down mounting, manual picture flip Upside-down mounting, picture flips automatically
Focus distance 0.3 m - infinity Focus distance 0.3 m - infinity Focus distance 0.3 m - infinity


Regulatory Compliance

  • Directive 2006/95/EC (Low-Voltage Directive) - Standard IEC/EN 60950-1
  • Directive 2004/108/EC (EMC Directive) - Standard EN 55022, Class A - Standard EN 55024 - Standard EN 61000-3-2/-3-3
  • Approved according to UL 60950-1 and CAN/CSA-C22.2 No. 60950-1-07
  • Complies with FCC CFR 47 Part 15 Class A
* needs future software upgrade

Documentation:

Download the Cisco TelePresence SX20 Quick Set Datasheet (PDF).
