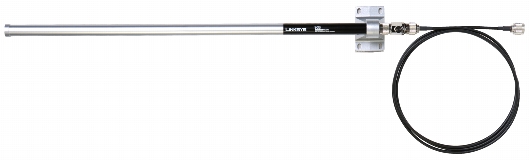

HGA9N High-Gain Omnidirectional Antenna for N-Type Connectors
Cisco Small Business Wireless Access Points (Linksys Business Series)
| Cisco Access Points | ||
|---|---|---|
| Cisco HGA9N High-Gain Omni-directional Antenna for N-Type Connectors | ||
| Cisco Linksys HGA9N High Gain Omni-Directional Antenna for N-Type Connectors | #HGA9N List Price: $151.00 Our Price: $116.00 |
|
Increase the Wireless Network Coverage Area for Your Small Business
Highlights:
- Improves signal strength to increase range and provide coverage in hard-to-reach areas
- Weatherproof, lightning-protected casing for safe deployment on the exterior of your building
- Easy installation, with no software or configuration required
Product Overview:
Use the Cisco HGA9N High-Gain Omnidirectional Antenna for N-Type Connectors to increase the range of your wireless network. Attach the antenna to the exterior access point to increase both the effective strength of the outgoing signals and the receive sensitivity of the incoming signals.
The added signal strength and sensitivity also improve midrange communication reliability, because every packet comes through loud and clear, reducing retransmissions due to weak signal reception.
The 9-dBi signal strength allows the signals to travel farther and provides better signal detection in a 360-degree radius.
The weatherproof housing is able to withstand harsh outdoor conditions. The antenna also includes a lightning surge protector, mounting kit, and cable.
Features:
- National Electrical Manufacturers Association (NEMA) rated, lightning-protected, weatherproof housing
- 9-dBi omnidirectional antenna gives clients unconstrained access
- Easy to install - no configuration necessary
Technical Specifications:
| Cisco HGA9N High-Gain Omnidirectional Antenna Specification | |
|---|---|
| Ports | 1 N-type female connector |
| Cabling type | Coax: 50-ohm impedance |
| Electrical Specifications | |
| Frequency range | 2400 MHz to 2500 MHz |
| Gain | 9 dBi |
| Voltage standing wave ratio (VSWR) | 1.92 : 1 max |
| Polarization | Linear, vertical |
| Half-power beamwidth (HPBW): horizontal | 360° |
| HPBW: vertical | 11° |
| Maximum power | 4W |
| Impedance | 50 ohms |
| Range | Maximum outdoor range:* 120 m (0.078 mi) at 54 Mbps, 880 m (0.55 mi) at 11 Mbps *Range estimation is based on 1 Cisco WAP200E Access Point with Cisco HGA9N antenna connecting to wireless client with 0-dBi antenna under ideal line-of-sight conditions |
| Environmental | |
| Dimensions W x H x D | 2.95 x 24.61 x 2.20 in. (75 x 625 x 56 mm) |
| Unit Weight | 0.44 lb (0.2 kg) |
| Mounting options | Mounting kit provided |
| Certification | FCC, IC |
| Operating temperature | -22° to 176°F (-30° to 80°C) |
| Storage temperature | -22° to 176°F (-30° to 80°C) |
| Operating humidity | 5% to 95% noncondensing |
| Storage humidity | 5% to 95% noncondensing |
| Package Contents |
|
| Minimum Requirements | Cisco WAP200E Access Point |
| Product Warranty | 90-day limited hardware warranty with return to factory replacement. |
Documentation:
Download the Cisco HGA9N High-Gain Omnidirectional Antenna for N-Type Connectors Datasheet (PDF).
