Cisco Catalyst 9300 Series Switches
Built for Security, IoT, Mobility, and Cloud

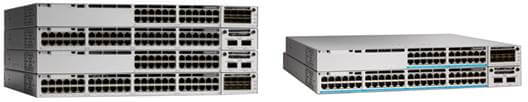

Cisco Catalyst 9300 Series Switches
Cisco Catalyst 9300 Series
Cisco Catalyst 9300 Series Switches
USA: FREE Ground ShippingCatalyst 9300 48-port 2.5G (12 mGig) UPOE, Network Essentials
#C9300-48UXM-E
List Price: $12,140.00
Our Price: $7536.34

More pricing below, click here!

Cisco Catalyst 9300 Series Switches:

The Cisco® Catalyst® 9300 Series Switches are Cisco’s lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. They are the next generation of the industry’s most widely deployed switching platform. The Catalyst 9300 Series switches form the foundational building block for Software-Defined Access (SD-Access), Cisco’s lead enterprise architecture. At 480 Gbps, they are the industry’s highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.

The Catalyst 9300 Series is designed for Cisco StackWise® technology, providing flexible deployment with support for nonstop forwarding with stateful switchover (NSF/SSO), for the most resilient architecture in a stackable (sub-50-ms) solution. The highly resilient and efficient power architecture features Cisco StackPower®, which delivers high-density Cisco Universal Power Over Ethernet (Cisco UPOE®) and Power over Ethernet Plus (PoE+) ports. The switches are based on the Cisco Unified Access™ Data Plane 2.0 (UADP) 2.0 architecture which not only protects your investment but also allows a larger scale and higher throughput. A modern operating system, Cisco IOS XE with programmability offers advanced security capabilities and Internet of Things (IoT) convergence.

The Foundation of Software-Defined Access

Advanced persistent security threats. The exponential growth of Internet of Things (IoT) devices. Mobility everywhere. Cloud adoption. All of these require a network fabric that integrates advanced hardware and software innovations to automate, secure, and simplify customer networks. The goal of this network fabric is to enable customer revenue growth by accelerating the rollout of business services.

The Cisco Digital Network Architecture (Cisco DNA™) with SD-Access is the network fabric that powers business. It is an open and extensible, software-driven architecture that accelerates and simplifies your enterprise network operations. The programmable architecture frees your IT staff from time-consuming, repetitive network configuration tasks so they can focus instead on innovation that positively transforms your business. SD-Access enables policy-based automation from edge to cloud with foundational capabilities. These include:

  • Simplified device deployment
  • Unified management of wired and wireless networks
  • Network virtualization and segmentation
  • Group-based policies
  • Context-based analytics

Cisco ONE Software

Cisco ONE™ Software offers a valuable and flexible way to buy software for the access, WAN, and data center domains. At each stage in the product lifecycle, Cisco ONE Software helps make buying, managing, and upgrading your network and infrastructure software easier. Cisco ONE Software provides:

  • Flexible licensing models to smoothly distribute customers’ software spending over time
  • Investment protection for software purchases through software services–enabled license portability
  • Access to updates, upgrades, and new technology from Cisco through Cisco®Software Support Services (SWSS)
  • Lower cost of entry with the new Cisco ONE Subscription for Switching model

Cisco ONE for Access lets you manage your entire switching structure as a single, converged component. With one management system and one policy for wired and wireless networks, it offers an efficient way to provide more secure access.

Features and Benefits:

Product Highlights

  • Highest wireless scale with Wave 2 access points supported on a single switch with select models
  • UADP 2.0 Application-Specific Integrated Circuit (ASIC) with programmable pipeline and microengine capabilities, along with template-based, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality of Service (QoS) entries
  • Intel® x86 CPU complex with 8-GB memory, and 16 GB of flash and external USB 3.0 SSD pluggable storage slot to host containers
  • USB 2.0 slot to load system images and set configurations
  • Up to 480 Gbps of local stackable switching bandwidth
  • Flexible and dense uplink offerings with 1G, Multigigabit, 10G, and 40G, with platform readiness for 25G
  • Flexible downlink options with 1G and Multigigabit links
  • Leading PoE capabilities with up to 384 ports of PoE per stack, 60W Cisco UPOE, and PoE+
  • Intelligent Power Management with Cisco StackPower technology, providing power stacking among members for power redundancy
  • Line-rate, hardware-based Flexible NetFlow (FNF), delivering flow collection of up to 64,000 flows
  • IPv6 support in hardware, providing wire-rate forwarding for IPv6 networks
  • Dual-stack support for IPv4/IPv6 and dynamic hardware forwarding table allocations, for ease of IPv4-to-IPv6 migration
  • Cisco IOS XE, a modern operating system for the enterprise with support for model-driven programmability including NETCONF, RESTCONF, YANG, on-box Python scripting, streaming telemetry, container-based application hosting, and patching for critical bug fixes. The OS also has built-in defenses to protect against runtime attacks
  • SD-Access: The Cisco Catalyst 9300 Series Switches form the foundational building block for SD-Access, Cisco’s lead enterprise architecture:
    • Policy-based automation from edge to cloud
    • Simplified segmentation and micro-segmentation, with predictable performance and scalability
    • Automation through the Cisco Application Policy Infrastructure Controller Enterprise Module (APIC-EM)
    • Policy handled through the Cisco Identity Services Engine (ISE)
    • Network assurance provided through the Network Data Platform
    • Faster launch of new business services and significantly improved issue resolution time
  • Plug and Play (PnP) enabled: A simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or updates to an existing network
  • Advanced security:
    • Encrypted Traffic Analytics (ETA): You benefit from the power of machine learning to identify and take actions toward threats or anomalies in your network, including malware detection in encrypted traffic (without decryption) and distributed anomaly detection
    • Support for AES-256 with the powerful MACsec 256-bit encryption algorithm available on all models
    • Trustworthy systems: Hardware anchored Secure Boot and Secure Unique Device Identification (SUDI) support for Plug and Play, to verify the identity of the hardware and software

Features

Network Essentials

Network Advantage

Cisco DNA Essentials

Cisco DNA Advantage

Cisco ONE Advantage

Switch features

Switch fundamentals
Spanning Tree Protocol (STP), Rapid STP (RSTP), VLAN Trunking Protocol (VTP), trunking, Private VLAN (PVLAN), dynamic voice VLAN, IPv6, PnP, Cisco Discovery Protocol, 802.1Q tunneling (Q-in-Q), Routed Access – OSPF and RIP, Policy-Based Routing (PBR), Virtual Router Redundancy Protocol (VRRP), Internet Group Management Protocol (IGMP), PIM Stub, Weighted Random Early Detection (WRED), First Hop Security (FHS), 802.1X, MACsec-128, Control Plane Policing (CoPP), Cisco TrustSec® SGT Exchange Protocol (SXP), IP SLA Responder, SSO, EIGRP Stub, Class-Based Weighted Fair Queuing (CBWFQ), hierarchical QoS (H-QoS), Application Reporting, Syslog, SNMP

Advanced switch capabilities and scale
BGP, EIGRP, Hot Standby Router Protocol (HSRP), IS-IS, Bootstrap Router (BSR), Multicast Source Discovery Protocol (MSDP), Bidirectional PIM (PIM-BIDIR), Label Switched Multicast (LSM), IP SLA, Full OSPF

Network segmentation
VPN Routing and Forwarding (VRF), Virtual Extensible LAN (VXLAN), Cisco Locator/ID Separation Protocol (LISP), Cisco TrustSec, SD-Wireless, Multiprotocol Label Switching (MPLS), Layer 3 VPN (L3VPN), Multicast VPN (mVPN)

Optimized network deployments
mDNS gateway

Automation
Netconf/YANG, PnP Agent, ZTP/Open PnP

Advanced automation
Containers, Python, Cisco IOS Embedded Event Manager (EEM), Autonomic Networking Infrastructure

Telemetry and visibility
Streaming telemetry, sampled NetFlow, Switched Port Analyzer (SPAN), Remote SPAN (RSPAN)

Advanced telemetry and visibility
Flexible NetFlow, Wireshark

Optimized telemetry a visibility
Encapsulated Remote SPAN (ERSPAN), Application Visibility and Control (AVC), NBAR2

High availability and resiliency
NSF, Graceful Insertion and Removal (GIR)

High availability and resiliency
Patching

(CLI)

Security
MACsec-256

Advanced security
Encrypted Traffic Analytics (ETA)

Cisco DNA Center Features



Day 0 network bring-up automation
Cisco Network Plug-n-Play application, network settings, device credentials

Element management
Discovery, inventory, topology, software image, licensing, and configuration management

Element management
Patching

Network monitoring
Product Security Incident Response Team (PSIRT) compliance, end-of-life/end-of-sale reporting, telemetry quotient, client 360, device 360, top talkers/ NetFlow/streaming telemetry collection and correlation

Static QoS configuration and monitoring
EasyQoS application

Policy-based automation
SD-Access, group-based policy for access, app prioritization, monitoring, and path selection;
SD-Access with Integrated Wireless

Network assurance and analytics
Insights driven from analytics and machine learning for the network, clients and applications that cover onboarding, connectivity, and performance

Security analytics and endpoint profiling

Advanced security analytics (Visibilty and threat detection across the network with Stealthwatch*)

*Flow collector and management licenses included

Endpoint based policy (Granular SD-Access with endpoint profiling from ISE)


Software Requirements:

Cisco ONE Software for Access Switching is available for the Cisco Catalyst 9300.

Cisco ONE Software for Access Switching offers comprehensive solutions for the enterprise campus and branch offices. Cisco ONE for Access Switching introduces a simpler and more economical way to deploy access, aggregation, and core switches across enterprise campus and branch locations.

The Cisco ONE Subscription for Switching offer delivers an unbound network on an open and extensible architecture to help you navigate the digital journey. This subscription offer simplifies the buying process and includes lower initiation costs and flexible terms. It includes: Cisco ONE Advantage with full Cisco Digital Network Architecture (DNA) capabilities and Cisco Software-Defined Access (SD-Access).

Cisco Catalyst 9300 Series Switches run on Cisco IOS XE 16.5.1a release or later. This software release includes all the features listed earlier in the Platform Benefits section.

Documentation:

Download the Catalyst 9300 Series Switches Datasheet (PDF).

Pricing Notes:

Cisco Catalyst 9300 Series
Cisco Catalyst 9300 Series Switches
USA: FREE Ground ShippingCatalyst 9300 48-port 2.5G (12 mGig) UPOE, Network Essentials
#C9300-48UXM-E
List Price: $12,140.00
Our Price: $7536.34
Cisco Catalyst 9300 Series Stacking Cables
50CM Type 3 Stacking Cable
#STACK-T1-50CM
List Price: $100.00
Our Price: $67.50
50CM Type 3 Stacking Cable, spare
#STACK-T1-50CM=
List Price: $100.00
Our Price: $62.70
1M Type 3 Stacking Cable
#STACK-T1-1M
List Price: $200.00
Our Price: $125.28
1M Type 3 Stacking Cable, spare
#STACK-T1-1M=
List Price: $200.00
Our Price: $107.31
3M Type 3 Stacking Cable
#STACK-T1-3M
List Price: $300.00
Our Price: $186.02
3M Type 3 Stacking Cable, spare
#STACK-T1-3M=
List Price: $300.00
Our Price: $161.20
Cisco Catalyst 9300 Series Software Licenses
C9300 DNA Essentials, 24-port, 5 Year Term license
#C9300-DNA-E-24-5Y
List Price: $980.00
Our Price: $622.15
C9300 DNA Essentials, 24-port, 7 Year Term license
#C9300-DNA-E-24-7Y
List Price: $1,390.00
Our Price: $868.10
C9300 DNA Advantage, 48-port, 3 Year Term license
#C9300-DNA-A-48-3Y
List Price: $3,770.00
Our Price: $2370.56
Cisco Catalyst 9300 Series Power Supplies
350WAC power supply spare
#PWR-C1-350WAC=
List Price: $650.00
Our Price: $407.24
715WAC power supply spare
#PWR-C1-715WAC=
List Price: $1,250.00
Our Price: $785.42
1100WAC power supply spare
#PWR-C1-1100WAC=
List Price: $1,900.00
Our Price: $1187.87
Cisco Catalyst 9300 Series StackWise-480 and StackPower Cables
Cisco StackWise-480 50cm stacking cable spare
#STACK-T1-50CM=
List Price: $100.00
Our Price: $62.70
Cisco StackWise-480 1m stacking cable spare
#STACK-T1-1M=
List Price: $200.00
Our Price: $107.31
Cisco StackWise-480 3m stacking cable spare
#STACK-T1-3M=
List Price: $300.00
Our Price: $161.20
Cisco Catalyst 3850 StackPower cable 30cm spare
#CAB-SPWR-30CM=
List Price: $95.00
Our Price: $59.88
Cisco Catalyst 3850 StackPower cable 150cm spare
#CAB-SPWR-150CM=
List Price: $195.00
Our Price: $122.65
Cisco Catalyst 9300 Series Spare Power Cords
AC power cord for Cisco Catalyst
#CAB-TA-NA=
List Price: $50.00
Our Price: $30.14
