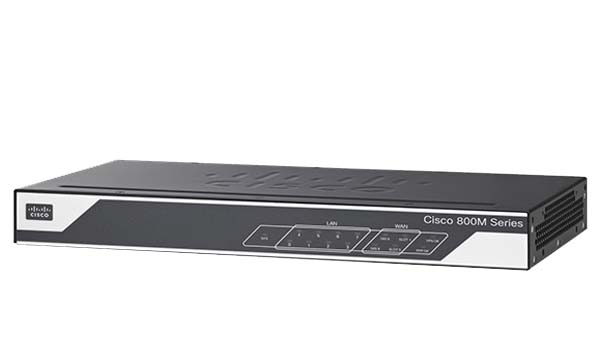

Cisco 800M Integrated Services Router
Flexible, Highly Secure, and Reliable Last-Mile Solutions

Cisco 800M Series Integrated Services Router

Cisco Routers
Cisco 800M Series Accessories
USA: FREE Ground ShippingCisco 800M ISR Dual SIM-multimode 3G WAN Interface Module
#WIM-3G
Our Price: $765.00
Rack-mount/Wall-mount Kit for Cisco 800M ISR Router
#ACS-800M-RM-19
List Price: $50.00
Our Price: $36.07

Click here for more options and pricing!


Overview:

The Cisco® 800M Series Integrated Services Router (ISR) is a modular platform in the Cisco 800 Series ISR product family. Intended for small to medium sites, it provides a flexible array of WAN connectivity options with easy migration among WAN interface types. It runs Cisco IOS® Software and delivers built-in security in a single software image with no additional software licenses required. It also integrates application hosting capabilities right in the router.

The Cisco 800M ISR is best suited for the following uses:

  • Secure WAN connectivity for branches
  • Transmitting transactional data from ATM machines, point-of-sale terminals, and kiosks
  • Cellular backup to primary wired links
  • Quick, easy connectivity in countries where most WAN infrastructure is cellular: 3G connectivity can be used for primary connections, backup connections, or both
  • Locations with WAN services requiring serial connectivity
  • Deployments requiring real-time, local data collection and analysis from vending machines, Internet of Things (IoT) devices, and M2M sensors in other applications

Get a flexible array of WAN connectivity options with easy migration among WAN interface types. The Cisco 800M Series ISR is a modular platform intended for very small sites. It runs on Cisco IOS Software and delivers built-in security in one image. No additional software licenses are required. And application hosting capabilities are integrated directly in the router.

Features & Benefits:

Part of the 800 Series ISR Family, the 800M ISR is the industry’s first router to support multiple 3G technologies on the same pluggable WAN interface (the Cisco WIM-3G). The result is that customers gain service provider independence. The platform is also designed to work with future versions, offering high compute and storage resources.

It provides an open, extensible environment for developing and hosting applications at the network edge for local processing right in the router. The routers support single-pane-of-glass management and the 3G cellular Simple Network Management Protocol (SNMP) MIB.

Key Features

  • Secure connectivity – Integrated enterprise-class security that includes, VPN, firewall, and content filtering offers protection from all threat vectors.
  • Flexibility between wired and wireless WAN connectivity – Broad support for wireless and wired technologies makes it easy to switch providers and lower WAN costs while increasing network availability and reliability.
  • Lower capital and operation expenses – The single semi-modular platform includes an integrated Gigabit Ethernet switch, routing, multilayer security, the full Cisco IOS Software suite, multiple WAN interface choices, and Cisco IOx application hosting.
  • Open development platform – Native application hosting improves performance of real-time local data collection and analysis.
  • Comprehensive and centralized network management – Integrated device management includes Cisco Policy Management with monitoring and reporting. This also includes support for enterprise-class centralized provisioning and management using Cisco Prime Infrastructure.

Technical Specifications:

Feature

C841M-4X

C841M-8X

Dimensions (H x W x D)

1.72 x 13.5 x 6.9 in.

1.72 x 13.5 x 6.9 in.

Weight (kg) with blank modules

1.7 kg

1.7 kg

Weight (kg) with both modules loaded

2.5 kg

2.5 kg

Rack-/Wall-Mountable

Yes

Yes

Memory (DDR3 DRAM): Default/maximum

512 MB/512 MB

1 GB/1 GB

Flash memory (internal): Default/maximum

2 GB/2 GB

2 GB/2 GB

External USB flash-memory slots (Type A)

1

1

Serial console port (up to 115.2 kbps)

1

1

Power supply

External AC power supply

External AC power supply

Redundant-power-supply support

No

No

AC input voltage

100-240V ~

100-240V ~

AC input frequency

50-60 Hz

50-60 Hz

RJ-45 onboard LAN 10/100/1000 ports

4

8

RJ-45 onboard WAN 10/100/1000 ports

2

2

WAN Interface Slots

2

2

WAN Interface Modules

3G Cellular

Cisco Smart Serial Interface

3G Cellular

Cisco Smart Serial Interface

Integrated/Fixed WAN Connections

2 Gigabit Ethernet

2 Gigabit Ethernet

Outdoor Antennas

Yes

Yes

Diversity (Dual Antennas)

Yes

Yes

TNC Connectors for Field-replaceable

Optional High-gain Antennas

Yes

Yes

Integrated/Fixed LAN Connections

4 Gigabit Ethernet

8 Gigabit Ethernet

Environmental Operating Range

  Nonoperating temperature: -40 to 158°F (-40 to 70°C)
  Nonoperating humidity: 5 to 95% RH
  Nonoperating altitude: 0 to 15,000 ft
(0 to 4570m)
  Operating temperature: 32 to 104°F (0 to 40°C)
  Operating humidity: 10 to 85% RH
  Operating altitude: 0 to 10,000 ft (0 to 3000m)
  Nonoperating temperature: -40 to 158°F
(-40 to 70°C)
  Nonoperating humidity: 5 to 95% RH
  Nonoperating altitude: 0 to 15,000 ft (0 to 4570m)
  Operating temperature: 32 to 104°F (0 to 40°C)
  Operating humidity: 10 to 85% RH
  Operating altitude: 0 to 10,000 ft (0 to 3000m)

Approvals and Compliance

Safety:

  IEC 60950-1:2005 (Second Edition); Am1:2009 + Am2:2013
  EN60950-1:2006 + A1:2010 + A11:2009 + A12:2011 + A2:2013 ITE equipment
  UL 60950-1+ AMD 1 AMD 2 ITE equipment

Safety:

  IEC 60950-1:2005 (Second Edition); Am1:2009 + Am2:2013
  EN60950-1:2006 + A1:2010 + A11:2009 + A12:2011 + A2:2013 ITE equipment
  UL 60950-1+ AMD 1 AMD 2 ITE equipment

EMC

EMC

  EN55022 Class B
  EN55024
  EN61000-3-2
  EN61000-3-3
  VCCI Class B
  47 CFR Part 15
  EN 300 386 v1.6.1
  EN 301 489-1
  EN 301 489-7
  EN 301 489-24
  EN55022 Class B
  EN55024
  EN61000-3-2
  EN61000-3-3
  VCCI Class B
  47 CFR Part 15
  EN 300 386 v1.6.1
  EN 301 489-1
  EN 301 489-7
  EN 301 489-24

Radio:

  EN 301 511
  EN 301 908-1
  EN 301 908-2
  47 CFR PART 22
  47 CFR PART 24

Radio:

  EN 301 511
  EN 301 908-1
  EN 301 908-2
  47 CFR PART 22
  47 CFR PART 24
