Cisco Aironet 3700 Series Access Point
Industry-Leading Performance and a High Density Experience

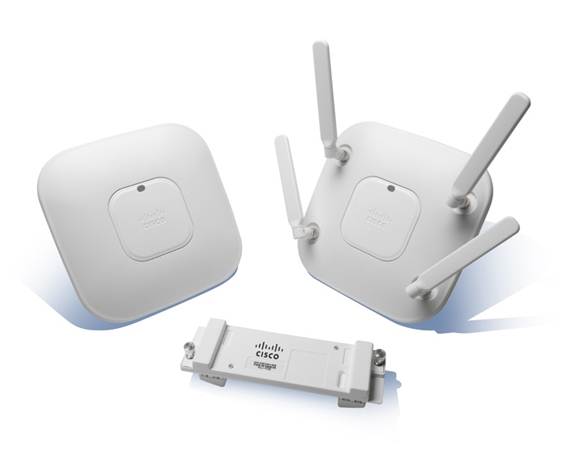

Cisco Aironet 3700 Series Access Point
Cisco Arionet 3700 Series Access Points
Cisco Aironet 3700i Access Point: Indoor environments with internal antennas
Cisco Aironet 3700i Access Point, Dual-band, controller-based 802.11a/g/n/ac
#AIR-CAP3702I-A-K9
List Price: $1,495.00
Our Price: $1,068.00
Cisco Aironet 3700i Access Point, Dual-band controller-based 802.11a/g/n/ac, 10 pack
#AIR-CAP3702I-AK910
List Price: $14,950.00
Our Price: $10,587.00
Cisco Aironet 3700e Access Point: Indoor, challenging environments with external antennas
Cisco Aironet 3700e Access Point, Dual-band controller-based 802.11a/g/n/ac
Note:
*Antennas sold separately, click here to view available antennas.
#AIR-CAP3702E-A-K9
List Price: $1,595.00
Our Price: $1,139.00
Cisco Aironet 3700e Access Point, Dual-band controller-based 802.11a/g/n/ac, 10 pack
Note:
*Antennas sold separately, click here to view available antennas.
#AIR-CAP3702E-AK910
Our Price: Call for Pricing!
Cisco Aironet 3700p Access Point: high-density environments, with narrow-beamwidth, high-gain, antennas
Cisco Aironet 3700p Access Point, Dual-band controller-based 802.11a/g/n/ac
Note:
*Antennas sold separately, click here to view available antennas.
#AIR-CAP3702P-A-K9
Our Price: Call for Pricing!
Cisco Aironet 3700p Access Point, Dual-band controller-based 802.11a/g/n/ac, 10 pack
Note:
*Antennas sold separately, click here to view available antennas.
#AIR-CAP3702P-AK910
List Price: $15,950.00
Our Price: $10,968.00

Click here for more options and pricing!

Overview:

With the industry's only enterprise class 4x4 MIMO, three-spatial-stream access points that support the IEEE's new 802.11ac specification, the Cisco®Aironet® 3700 Series delivers industry-leading performance and a High Density Experience (HD Experience) for both the enterprise and service provider markets. The Aironet 3700 Series extends support to a new generation of Wi-Fi clients, such as smartphones, tablets, and high-performance laptops that have integrating 802.11ac support.

In its first implementation, 802.11ac wave 1 provides a rate of up to 1.3 Gbps, roughly triple the rates offered by today's high-end 802.11n access points. This provides the necessary foundation for enterprise and service provider networks alike to stay ahead of the performance and bandwidth expectations and needs of their wireless users.

Due to its convenience, wireless access is increasingly the preferred form of network connectivity for corporate users. Along with this shift, there is an expectation that wireless should not slow down users' day-to-day work, but should enable a high-performance experience while allowing users to move freely around the corporate environment.

By Utilizing a Purpose-built Innovative Chipset with the Best-in-class RF Architecture for a High Density Experience (HD Experience)

High Density Experience (HD Experience)

Building on the Cisco Aironet heritage of RF excellence, the 3700 Series utilizes a Purpose-built Innovative Chipset with the Best-in-class RF Architecture. This chipset provides a High Density Experience for enterprise network designed for mission critical, high performance applications. The 3700 is a series of flagship access points, delivering industry-leading performance for highly secure and reliable wireless connections and delivers a robust mobility experience that includes:

  • 802.11ac with 4x4 multiple-input multiple-output (MIMO) technology with three spatial streams, offering sustained 1.3-Gbps rates over a greater range for more capacity and reliability than competing access points.
  • Cross AP Noise Reduction is a Cisco innovation that enables Access Points to intelligently collaborate in real-time to allow more users to connect with optimized signal quality and performance.
  • Optimized AP Roaming ensures clients will associate with the best AP offering the best data rate available.
  • Cisco ClientLink 3.0 technology to improve downlink performance to all mobile devices, including one-, two-, and three-spatial-stream devices on 802.11ac while improving battery life on mobile devices such as smartphones and tablets.
  • Cisco CleanAir technology enhanced with 80MHz Channel Support, provides proactive, high-speed spectrum intelligence across 20-, 40-, and 80-MHz-wide channels to combat performance problems due to wireless interference.
  • Modular architecture design that is carried forward from the Cisco Aironet 3600, enabling flexible add-on options in the form of the Cisco Aironet Wireless Security and Spectrum Intelligence Module, the upcoming Cisco 3G Small Cell Module, and the future Cisco Aironet 802.11ac Wave 2 Module, which are tightly integrated with the Aironet 3700 Series Access Point platform and are completely field-upgradable.
  • MIMO equalization optimizes uplink performance and reliability by reducing the impact of signal fade.

The new Cisco Aironet 3700 Series sustains reliable connections at higher speeds farther from the access point than competing solutions, resulting in up to three times more availability of 1.3-Gbps rates and optimizing the performance of more mobile devices. The 3700 Series carries forward the modular architecture first introduced with the Aironet 3600 Series and offers unparalleled investment protection, with support for the Cisco Aironet Wireless Security and Spectrum Intelligence Module and the upcoming Cisco 3G Small Cell Module.

All of these features help ensure the best possible end-user experience on the wireless network.

Cisco also offers the industry's broadest selection of 802.11n and 802.11ac antennas, delivering optimal coverage for a variety of deployment scenarios.

Scalability

The Cisco Aironet 3700 Series is a component of the Cisco Unified Wireless Network, which can scale to as many as 18,000 access points with full Layer 3 mobility across central or remote locations on the enterprise campus, in branch offices, and at remote sites. The Cisco Unified Wireless Network is the industry's most flexible, resilient, and scalable architecture, delivering highly secure access to mobility services and applications and offering the lowest total cost of ownership and investment protection by integrating smoothly with the existing wired network.

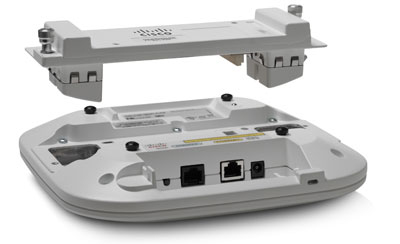

Aironet 3700 Module

Features:

Cisco Aironet 3700i Access Point

  • Sleek design with internal antennas
  • Ideal for office environments

Cisco Aironet 3700e and 3700p Access Points

  • Rugged metal housing and extended operating temperature
  • Ideal for factories, warehouses, and other indoor industrial environments
  • Versatile RF coverage with external antennas
  • UL 2043 plenum-rated for above-ceiling installation options or suspended from drop ceilings
  • Classify over 20 different types of interference, including non-Wi-Fi interference within 5 to 30 seconds
  • Automatic remedial action and less manual intervention

Investment Protection with Flexible Modular Architecture Design

  • Cisco Aironet Wireless Security and Spectrum Intelligence Module now shipping
  • Cisco 3G Small Cell Module (available 2HCY13)
  • Cisco Aironet 802.11ac Wave 2 Module (target CY2015)

Troubleshooting Forensics for Faster Interference Resolution and Proactive Action

  • Historic interference information for back-in-time analysis and faster problem solving
  • 24x7 monitoring with remote access reduces travel and speeds resolution
  • Cisco Spectrum Expert Connect provides real-time, raw spectrum data to help with difficult-to-diagnose interference problems
  • Air quality index in Cisco CleanAir® technology provides a snapshot of network performance and the impact of interference

Robust Security and Policy Enforcement

  • Industry’s first access point with non-Wi-Fi detection for off-channel rogues
  • Supports rogue access point detection and detection of denial-of-service attacks
  • Management frame protection detects malicious users and alerts network administrators
  • Enables policies to prohibit devices that interfere with the Wi-Fi network or jeopardize network security

Secure Interoperability

  • Controller-based deployment only

Features and Capabilities

  • The industry's first access point with integrated 802.11ac Wave 1 radio to support a 4x4 MIMO with three spatial streams
  • Cisco CleanAir Technology with enhanced 80 MHz channel support
  • Updated Cisco ClientLink 3.0 to boost performance for all clients, including 802.11ac
  • Dual Band 2.4/5 GHz integrated radios to address the growing needs of BYOD and bandwidth demands
  • A modular design that supports Cisco Wireless Security and Spectrum Intelligence, Cisco 3G Small Cells, or future 802.11ac Wave 2

Technical Specifications:

Item Specification
Software Cisco Unified Wireless Network Software Release 7.6 or later
Supported Wireless LAN Controllers
  • Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst® 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco Virtual Wireless Controller
  • Cisco 5760 Wireless LAN Controller, Cisco Catalyst 3850 Series Switches
Module Options Cisco Aironet Wireless Security and Spectrum Intelligence Module
  • Provides full-spectrum, off-channel scanning for a comprehensive wireless intrusion prevention system (wIPS), including Cisco CleanAir technology, rogue detection, context awareness, and radio resource management (RRM) solutions. Scans 2.4- and 5-GHz channels while serving data clients on the base dual-band access point platform

Cisco 3G Small Cell Module (available 2HCY13)

  • 3GPP band 1 (2100 MHz), 16 users, voice (R99), packet data (HSPA/HSDPA+)
  • Cisco Aironet Access Point 802.11ac Wave 2 Module (target CY2015)
802.11n Version 2.0 (and Related) Capabilities
  • 4x4 MIMO with three spatial streams
  • Maximal ratio combining (MRC)
  • 802.11n and 802.11a/g beamforming
  • 20- and 40-MHz channels
  • PHY data rates up to 450 Mbps (40-MHz with 5 Ghz)
  • Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
  • 802.11 dynamic frequency selection (DFS)
  • Cyclic shift diversity (CSD) support
802.11ac Wave 1 capabilities
  • 4x4 MIMO with three spatial streams
  • MRC
  • 802.11ac beamforming
  • 20-, 40-, and 80-MHz channels
  • PHY data rates up to 1.3 Gbps (80 MHz with 5 GHz)
  • Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
  • 802.11 DFS
  • CSD support
Integrated Antenna
  • 2.4 GHz, Gain 4 dBi, internal omnidirectional, horizontal beamwidth 360°
  • 5 GHz, Gain 6 dBi, internal omnidirectional, horizontal beamwidth 360°
External Antenna
(Sold Separately)
  • Certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz)
  • Cisco offers the industry's broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios
Interfaces
  • 10/100/1000BASE-T autosensing (RJ-45)
  • Management console port (RJ-45)
Indicators Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
Dimensions (W x L x H) Access point (without mounting bracket): 8.7 x 8.7 x 2.11 in. (22.1 x 22.1 x 5.4 cm)
Weight 2.5 lbs (1.13 kg)
Environmental Cisco Aironet 3700i
  • Nonoperating (storage) temperature: -22 to 158°F (-3 0 to 70°C)
  • Nonoperating (storage) Altitude Test 25°C, 15,000 ft.
  • Operating temperature: 32 to 104°F (0 to 40°C)
  • Operating humidity: 10 to 90% percent (noncondensing)
  • Operating Altitude Test: 40°C, 9843 ft.

Cisco Aironet 3700e/3700p

  • Nonoperating (storage) temperature: -22 to 158°F (-3 0 to 70°C)
  • Nonoperating (storage) Altitude Test: 25°C, 15,000 ft.
  • Operating temperature: -4 to 122°F (-20 to 50°C)
  • Operating humidity: 10 to 90 % (noncondensing)
  • Operating Altitude Test: 40°C, 9843 ft.
System Memory
  • 512 MB DRAM
  • 64 MB flash
Input Power Requirements
  • AP3700: 44 to 57 VDC
  • Power Supply and Power Injector: 100 to 240 VAC; 50 to 60 Hz
Powering Options Aironet 3700 without an add-on module
  • 802.3at PoE+
  • Enhanced PoE
  • Cisco AP3700 power injectors (AIR-PWRINJ4=)
  • Cisco AP3700 local power supply (AIR-PWR-B=)
    Note: If 802.3af PoE is the source of power, the access point will dynamically shift from 4x4 to 3x3 and come up under PoE.

Aironet 3700 with an add-on module

  • 802.3at PoE+
  • Enhanced PoE
  • Cisco AP3700 power injectors (AIR-PWRINJ4=)
  • Cisco AP3700 local power supply (AIR-PWR-B=)
    Note: If 802.3af PoE is the source of power, the access point with module will dynamically shift from 4x4 to 2x2 and come up under PoE.
Power Draw AP3700: 15W
Note: When deployed using a Power over Ethernet (PoE) specification, the power drawn from the power sourcing equipment will be higher by some amount dependent on the length of the interconnecting cable.
Warranty Limited Lifetime Hardware Warranty
Compliance
Standards
  • UL 60950-1
  • CAN/CSA-C22.2 No. 60950-1
  • UL 2043
  • IEC 60950-1
  • EN 60950-1
  • EN 50155

Radio approvals:

  • FCC Part 15.247, 15.407
  • RSS-210 (Canada)
  • EN 300.328, EN 301.893 (Europe)
  • ARIB-STD 66 (Japan)
  • ARIB-STD T71 (Japan)
  • EMI and susceptibility (Class B)
  • FCC Part 15.107 and 15.109
  • ICES-003 (Canada)
  • VCCI (Japan)
  • EN 301.489-1 and -17 (Europe)
  • EN 60601-1-2 EMC requirements for the Medical Directive 93/42/EEC

IEEE Standard:

  • IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d
  • IEEE 802.11ac Draft 5

Security:

  • 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA
  • 802.1X
  • Advanced Encryption Standards (AES), Temporal Key Integrity Protocol (TKIP)

EAP Type(s):

  • EAP-Transport Layer Security (TLS)
  • EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2)
  • Protected EAP (PEAP) v0 or EAP-MSCHAPv2
  • EAP-Flexible Authentication via Secure Tunneling (FAST)
  • PEAP v1 or EAP-Generic Token Card (GTC)
  • EAP-Subscriber Identity Module (SIM)

Multimedia:

  • Wi-Fi Multimedia (WMM)

Other:

  • FCC Bulletin OET-65C
  • RSS-102

RF Performance:

Data rates supported
802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps
802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps
802.11n data rates on 2.4 GHz:
MCS Index1 GI2 = 800 ns GI = 400 ns
20-MHz Rate (Mbps) 20-MHz Rate (Mbps)
0 6.5 7.2
1 13 14.4
2 19.5 21.7
3 26 28.9
4 39 43.3
5 52 57.8
6 58.5 65
7 65 72.2
8 13 14.4
9 26 28.9
10 39 43.3
11 52 57.8
12 78 86.7
13 104 115.6
14 117 130
15 130 144.4
16 19.5 21.7
17 39 43.3
18 58.5 65
19 78 86.7
20 117 130
21 156 173.3
22 175.5 195
23 195 216.7
802.11ac data rates (5 GHz):
MCS Index3 Spatial Streams GI4 = 800ns GI = 400ns
  20-MHz Rate (Mbps) 40-MHz Rate (Mbps) 80-MHz Rate (Mbps) 20-MHz Rate (Mbps) 40-MHz Rate (Mbps) 80-MHz Rate (Mbps)
0 1 6.5 13.5 29.3 7.2 15 32.5
1 1 13 24 58.5 14.4 30 65
2 1 19.5 40.5 87.8 21.7 45 97.5
3 1 26 54 117 28.9 60 130
4 1 39 81 175.5 43.3 90 195
5 1 52 108 234 57.8 120 260
6 1 58.5 121.5 263.3 65 135 292.5
7 1 65 135 292.5 72.2 150 325
8 1 78 162 351 86.7 180 390
9 1 - 180 390 - 200 433.3
0 2 13 27 58.5 14.4 30 65
1 2 26 54 117 28.9 60 130
2 2 39 81 175.5 43.3 90 195
3 2 52 108 234 57.8 120 260
4 2 78 162 351 86.7 180 390
5 2 104 216 468 115.6 240 520
6 2 117 243 526.5 130 270 585
7 2 130 270 585 144.4 300 650
8 2 156 324 702 173.3 360 780
9 2 78 780 780 - 400 866.7
0 3 19.5 40.5 87.8 21.7 45 97.5
1 3 39 81 175.5 43.3 90 195
2 3 58.5 121.5 263.3 65 135 292.5
3 3 78 162 351 86.7 180 390
4 3 117 243 526.5 130 270 585
5 3 156 324 702 173.3 360 780
6 3 175.5 364.5 - 195 405 -
7 3 195 405 877.5 216.7 450 975
8 3 234 486 1053 260 540 1170
9 3 260 540 1170 288.9 600 1300
Frequency band and 20-MHz operating channels
A (A regulatory domain):
  • 2.412 to 2.462 GHz; 11 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz)
  • 5.745 to 5.825 GHz; 5 channels

C (C regulatory domain):

  • 2.412 to 2.472 GHz; 13 channels
  • 5.745 to 5.825 GHz; 5 channels

D (D regulatory domain):

  • 2.412 to 2.462 GHz; 11 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.745 to 5.865 GHz; 7 channels

E (E regulatory domain):

  • 2.412 to 2.472 GHz; 13 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz)

H (H regulatory domain):

  • 2.412 to 2.472 GHz; 13 channels
  • 5.150 to 5.350 GHz; 8 channels
  • 5.745 to 5.825 GHz; 5 channels

I (I regulatory domain):

  • 2.412 to 2.472 GHz; 13 channels
  • 5.180 to 5.320 GHz; 8 channels

K (K regulatory domain):

  • 2.412 to 2.472 GHz; 13 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.500 to 5.620 GHz; 7 channels
  • 5.745 to 5.805 GHz; 4 channels
N (N regulatory domain):
  • 2.412 to 2.462 GHz; 11 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.745 to 5.825 GHz; 5 channels

Q (Q regulatory domain):

  • 2.412 to 2.472 GHz; 13 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.500 to 5.700 GHz; 11 channels

R (R regulatory domain):

  • 2.412 to 2.472 GHz; 13 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5,660 to 5,805 GHz; 7 channels

S (S regulatory domain):

  • 2.412 to 2.472 GHz; 13 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.500 to 5.700 GHz;, 11 channels
  • 5.745 to 5.825 GHz; 5 channels

T (T regulatory domain):

  • 2.412 to 2.462 GHz; 11 channels
  • 5.280 to 5.320 GHz; 3 channels
  • 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz)
  • 5.745 to 5.825 GHz; 5 channels

Z (Z regulatory domain):

  • 2.412 to 2.462 GHz; 11 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz)
  • 5.745 to 5.825 GHz; 5 channels
Note: Customers are responsible for verifying approval for use in their individual countries. To verify approval and to identify the regulatory domain that corresponds to a particular country, visit http://www.cisco.com/go/aironet/compliance.
Maximum number of nonoverlapping channels
2.4 GHz
  • 802.11b/g: 20 MHz: 3
  • 802.11n: 20 MHz: 3
5 GHz
  • 802.11a: 20 MHz: 21
  • 802.11n: 20 MHz: 21, 40 MHz: 9
  • 802.11ac: 20 MHz: 21, 40 MHz: 9, 80 MHz: 5
Note: This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain.
Receive sensitivity
  • 802.11b (CCK)
  • -101 dBm @ 1 Mbps
  • -98 dBm @ 2 Mbps
  • -92 dBm @ 5.5 Mbps
  • -89 dBm @ 11 Mbps
  • 802.11g (non HT20)
  • -91 dBm @ 6 Mbps
  • -91 dBm @ 9 Mbps
  • -91 dBm @ 12 Mbps
  • -90 dBm @ 18 Mbps
  • -87 dBm @ 24 Mbps
  • -85 dBm @ 36 Mbps
  • -80 dBm @ 48 Mbps
  • -79 dBm @ 54 Mbps
  • 802.11a (non HT20)
  • -90 dBm @ 6 Mbps
  • -90 dBm @ 9 Mbps
  • -90 dBm @ 12 Mbps
  • -89 dBm @ 18 Mbps
  • -86 dBm @ 24 Mbps
  • -83 dBm @ 36 Mbps
  • -78 dBm @ 48 Mbps
  • -77 dBm @ 54 Mbps
2.4 GHz
  • 802.11n (HT20)
  • -90 dBm @ MCS0
  • -90 dBm @ MCS1
  • -90 dBm @ MCS2
  • -88 dBm @ MCS3
  • -85 dBm @ MCS4
  • -80 dBm @ MCS5
  • -78 dBm @ MCS6
  • -77 dBm @ MCS7
  • -90 dBm @ MCS8
  • -90 dBm @ MCS9
  • -89 dBm @ MCS10
  • -86 dBm @ MCS11
  • -82 dBm @ MCS12
  • -78 dBm @ MCS13
  • -77 dBm @ MCS14
  • -75 dBm @ MCS15
  • -90 dBm @ MCS16
  • -89 dBm @ MCS17
  • -87 dBm @ MCS18
  • -84 dBm @ MCS19
  • -81 dBm @ MCS20
  • -76 dBm @ MCS21
  • -75 dBm @ MCS22
  • -74 dBm @ MCS23
5 GHz
  • 802.11n (HT20)
  • -91 dBm @ MCS0
  • -90 dBm @ MCS1
  • -89 dBm @ MCS2
  • -86 dBm @ MCS3
  • -83 dBm @ MCS4
  • -78 dBm @ MCS5
  • -77 dBm @ MCS6
  • -75 dBm @ MCS7
  • -91 dBm @ MCS8
  • -89 dBm @ MCS9
  • -87 dBm @ MCS10
  • -84 dBm @ MCS11
  • -80 dBm @ MCS12
  • -76 dBm @ MCS13
  • -75 dBm @ MCS14
  • -73 dBm @ MCS15
  • -90 dBm @ MCS16
  • -88 dBm @ MCS17
  • -85 dBm @ MCS18
  • -82 dBm @ MCS19
  • -79 dBm @ MCS20
  • -74 dBm @ MCS21
  • -73 dBm @ MCS22
  • -72 dBm @ MCS23
5 GHz
  • 802.11n (HT40)
  • -88 dBm @ MCS0
  • -87 dBm @ MCS1
  • -86 dBm @ MCS2
  • -82 dBm @ MCS3
  • -80 dBm @ MCS4
  • -75 dBm @ MCS5
  • -73 dBm @ MCS6
  • -72 dBm @ MCS7
  • -88 dBm @ MCS8
  • -86 dBm @ MCS9
  • -84 dBm @ MCS10
  • -80 dBm @ MCS11
  • -77 dBm @ MCS12
  • -73 dBm @ MCS13
  • -71 dBm @ MCS14
  • -70 dBm @ MCS15
  • -87 dBm @ MCS16
  • -84 dBm @ MCS17
  • -82 dBm @ MCS18
  • -78 dBm @ MCS19
  • -75 dBm @ MCS20
  • -71 dBm @ MCS21
  • -69 dBm @ MCS22
  • -68 dBm @ MCS23
802.11ac Receive Sensitivity
802.11ac (non HT80)
  • -87 dBm @ 6 Mbps
  • -73 dBm @ 54 Mbps
MCS Index5 Spatial Streams VHT20 VHT40 VHT80 VTH20-STBC VHT40-STBC VHT80-STBC
0 1 -92 dBm -89 dBm -86 dBm -92 dBm -89 dBm -86 dBm
8 1 -70 dBm     -70 dBm
9 1   -66 dBm -63 dBm   -66 dBm -63 dBm
0 2 -91 dBm -88 dBm -85 dBm
8 2 -69 dBm
9 2   -65 dBm -62 dBm
0 3 -90 dBm -87 dBm -84 dBm
9 3 -67 dBm -64 dBm -61 dBm
Maximum transmit power
2.4 GHz
  • 802.11b
  • 23 dBm, 4 antennas
  • 802.11g
  • 23 dBm, 4 antennas
  • 802.11n (HT20)
  • 23 dBm, 4 antennas
5 GHz
  • 802.11a
  • 23 dBm, 4 antennas
  • 802.11n (HT20)
  • 23 dBm, 4 antennas
  • 802.11n (HT40)
  • 23 dBm, 4 antennas
  • 802.11ac
  • non-HT80: 23 dBm, 4 antennas
  • VHT20 23 dBm, 4 antennas
  • VHT40: 23 dBm, 4 antennas
  • VHT80: 23 dBm, 4 antennas
  • VHT20-STBC: 23 dBm, 4 antennas
  • VHT40-STBC: 23 dBm, 4 antennas
  • VHT80-STBC: 23 dBm, 4 antennas
Note: The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation for specific details.
2.4 GHz
  • 23 dBm (200 mW)
  • 20 dBm (100 mW)
  • 17 dBm (50 mW)
  • 14 dBm (25 mW)
  • 11 dBm (12.5 mW)
  • 8 dBm (6.25 mW)
  • 5 dBm (3.13 mW)
  • 2 dBm (1.56 mW)
5 GHz
  • 23 dBm (200 mW)
  • 20 dBm (100 mW)
  • 17 dBm (50 mW)
  • 14 dBm (25 mW)
  • 11 dBm (12.5 mW)
  • 8 dBm (6.25 mW)
  • 5 dBm (3.13 mW)
  • 2 dBm (1.56 mW)
Note: The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation for specific details.

1MCS Index: The Modulation and Coding Scheme (MCS) index determines the number of spatial streams, the modulation, the coding rate, and data rate values.
2GI: A guard interval (GI) between symbols helps receivers overcome the effects of multipath delays.
3MCS Index: The Modulation and Coding Scheme (MCS) index determines the number of spatial streams, the modulation, the coding rate, and data rate values.
4GI: A guard interval (GI) between symbols helps receivers overcome the effects of multipath delays.
5MCS Index: The Modulation and Coding Scheme (MCS) index determines the number of spatial streams, the modulation, the coding rate, and data rate values.

Documentation:

Download the Cisco Aironet 3700 Series Access Point Datasheet (PDF).

Pricing Notes:

Cisco Arionet 3700 Series Access Points
Cisco Aironet 3700i Access Point: Indoor environments with internal antennas
Cisco Aironet 3700i Access Point, Dual-band, controller-based 802.11a/g/n/ac
#AIR-CAP3702I-A-K9
List Price: $1,495.00
Our Price: $1,068.00
Cisco Aironet 3700i Access Point, Dual-band controller-based 802.11a/g/n/ac, 10 pack
#AIR-CAP3702I-AK910
List Price: $14,950.00
Our Price: $10,587.00
Cisco Aironet 3700e Access Point: Indoor, challenging environments with external antennas
Cisco Aironet 3700e Access Point, Dual-band controller-based 802.11a/g/n/ac
Note:
*Antennas sold separately, click here to view available antennas.
#AIR-CAP3702E-A-K9
List Price: $1,595.00
Our Price: $1,139.00
Cisco Aironet 3700e Access Point, Dual-band controller-based 802.11a/g/n/ac, 10 pack
Note:
*Antennas sold separately, click here to view available antennas.
#AIR-CAP3702E-AK910
Our Price: Call for Pricing!
Cisco Aironet 3700p Access Point: high-density environments, with narrow-beamwidth, high-gain, antennas
Cisco Aironet 3700p Access Point, Dual-band controller-based 802.11a/g/n/ac
Note:
*Antennas sold separately, click here to view available antennas.
#AIR-CAP3702P-A-K9
Our Price: Call for Pricing!
Cisco Aironet 3700p Access Point, Dual-band controller-based 802.11a/g/n/ac, 10 pack
Note:
*Antennas sold separately, click here to view available antennas.
#AIR-CAP3702P-AK910
List Price: $15,950.00
Our Price: $10,968.00
