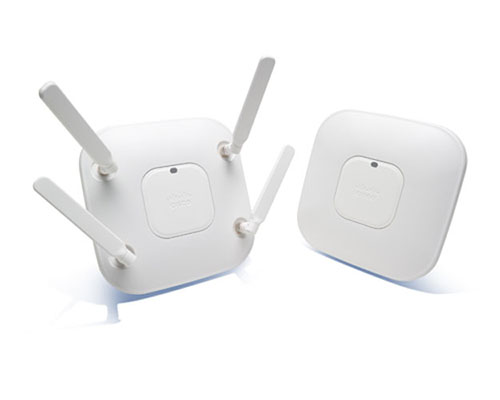

Cisco Aironet 3600 Series Access Point

An All-in-One Security Solution to Secure Your Small Business Cisco Aironet 3600 Series Access Point
Cisco Arionet 3600 Series Access Points
Cisco Aironet 3600i Access Point: Indoor environments with internal antennas
Cisco Aironet 3600i Access Point, Dual-band controller-based 802.11a/g/n
#AIR-CAP3602I-A-K9
List Price: $1,645.00
Our Price: $1,175.00
Cisco Aironet 3600i Access Point, Dual-band controller-based 802.11a/g/n, 10 pack
#AIR-CAP3602I-AK910
List Price: $16,450.00
Our Price: $11,648.00
Cisco Aironet 3600e Access Point: Indoor, challenging environments with external antennas
Cisco Aironet 3600e Access Point, Dual-band controller-based 802.11a/g/n
Note:
*Antennas sold separately, click here to view available antennas.
#AIR-CAP3602E-A-K9
List Price: $1,745.00
Our Price: $1,242.00
Cisco Aironet 3600e Access Point, Dual-band controller-based 802.11a/g/n, 10 pack
Note:
*Antennas sold separately, click here to view available antennas.
#AIR-CAP3602E-AK910
List Price: $17,450.00
Our Price: $12,356.00

Click here for more options and pricing!

Overview:

Delivering up to three times more coverage versus competition for tablets, smartphones, and highperformance laptops, the industry’s only 4x4 MIMO, three-spatial-stream access point delivers missioncritical reliability. Current solutions struggle to scale to meet demands on the wireless networks from the influx of diverse mobile devices and mobile applications. The new Cisco Aironet 3600 Series sustains reliable connections at higher speeds further from the access point than competing solutions, resulting in up to three times more availability of 450 Mbps rates, and optimizing the performance of more mobile devices. Cisco Aironet 3600 Series is an innovative, modular platform that offers unparalleled investment protection with future module expansion to support incoming 802.11ac clients with 870 Mbps rates, or offer comprehensive security and spectrum monitoring and control.

Cisco Aironet 3600 Series includes Cisco ClientLink 2.0 to boost performance and range for clients and includes Cisco CleanAir spectrum intelligence for a self-healing, self-optimizing network.

The Cisco 3600 Series RF Excellence:

Building on the Cisco Aironet heritage of RF excellence, the 3600 Series is a flagship access point, delivering industry-leading performance for secure and reliable wireless connections.

Enterprise-class silicon and optimized radios deliver a robust mobility experience which includes:

  • 802.11n with 4x4 multiple-input multiple-output (MIMO) technology with three spatial streams, which sustains 450-Mbps rates over a greater range for more capacity and reliability than competing access points.
  • Cisco ClientLink 2.0 technology to improve downlink performance to all mobile devices including one-, two- , and three-spatial-stream devices on 802.11n while improving battery life on mobile devices such as smartphones and tablets.
  • Cisco CleanAir™ technology, which provides proactive, high-speed spectrum intelligence to combat performance problems due to wireless interference.
  • Modular architecture design, enabling flexible add-on options in the form of a Security Monitor Module or an IEEE 802.11ac module that is tightly integrated with the Cisco Aironet 3600 Series Access Point platform, and is completely field-upgradable
  • MIMO equalization optimized uplink performance and reliability by minimizing the impact of signal fade.

All of these features help ensure the best possible end-user experience on the wireless network.

Scalability

The Cisco Aironet 3600 Series is a component of the Cisco Unified Wireless Network, which can scale to up to 18,000 access points with full Layer 3 mobility across central or remote locations on the enterprise campus, in branch offices, and at remote sites. The Cisco Unified Wireless Network is the industry’s most flexible, resilient, and scalable architecture, delivering secure access to mobility services and applications and offering the lowest total cost of ownership and investment protection by integrating seamlessly with the existing wired network.

Features:

Cisco Aironet 3600i Access Point

  • Sleek design with internal antennas
  • Ideal for office environments

Cisco Aironet 3600e Access Point

  • Rugged metal housing and extended operating temperature
  • Ideal for factories, warehouses, and other indoor industrial environments
  • Versatile RF coverage with external antennas
  • UL 2043 plenum-rated for above-ceiling installation options or suspended from drop ceilings
  • Classify over 20 different types of interference, including non-Wi-Fi interference within 5 to 30 seconds
  • Automatic remedial action and less manual intervention

Investment Protection with Modular Architecture Design

  • Flexible add-on Wireless Security & Spectrum Intelligence Module, and IEEE 802.11ac Wave 1 Module (Both Available Q1CY13)

Troubleshooting Forensics for Faster Interference Resolution and Proactive Action

  • Historic interference information for back-intime analysis and faster problem solving
  • 24/7 monitoring with remote access reduces travel and speeds resolution
  • Cisco Spectrum Expert Connect provides real-time, raw spectrum data to help with difficult-to-diagnose interference problems
  • The Air Quality Index in Cisco CleanAir™ technology provides a snapshot of network performance and the impact of interference

Robust Security and Policy Enforcement

  • Industry’s first access point with non-Wi-Fi detection for off-channel rogues
  • Supports rogue access point detection and detection of denial-of-service attacks
  • Management frame protection detects malicious users and alerts network administrators
  • Set policies to prohibit devices that interfere with the Wi-Fi network or jeopardize network security

Secure Interoperability

  • Controller-based deployment only

Features

  • 802.11n with 4x4 MIMO technology with three spatial streams, which sustains 450 Mbps rates over a greater range for more capacity and reliability than competing access points
  • The modular design provides support for a WSSI Monitor or 802.11ac modules
  • Cisco ClientLink 2.0 technology to improve performance and capacity on mixed-client networks, helping ensure that all 802.11n and 802.11a/g devices operate at the best possible data rates
  • Cisco CleanAir technology, providing proactive, high-speed spectrum intelligence to combat performance problems due to RF interference
  • Limited Lifetime Hardware Warranty, including 10-day advance hardware replacement

Technical Specifications:

Item Specification
Software Cisco Unified Wireless Network Software Release 7.2 or later.
Supported Wireless LAN Controllers Cisco 2500 Series, Cisco Wireless LAN Controller Module (WLCM) on Cisco Services Ready Engine (SRE) for Integrated Services Router Generation 2 (ISR G2), Cisco Wireless Services Module 2 (WiSM2), Cisco 5500 Series, Cisco Flex 7500 Series
Module Options

Wireless Security and Spectrum Intelligence module (Available in Q1 2013)

  • Provides full-spectrum, off-channel scanning for comprehensive wIPS, including Cisco CleanAir technology, rogue detection, context awareness, and radio resource management (RRM) solutions. Scans 2.4- and 5-GHz channels while serving data clients on the base dual-band access point platform

IEEE 802.11ac Wave 1 module (Available in H1 2013)

  • Supports 3x3:3SS (spatial streams), 80-MHz wide channels, 256 quadrature amplitude modulation (QAM), and data rates up to 1.3 Gbps (as part of IEEE 802.11ac Wave 1)
  • Wi-Fi Alliance certification expected in Q1 2013
802.11n Version 2.0 (and Related) Capabilities
  • 4x4 multiple-input multiple-output (MIMO) with three spatial streams
  • Maximal ratio combining (MRC)
  • 802.11n and 802.11a/g beamforming
  • 20- and 40-MHz channels
  • PHY data rates up to 450 Mbps (40-MHz with 5 Ghz)
  • Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
  • 802.11 dynamic frequency selection (DFS)
  • Cyclic shift diversity (CSD) support
Integrated Antenna
  • 2.4 GHz, Gain 4 dBi, internal omnidirectional, horizontal beamwidth 360°
  • 5 GHz, Gain 4 dBi, internal omnidirectional, horizontal beamwidth 360°
External Antenna
(Sold Separately)
  • Certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz)
  • Cisco offers the industry's broadest selection of 802.11n antennas delivering optimal coverage for a variety of deployment scenarios
Interfaces
  • 10/100/1000BASE-T autosensing (RJ-45)
  • Management console port (RJ-45)
Indicators Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
Dimensions
(W x L x H)
Access point (without mounting bracket): 8.69x8.69x2.11in. (22.1x22.1x5.4)
Weight 2.5 lbs (1.13 kg)
Environmental

Cisco Aironet 3600i

  • Nonoperating (storage) temperature: -22 to 158°F (-3 0 to 70°C)
  • Nonoperating (storage) Altitude Test 25°C, 15,000 ft.
  • Operating temperature: 32 to 104°F (0 to 40°C)
  • Operating humidity: 10 to 90% percent (noncondensing)
  • Operating Altitude Test: 40°C, 9843 ft.

Cisco Aironet 3600e

  • Nonoperating (storage) temperature: -22 to 158°F (-3 0 to 70°C)
  • Nonoperating (storage) Altitude Test: 25°C, 15,000 ft.
  • Operating temperature: -4 to 131°F (-20 to 55°C)
  • Operating humidity: 10 to 90 % (noncondensing)
  • Operating Altitude Test: 40°C, 9843 ft.
System Memory
  • 256 MB DRAM
  • 32 MB flash
Input Power Requirements
  • AP2600: 44 to 57 VDC
  • Power Supply and Power Injector: 100 to 240 VAC; 50 to 60 Hz
Powering Options

AP3600 without add-on module

  • 802.3af Ethernet
  • Cisco AP3600 Power Injectors (AIR-PWRINJ4=)
  • Cisco AP3600 Local Power Supply (AIR-PWR-B=)

AP3600 with an add-on module

  • Enhanced Power over Ethernet (PoE), 802.3at PoE+
  • Cisco AP3600 Power Injectors (AIR-PWRINJ4=)
  • Cisco AP3600 Local Power Supply (AIR-PWR-B=)
Power Draw AP3600: 12.95 W
Note: When deployed using a PoE specification, the power drawn from the power sourcing equipment will be higher by some amount dependent on the length of the interconnecting cable. This additional power may be as high as 2.45W, bringing the total system power draw (access point + cabling) to 15.4W with PoE 802.3af as an example.
Warranty Limited Lifetime Hardware Warranty
Compliance
Standards
  • UL 60950-1
  • CAN/CSA-C22.2 No. 60950-1
  • UL 2043
  • IEC 60950-1
  • EN 60950-1
  • EN 50155

Radio approvals:

  • FCC Part 15.247, 15.407
  • RSS-210 (Canada)
  • EN 300.328, EN 301.893 (Europe)
  • ARIB-STD 66 (Japan)
  • ARIB-STD T71 (Japan)
  • EMI and susceptibility (Class B)
  • FCC Part 15.107 and 15.109
  • ICES-003 (Canada)
  • VCCI (Japan)
  • EN 301.489-1 and -17 (Europe)
  • EN 60601-1-2 EMC requirements for the Medical Directive 93/42/EEC

IEEE Standard:

  • IEEE 802.11a/b/g, IEEE 802.11n, IEEE 802.11h, IEEE 802.11d

Security:

  • 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA
  • 802.1X
  • Advanced Encryption Standards (AES), Temporal Key Integrity Protocol (TKIP)

EAP Type(s):

  • Extensible Authentication Protocol-Transport Layer Security (EAP-TLS)
  • EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2)
  • Protected EAP (PEAP) v0 or EAP-MSCHAPv2
  • Extensible Authentication Protocol-Flexible Authentication via Secure Tunneling (EAP-FAST)
  • PEAPv1 or EAP-Generic Token Card (GTC)
  • EAP-Subscriber Identity Module (SIM)

Multimedia:

  • Wi-Fi Multimedia (WMM)

Other:

  • FCC Bulletin OET-65C
  • ◦ RSS-102

Documentation:

Download the Cisco Aironet 3600 Series Access Point Datasheet (PDF).

Pricing Notes:

Cisco Arionet 3600 Series Access Points
Cisco Aironet 3600i Access Point: Indoor environments with internal antennas
Cisco Aironet 3600i Access Point, Dual-band controller-based 802.11a/g/n
#AIR-CAP3602I-A-K9
List Price: $1,645.00
Our Price: $1,175.00
Cisco Aironet 3600i Access Point, Dual-band controller-based 802.11a/g/n, 10 pack
#AIR-CAP3602I-AK910
List Price: $16,450.00
Our Price: $11,648.00
Cisco Aironet 3600e Access Point: Indoor, challenging environments with external antennas
Cisco Aironet 3600e Access Point, Dual-band controller-based 802.11a/g/n
Note:
*Antennas sold separately, click here to view available antennas.
#AIR-CAP3602E-A-K9
List Price: $1,745.00
Our Price: $1,242.00
Cisco Aironet 3600e Access Point, Dual-band controller-based 802.11a/g/n, 10 pack
Note:
*Antennas sold separately, click here to view available antennas.
#AIR-CAP3602E-AK910
List Price: $17,450.00
Our Price: $12,356.00
