Cisco Aironet 2700 Series Access Point
802.11ac Performance for Small, Medium Networks

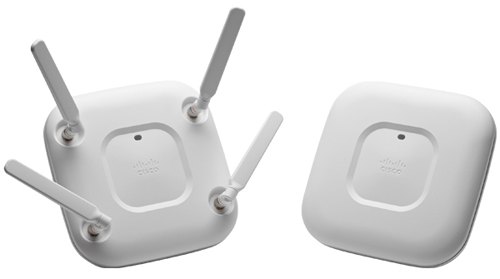

Cisco Aironet 2700 Series Access Point

Cisco Arionet 2700 Series Access Points
Cisco Aironet 2700i Access Point: Indoor environments, with internal antennas
Cisco Aironet 2700i Access Point, Dual-Band, Controller-Based 802.11a/g/n/ac
#AIR-CAP2702I-A-K9
List Price: $1,095.00
Our Price: $626.00
Cisco Aironet 2700e Access Point: Indoor, challenging environments, with external antennas
Cisco Aironet 2700e Access Point, Dual-Band Controller-Based 802.11a/g/n/ac
Note:
*Antennas sold separately, click here to view available antennas.
#AIR-CAP2702E-A-K9
List Price: $1,195.00
Our Price: $683.00

Click here for more options and pricing!

Overview:

The Cisco® Aironet® 2700 Series of Wi-Fi access points (APs) delivers industry-leading 802.11ac performance at a price point ideal for plugging capacity and coverage gaps in dense indoor environments. The Aironet 2700 Series extends 802.11ac speed and features to a new generation of smartphones, tablets, and high-performance laptops now shipping with the faster, 802.11ac Wi-Fi radios.

The Aironet 2700 series supports 802.11ac “Wave 1” In its first implementation, providing a theoretical connection rate of up to 1.3 Gbps. That’s roughly triple the rates offered by today’s high-end 802.11n APs. The boost helps you stay ahead of the performance and bandwidth expectations of today’s mobile worker, who usually uses multiple Wi-Fi devices instead of just one. As such, users are adding proportionally larger traffic loads to the wireless LAN, which has outpaced Ethernet as the default enterprise access network.

High Density Experience (HD Experience)

Building on the Cisco Aironet heritage of RF excellence, the 2700 Series APs run on a purpose-built, innovative chipset with a best-in-class RF architecture. This chipset provides a high-density experience for enterprise networks designed for mission-critical, high-performance applications. The 2700 is a component of a Cisco series of flagship, 802.11ac-enabled APs that delivers a robust mobility experience based on the following product features:

  • 802.11ac with 3x4 multiple-input multiple-output (MIMO) technology supporting three spatial streams. This architecture offers a sustained 1.3-Gbps rates over a greater range for more capacity and reliability than competing APs.
  • Cross-AP Noise Reduction, a Cisco innovation that enables APs to intelligently collaborate in real time about RF conditions so that users connect with optimized signal quality and performance.
  • Optimized AP Roaming to ensure that client devices associate with the AP in their coverage range that offers the fastest data rate available.
  • Cisco ClientLink 3.0 technology to improve downlink performance to all mobile devices, including one-, two-, and three-spatial-stream devices on 802.11ac. At the same time, the technology improves battery life on mobile devices.
  • Cisco CleanAir technology enhanced with 80MHz channel support. CleanAir delivers proactive, high-speed spectrum intelligence across 20-, 40-, and 80-MHz-wide channels to combat performance problems due to wireless interference.
  • MIMO equalization capabilities, which optimize uplink performance and reliability by reducing the impact of signal fade.

The Cisco Aironet 2700 Series sustains higher-speed connections farther from the AP than competing solutions. The result is up to three times greater availability of 1.3-Gbps rates in the Cisco environment for optimum mobile device performance and user experiences.

Cisco also offers the industry's broadest selection of 802.11n and 802.11ac antennas, delivering optimal coverage to different deployment scenarios.

Scalability

The Cisco Aironet 2700 Series is a component of the Cisco Unified Wireless Network, a foundation for operating both wired and wireless LANs in an integrated manner. The Unified Wireless Network can scale to as many as 18,000 APs with full Layer-3 mobility across locations on the enterprise campus, in branch offices, and at remote sites. The Cisco Unified Wireless Network delivers highly secure access to mobility services and applications. It offers the lowest total cost of ownership (TCO) and investment protection by integrating smoothly with existing wired networks.

Features:

Cisco Aironet 2702i Access Point

  • Sleek design with internal antennas
  • Ideal for office environments
  • Classify over 20 different types of interference, including non-Wi-Fi interference, within 5 to 30 seconds
  • Automatic remedial action and less manual intervention
  • UL 2043 plenum−rated for above-ceiling installation or for suspending from drop ceilings

Cisco Aironet 2702e Access Points

  • Rugged metal housing and extended operating temperature
  • Ideal for factories, warehouses, and other indoor industrial environments
  • Versatile RF coverage with external antennas
  • UL 2043 plenum-rated for above-ceiling installation or for suspending from drop ceilings
  • Classification of over 20 different types of interference, including non-Wi-Fi interference, within 5 to 30 seconds
  • Automatic remedial action and less manual intervention

Troubleshooting Forensics for Faster Interference Resolution and Proactive Action

  • Historic interference information for back-in-time analysis and faster problem solving
  • 24x7 monitoring with remote access for reduced travel and speedier resolution
  • Air quality index in Cisco CleanAir® technology provides a snapshot of network performance and the impact of interference

Robust Security and Policy Enforcement

  • Industry's first AP with non-Wi-Fi detection for off-channel rogues
  • Supports rogue AP detection and detection of denial-of-service attacks
  • Management frame protection detects malicious users and alerts network administrators
  • Enables policies to prohibit devices that interfere with the Wi-Fi network or jeopardize network security

Secure Interoperability

  • Controller-based deployment and standalone deployments

Technical Specifications:

Item Specification
Software Cisco Unified Wireless Network Software Release 7.6MR2 or later
Supported Wireless LAN Controllers
  • Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst ® 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex ® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco Virtual Wireless Controller
  • Cisco 5760 Wireless LAN Controller, Cisco Catalyst 3850 Series Switches, Cisco Catalyst 3650 Series Switches
802.11n Version 2.0 (and Related) Capabilities
  • 3x4 MIMO with three spatial streams
  • Maximal ratio combining (MRC)
  • 802.11n and 802.11a/g beamforming
  • 20- and 40-MHz channels
  • PHY data rates up to 450 Mbps (40 MHz with 5 GHz)
  • Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
  • 802.11 dynamic frequency selection (DFS)
  • Cyclic shift diversity (CSD) support
802.11ac Wave 1 capabilities
  • 3x4 MIMO with three spatial streams
  • MRC
  • 802.11ac beamforming
  • 20-, 40-, and 80-MHz channels
  • PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz)
  • Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
  • 802.11 DFS
  • CSD support
Integrated Antenna
  • 2.4 GHz, Gain 4 dBi, internal omnidirectional, horizontal beamwidth 360°
  • 5 GHz, Gain 6 dBi, internal omnidirectional, horizontal beamwidth 360°
External Antenna
(Sold Separately)
  • Certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz)
  • Cisco offers the industry's broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios
Interfaces
  • 2x10/100/1000BASE-T autosensing (RJ-45)
  • Management console port (RJ-45)
Indicators Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
Dimensions
(W x L x H)
Access point (without mounting bracket): 8.69 x 8.69 x 1.99 in. (22.1 x 22.1 x 5.1 cm)
Weight 2.2 lb (1.0 kg)
Environmental

Cisco Aironet 2702i

  • Nonoperating (storage) temperature: −22° to 158°F (-30° to 70°C)
  • Nonoperating (storage) altitude test: 25˚C, 15,000 ft.
  • Operating temperature: 32° to 104°F (0° to 40°C)
  • Operating humidity: 10% to 90% percent (noncondensing)
  • Operating altitude test: 40˚C, 9843 ft.

Cisco Aironet 2700e

  • Nonoperating (storage) temperature: −22° to 158°F (-30° to 70°C)
  • Nonoperating (storage) altitude test: 25˚C, 15,000 ft.
  • Operating temperature: −4° to 122°F (-20° to 50°C)
  • Operating humidity: 10% to 90% (noncondensing)
  • Operating altitude test: 40˚C, 9843 ft.
System Memory
  • 512 MB DRAM
  • 64 MB flash
Input Power Requirements
  • AP2700: 44 to 57 VDC
  • Power Supply and Power Injector: 100 to 240 VAC; 50 to 60 Hz
Power draw AP2700: 15W
Note: When deployed using a Power over Ethernet (PoE) specification, the power drawn from the power sourcing equipment will be higher by some amount dependent on the length of the interconnecting cable.
Powering options
  • 802.3at PoE+
  • Enhanced PoE
  • Cisco AP2700 power injectors (AIR-PWRINJ4=)
  • Cisco AP2700 local power supply (AIR-PWR-B=)

Note: If 802.3af PoE is the source of power, the access point will dynamically shift from 3x4 to 3x3 and come up underPoE.

Warranty Limited Lifetime Hardware Warranty
Compliance
Standards
  • UL 60950-1
  • CAN/CSA-C22.2 No. 60950-1
  • UL 2043
  • IEC 60950-1
  • EN 60950-1
  • EN 50155

Radio approvals:

  • FCC Part 15.247, 15.407
  • RSS-210 (Canada)
  • EN 300.328, EN 301.893 (Europe)
  • ARIB-STD 66 (Japan)
  • ARIB-STD T71 (Japan)
  • EMI and susceptibility (Class B)
  • FCC Part 15.107 and 15.109
  • ICES-003 (Canada)
  • VCCI (Japan)
  • EN 301.489-1 and -17 (Europe)
  • EN 60601-1-2 EMC requirements for the Medical Directive 93/42/EEC

IEEE Standard:

  • IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d
  • IEEE 802.11ac Draft 5

Security:

  • 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA
  • 802.1X
  • Advanced Encryption Standards (AES), Temporal Key Integrity Protocol (TKIP)

EAP Type(s):

  • Extensible Authentication Protocol-Transport Layer Security (EAP-TLS)
  • EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2)
  • Protected EAP (PEAP) v0 or EAP-MSCHAPv2
  • Extensible Authentication Protocol-Flexible Authentication via Secure Tunneling (EAP-FAST)
  • PEAPv1 or EAP-Generic Token Card (GTC)
  • EAP-Subscriber Identity Module (SIM)

Multimedia:

  • Wi-Fi Multimedia (WMM)

Other:

  • FCC Bulletin OET-65C
  • ◦ RSS-102

Documentation:

Download the Cisco Aironet 2700 Series Access Point Datasheet (PDF).

Pricing Notes:

Cisco Arionet 2700 Series Access Points
Cisco Aironet 2700i Access Point: Indoor environments, with internal antennas
Cisco Aironet 2700i Access Point, Dual-Band, Controller-Based 802.11a/g/n/ac
#AIR-CAP2702I-A-K9
List Price: $1,095.00
Our Price: $626.00
Cisco Aironet 2700e Access Point: Indoor, challenging environments, with external antennas
Cisco Aironet 2700e Access Point, Dual-Band Controller-Based 802.11a/g/n/ac
Note:
*Antennas sold separately, click here to view available antennas.
#AIR-CAP2702E-A-K9
List Price: $1,195.00
Our Price: $683.00
